Available in 12v 100Ah, 125Ah, 200Ah and 300Ah capacities and 24v 150Ah & 36v 100Ah, the ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

The Enerdrive B-TEC battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC Slimline battery is perfect for camper trailers, 4WD's (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

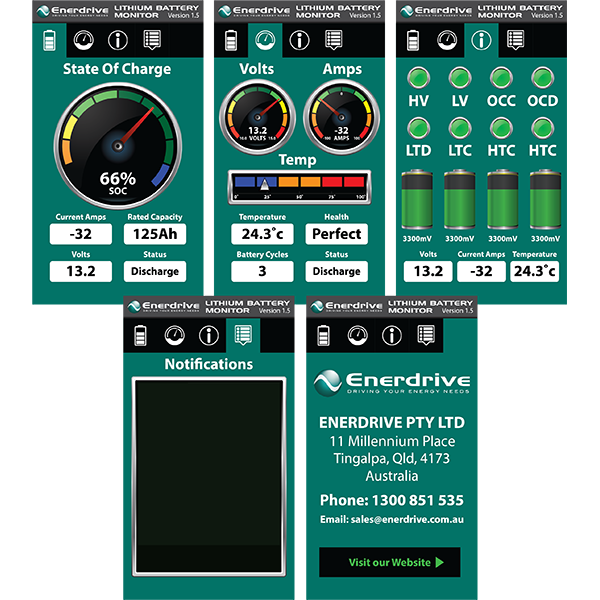

The Enerdrive Enerdrive B-TEC  Slimline battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

  • Battery Capacity
  • Battery Voltage
  • Battery Current (Amps)
  • Battery State of Charge (SOC)
  • Battery State of Health (SOH)
  • Battery Status
  • Individual Cell Voltage
  • Battery Temperature
  • Battery Cycles
  • Battery Alarms
  • Battery Event Information
Model EPL-125BT-12V G2
Nominal Voltage 12.8v
Nominal Capacity 125Ah
Battery Output Voltage Range 11.00 - 14.60V
Maximum Discharge Current 100A@25°C ± 5°C for 30mins
Standby (Float) Voltage 13.50 - 13.80V
Normal Charge Voltage 14.20 - 14.60v
Maximum Charge Current 60A @ 25°C for 30mins
Recommended Charge Current for Maximum Life 20A-60A
Cycle Life (DOD – 80% under controlled conditions) ≥ 2000 Cycles
Length (mm) 318mm
Width (mm) 165mm
Height (mm) 232mm
Weight (kg) 15.5kg
Self-discharge Rate ≤ 3% Per Month

Please Note; The B-TEC Slimline battery is capable to be paralleled to a second B-TEC battery of the same size. For maximum performance and lifespan of your B-TEC Slimline battery, no more than 2 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single batteries BMS.

The 100Ah Slimline battery is able to accept a maximum inverter capacity of 1000W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

Please note B-TEC batteries must not be installed:
• In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.





SKU BATENBTEC12125
Barcode # EPL-125BT-12V G2
Brand Enerdrive
Shipping Weight 16.0000kg
