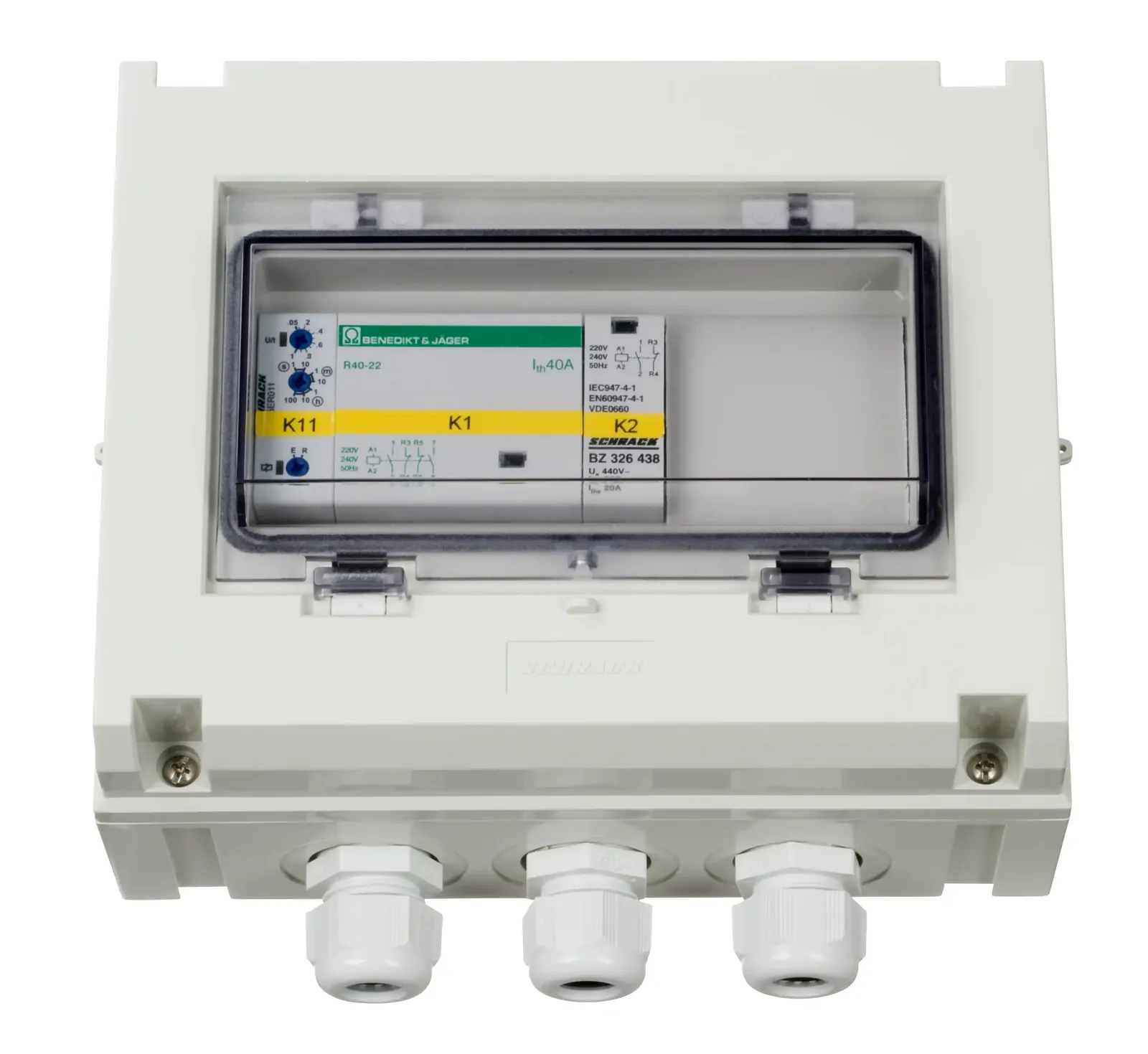

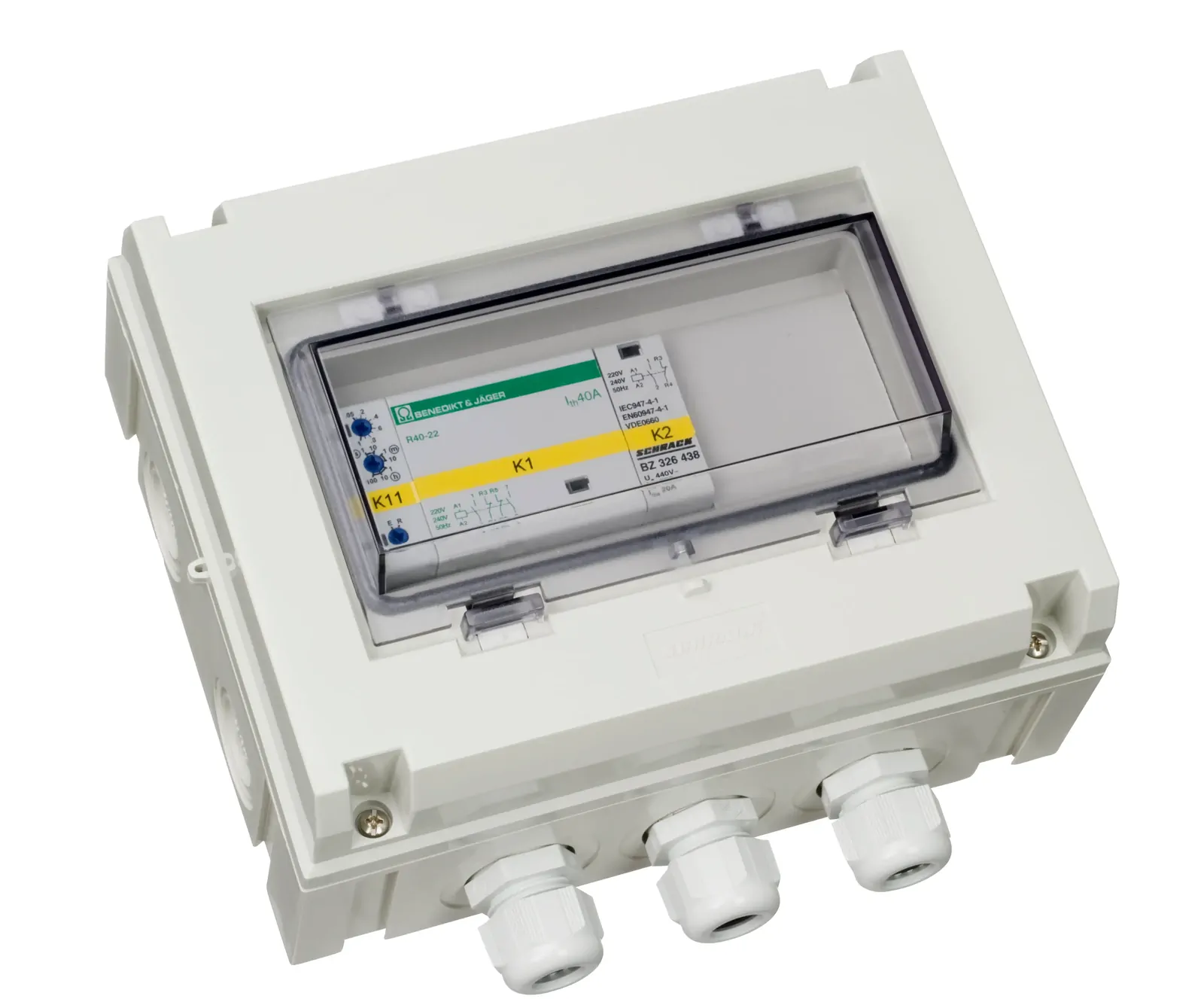

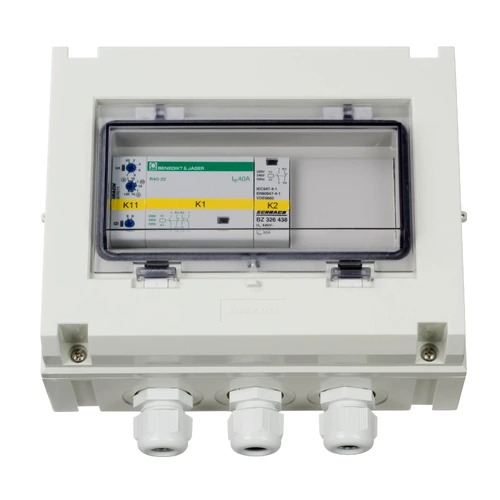

The VE Transfer Switch is designed to take over automatic switching between different power sources. For example, between a
generator and the shore, between an inverter and a generator, or between an inverter and the shore.

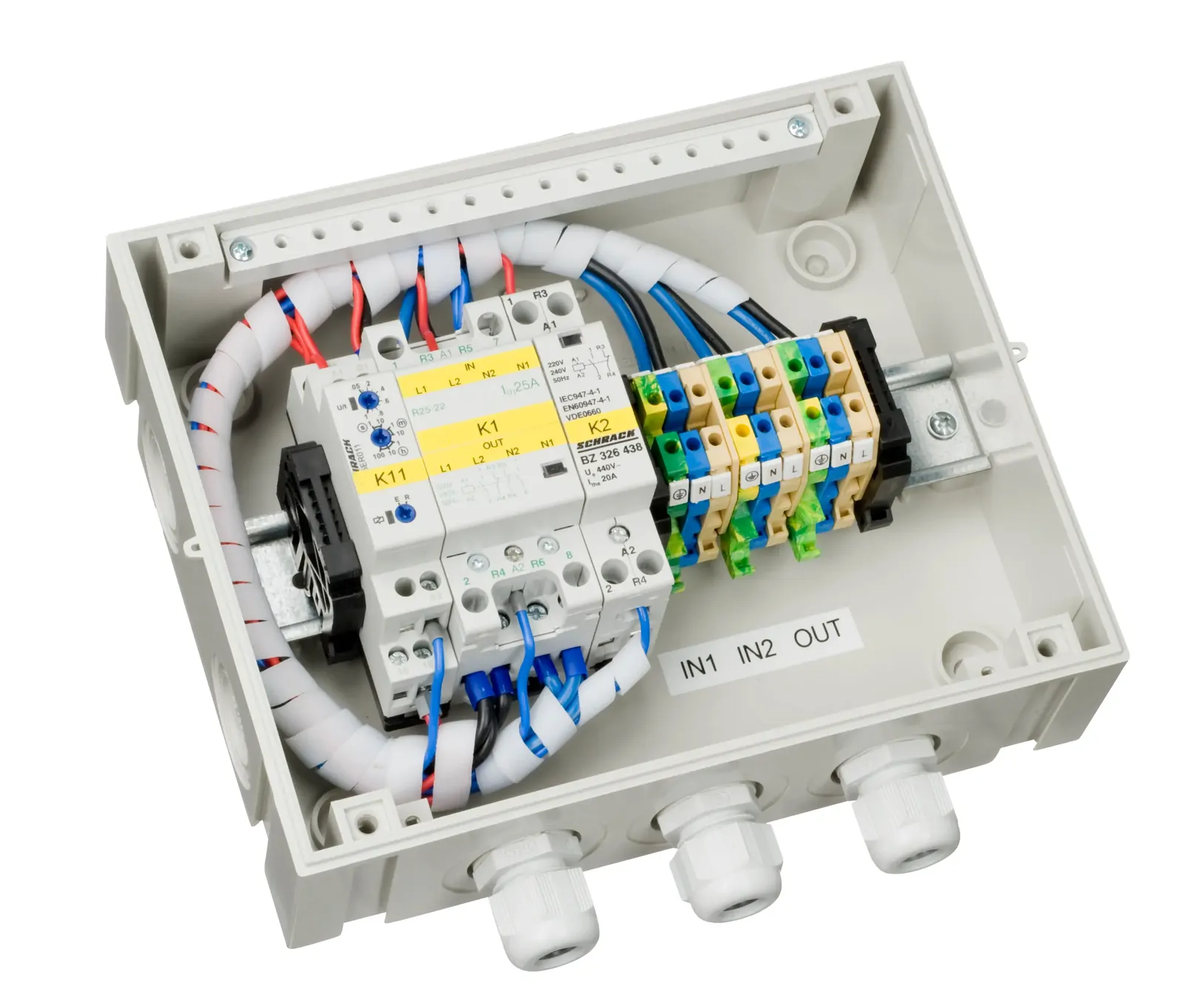

It has two inputs and one output and automatically transfers the available AC power from one of the inputs to the output. It can be
used with any Victron Energy inverter, providing the inverter power rating does not exceed the transfer switch power rating.

The transfer switch can also be used to allow a MultiPlus inverter/charger to connect to two different AC sources, like shore power
and a generator, instead of only being able to connect to a single AC source.

VE Transfer Switch 5kVA (COS 0) 10kVA (COS 0)
Nominal voltage 200 - 250Vac, single-phase
Nominal frequency 50 – 60Hz
Nominal current input 1 20A 40A
Nominal current input 2 20A 40A
Nominal output current 20A 40A
Maximum electromotor (air-conditioner) power 1.3kW 8kW
Power consumption input 1 6VA 6VA
Power consumption input 2 0VA 0VA
Transfer time by closing contacts 10 - 20ms 10 - 20ms
Transfer time by opening contacts 5 - 20ms 5 - 20ms
Contacts delay input 1 Approximately 10s (adjustable)
Auxiliary contact 200 - 240Vac, 20A, cos phi = 1
Operating temperature -5°C to + 60°C
Maximum humidity (non-condensing) 95%
Miniature circuit breaker (MCB) Not included - installation dependent
Earth leakage breakers (RCD) Not included - installation dependent
Protection category IP 54
Colour RAL 7035
Dimensions (mm) 175 x 215 x 120 175 x 215 x 120
Weight (kg) 1.85 1.65



SKU COS230502100
Barcode # 8719076022091
Brand Victron
Shipping Weight 2.0000kg
Shipping Width 0.235m
Shipping Height 0.130m
Shipping Length 0.220m
Shipping Cubic 0.006721000m3
