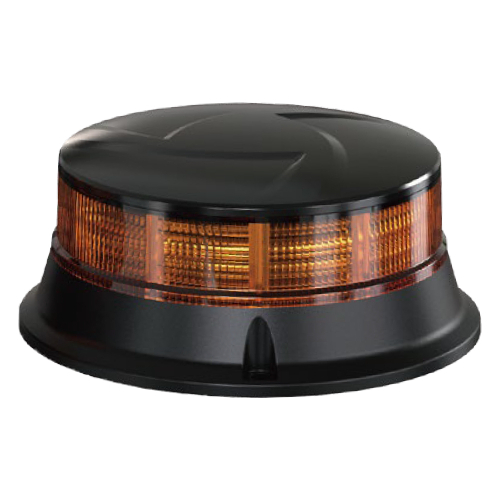

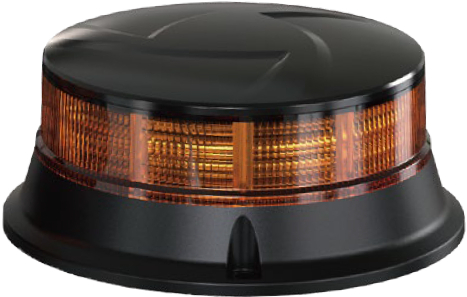

The BE325 LED Beacon series is an ultra high-quality range featuring Class 1 level light output for total compliance in transport or site applications. The ultrasonically sealed IP67 lens and body design ensures total protection from water or fine dust. Built for heavy-duty applications, the BE325 series is available in various mounting options as well as a lithium self-powered portable option.

Features

  • 10-30V Varivolt®
  • Class 1 high specification light output / CISPR 25
  • IP67 Ultrasonically sealed lens and base
  • 7 Programable flash modes / 4 rotation modes / 3 flashing modes
  • Available in Stud, Pole or Magnetic mount
  • Portable lithium battery power model option with remote control
Applications Construction / Agriculture / Breakdown / Emergency / Forklifts
Functions Amber LED beacon
Voltage 10-30V
Wattage ST/MG/PL: 19W
PO: 8.4W
Mounting Stud mount / magnetic base / DIN Pole mount/ Portable mount
Lens Polycarbonate
Environmental IP67
Rotating modes Slow anticlockwise rotation (480ms)
Slow clockwise rotation (480ms)
Quick anticlockwise rotation (300ms)
Quick clockwise rotation (300ms
Flash pattern Single flash
Double flash
Triple flash























  • BE325A-ST - LED Beacon 10-30V Stud Mount (108x47mm) Emarked (ECE R65 Class 1) / ECE R10 (EMI Compliant)
  • BE325A-MG - LED Beacon 10-30V Magnetic Mount (108x54mm) Emarked (ECE R65 Class 1) / ECE R10 (EMI Compliant)
  • BE325A-PL - LED Beacon 10-30V DIN Pole Mount (92x144mm) Emarked (ECE R65 Class 1) / ECE R10 (EMI Compliant)
  • BE325A-PO - LED Beacon 10-30V Portable / Magnetic (130x75mm) Emarked (ECE R65 Class 1) / ECE R10 (EMI Compliant)















SKU 9414793037272
Barcode # BE325A-ST
Brand Whitevision
Shipping Weight 0.4500kg
Shipping Width 0.115m
Shipping Height 0.140m
Shipping Length 0.115m
Shipping Cubic 0.001851500m3
