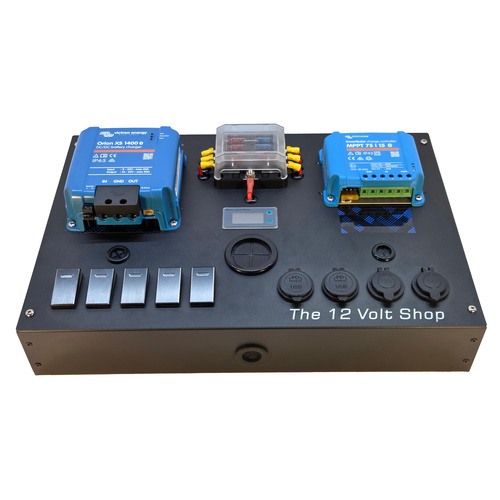

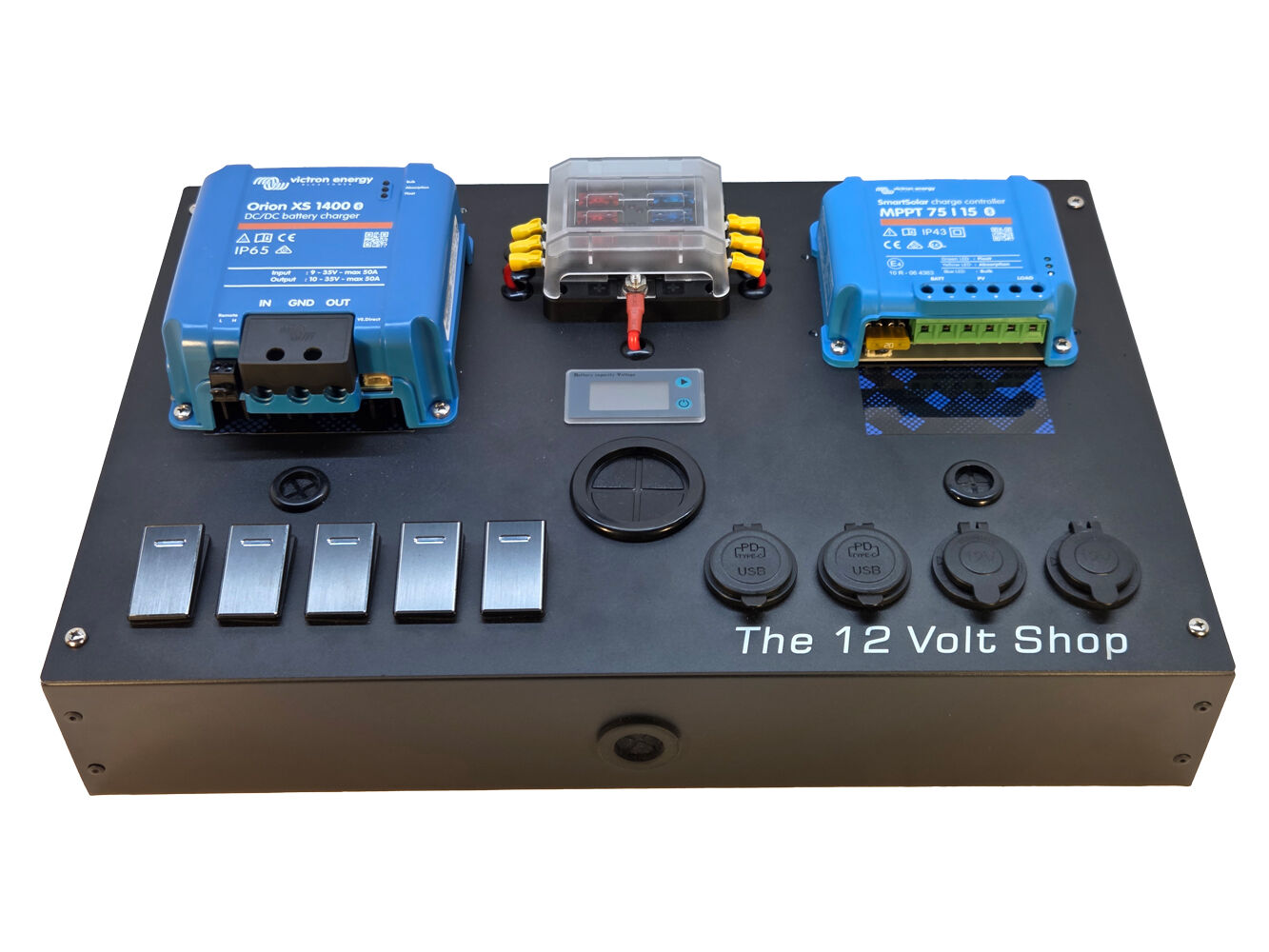

Control Hub with Victron Orion XS1400 & SmartSolar MPPT 75/15

Premium 12/24V Pre-Wired Control Hub with Victron Orion XS 50A + SmartSolar MPPT 75/15

The gold standard in efficiency. This hub is pre-wired with the new Victron Orion XS 12/12-50 DC-DC Charger (running cool and efficient) AND a dedicated SmartSolar MPPT 75/15. By separating the chargers, you get optimized solar harvesting and 50A alternator charging. Note: This unit features dedicated Red (Vehicle) and Black (Solar) Anderson inputs for foolproof connection. 5 Year Warranty on the Victron Orion XS1400 Charger & SmartSolar MPPT 75/15 Solar Controller

Control Hub with Victron Orion XS1400, SmartSolar MPPT 75/15 & 300A SmartShunt

Premium 12/24V Pre-Wired Control Hub with Victron Orion XS + SmartSolar MPPT 75/15 + 300A SmartShunt

Complete high-power integration. Features the Orion XS 1400, SmartSolar MPPT 75/15, and 300A SmartShunt for comprehensive power management and monitoring. By separating the chargers, you get optimized solar harvesting and 50A alternator charging. Note: This unit features dedicated Red (Vehicle) and Black (Solar) Anderson inputs for foolproof connection. 5 Year Warranty on the Victron Orion XS1400 Charger, SmartSolar MPPT 75/15 Solar Controller & 300A SmartShunt

Control Hub with Victron Orion XS1400, SmartSolar MPPT 75/15 & 500A SmartShunt

Premium 12/24V Pre-Wired Control Hub with Victron Orion XS + SmartSolar MPPT 75/15 + 500A SmartShunt

Maximum capacity management. This hub pairs the Orion XS 1400 and MPPT 75/15 with the 500A SmartShunt to handle significant current flow with ease. By separating the chargers, you get optimized solar harvesting and 50A alternator charging. Note: This unit features dedicated Red (Vehicle) and Black (Solar) Anderson inputs for foolproof connection. 5 Year Warranty on the Victron Orion XS1400 Charger, SmartSolar MPPT 75/15 Solar Controller & 500A SmartShunt

Control Hub with Victron Orion XS1400, SmartSolar MPPT 75/15 & BMV-712

Premium 12/24V Pre-Wired Control Hub with Victron Orion XS + SmartSolar MPPT 75/15 + Victron BMV-712 Monitor

Total control on display. This hub features the Orion XS1400, SmartSolar MPPT 75/15, and the BMV-712 with the external screen mounted on the lid. See your voltage and charge status instantly. By separating the chargers, you get optimized solar harvesting and 50A alternator charging. Note: This unit features dedicated Red (Vehicle) and Black (Solar) Anderson inputs for foolproof connection. 5 Year Warranty on the Victron Orion XS1400 Charger, SmartSolar MPPT 75/15 Solar Controller & BMV-712 Smart Battery Monitor

Control Hub with Victron Orion XS1400 & SmartSolar MPPT 100/20

Premium 12/24V Pre-Wired Control Hub with Victron Orion XS 50A + SmartSolar MPPT 100/20

The top-tier power solution. Pre-wired with the Victron Orion XS 1400 and the expanded SmartSolar MPPT 100/20 for larger solar arrays. By separating the chargers, you get optimized solar harvesting and 50A alternator charging. Note: This unit features dedicated Red (Vehicle) and Black (Solar) Anderson inputs for foolproof connection. 5 Year Warranty on the Victron Orion XS1400 Charger & SmartSolar MPPT 100/20 Solar Controller

Control Hub with Victron Orion XS1400, SmartSolar MPPT 100/20 & 300A SmartShunt

Premium 12/24V Pre-Wired Control Hub with Victron Orion XS + SmartSolar MPPT 100/20 + 300A SmartShunt

Sophisticated power handling. Features Orion XS 1400, MPPT 100/20, and the 300A SmartShunt for full Bluetooth telemetry. By separating the chargers, you get optimized solar harvesting and 50A alternator charging. Note: This unit features dedicated Red (Vehicle) and Black (Solar) Anderson inputs for foolproof connection. 5 Year Warranty on the Victron Orion XS1400 Charger, SmartSolar MPPT 100/20 Solar Controller & 300A SmartShunt

Control Hub with Victron Orion XS1400, SmartSolar MPPT 100/20 & 500A SmartShunt

Premium 12/24V Pre-Wired Control Hub with Victron Orion XS + SmartSolar MPPT 100/20 + 500A SmartShunt

Uncompromised capability. This unit includes the Orion XS 1400, MPPT 100/20, and 500A SmartShunt. Ready for the most demanding electrical setups. By separating the chargers, you get optimized solar harvesting and 50A alternator charging. Note: This unit features dedicated Red (Vehicle) and Black (Solar) Anderson inputs for foolproof connection. 5 Year Warranty on the Victron Orion XS1400 Charger, SmartSolar MPPT 100/20 Solar Controller & 500A SmartShunt

Control Hub with Victron Orion XS1400, SmartSolar MPPT 100/20 & BMV-712

Premium 12/24V Pre-Wired Control Hub with Victron Orion XS + SmartSolar MPPT 100/20 + Victron BMV-712 Monitor

The ultimate in power visibility. Features Orion XS 1400, MPPT 100/20, and the BMV-712 Monitor for external data display and full system control. By separating the chargers, you get optimized solar harvesting and 50A alternator charging. Note: This unit features dedicated Red (Vehicle) and Black (Solar) Anderson inputs for foolproof connection. 5 Year Warranty on the Victron Orion XS1400 Charger, SmartSolar MPPT 100/20 Solar Controller & BMV-712 Smart Battery Monitor

The Heart of Your Setup. Built in Australia. Built of Iron.

You’ve built your rig to handle the toughest tracks in the country—don't let plastic power boxes let you down. Meet the Premium 12/24V Control Hub, the command centre designed for serious off-grid travel.

Hand-Wired on Home Soil Forget mass-produced imports. This unit is pre-built and pre-wired right here in house, using premium Australian and sourced components. We don’t cut corners because we know you can’t afford downtime in the middle of nowhere.

Indestructible Construction Plastic cracks. We use Powder Coated Iron for the chassis to withstand the corrugated punishment of the outback. Finished with premium Aluminium Fascia Rocker Switches, it looks as good as it performs.

Power at Your Fingertips

This isn’t just a switch panel; it is a complete power distribution center featuring 19 Inputs/Outputs to manage every aspect of your 12V or 24V system.

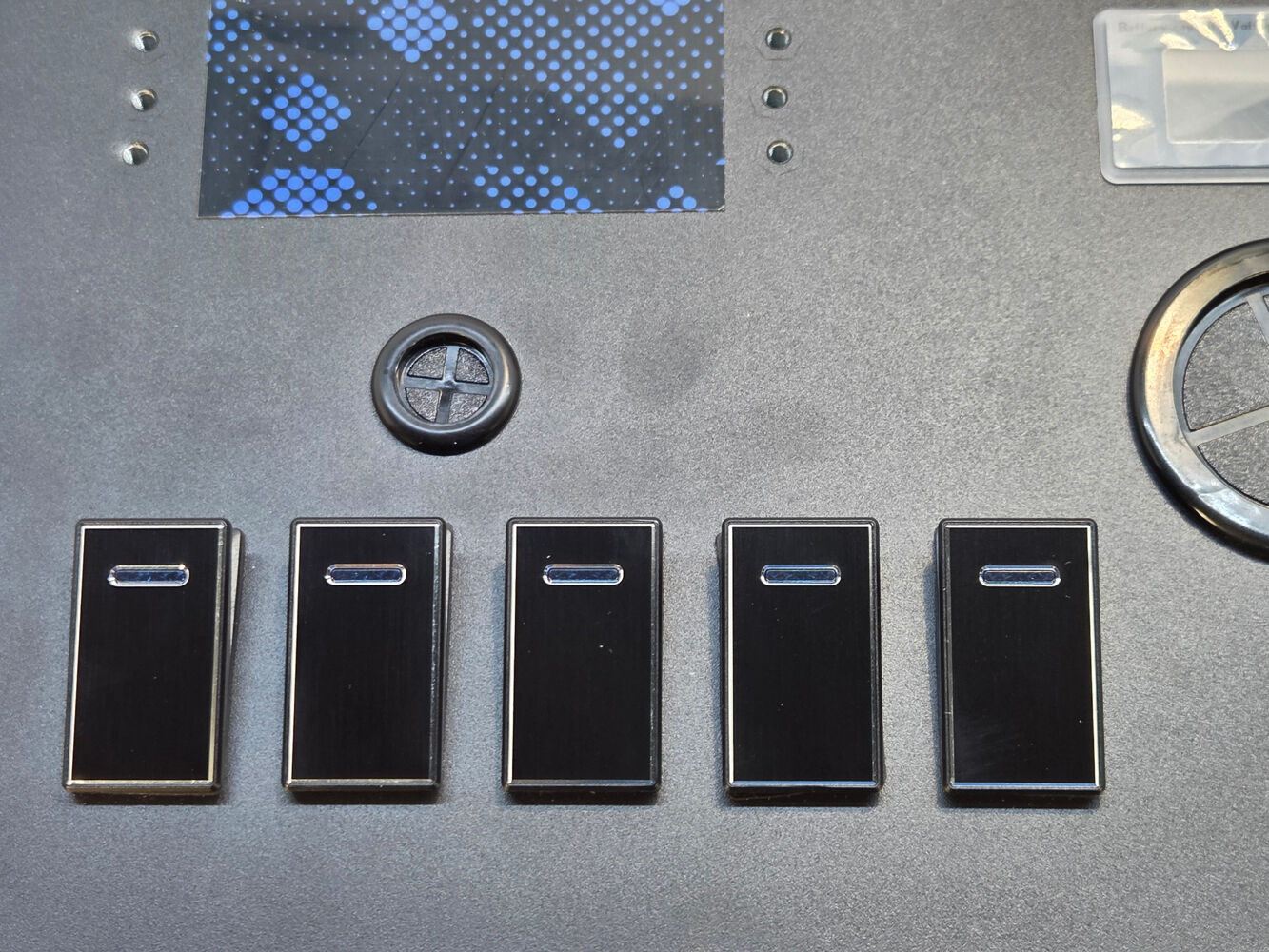

• Premium Switching: 5 x Aluminium Fascia Rocker Switches provide tactical control over your lights, pumps, and fridges.
  • Safety First: 3 switches individually fused at 10A, and 2 switches combined at 15A.
• Universal Connectivity: 2 x Accessory Sockets (Cig sockets) for your standard gear.

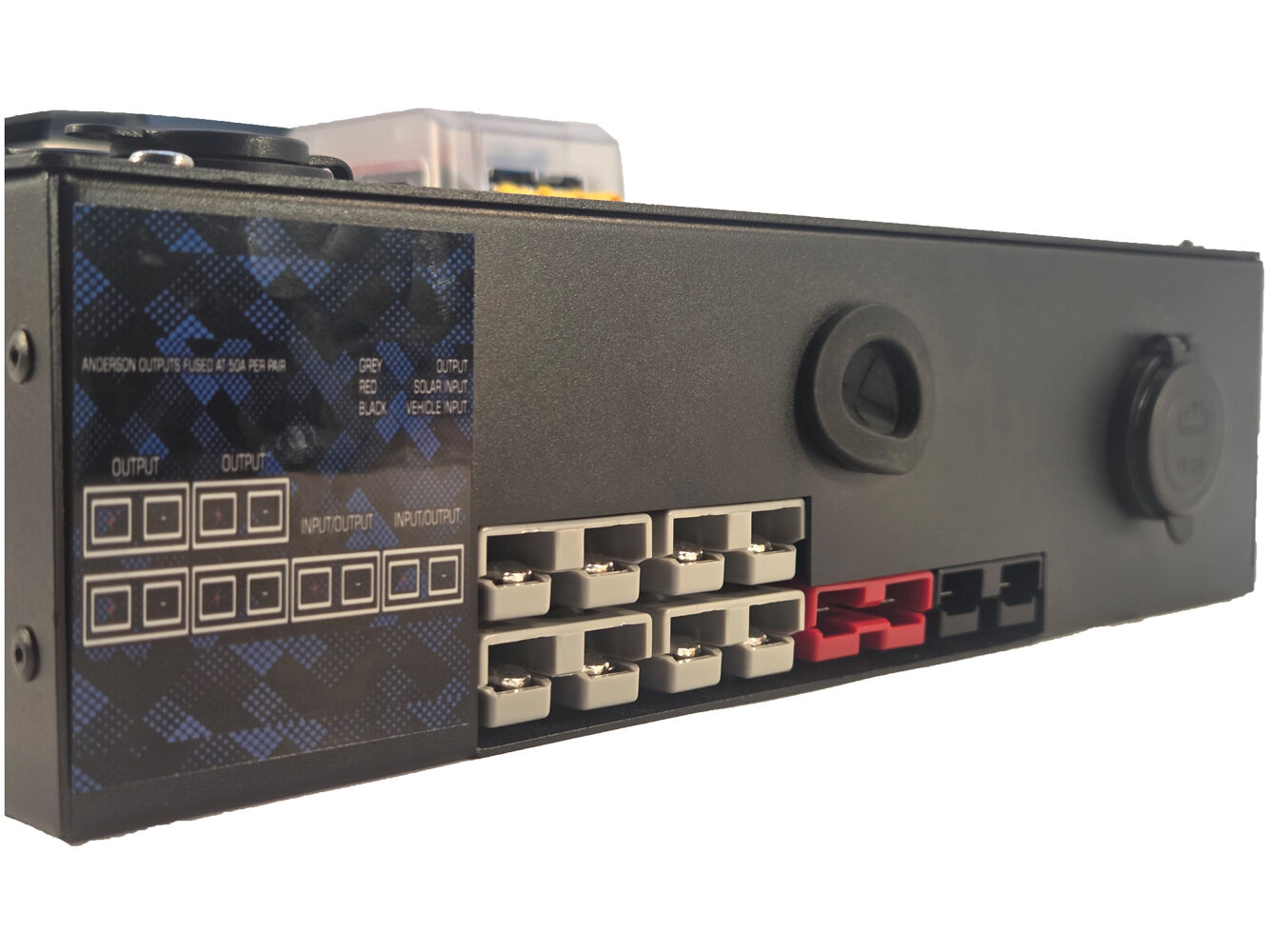

• High-Current I/O: 6 x 50A Grey Anderson plugs handling high-draw appliances with ease.

Smart Config: If DC charging is selected, we swap 2 x Grey plugs for Red & Black Andersons, creating dedicated, fail-safe inputs for Vehicle and Solar power.

Next-Gen Fast Charging (Starlink Ready)

Stay connected wherever the road takes you. We have equipped this hub with the latest PD (Power Delivery) technology.

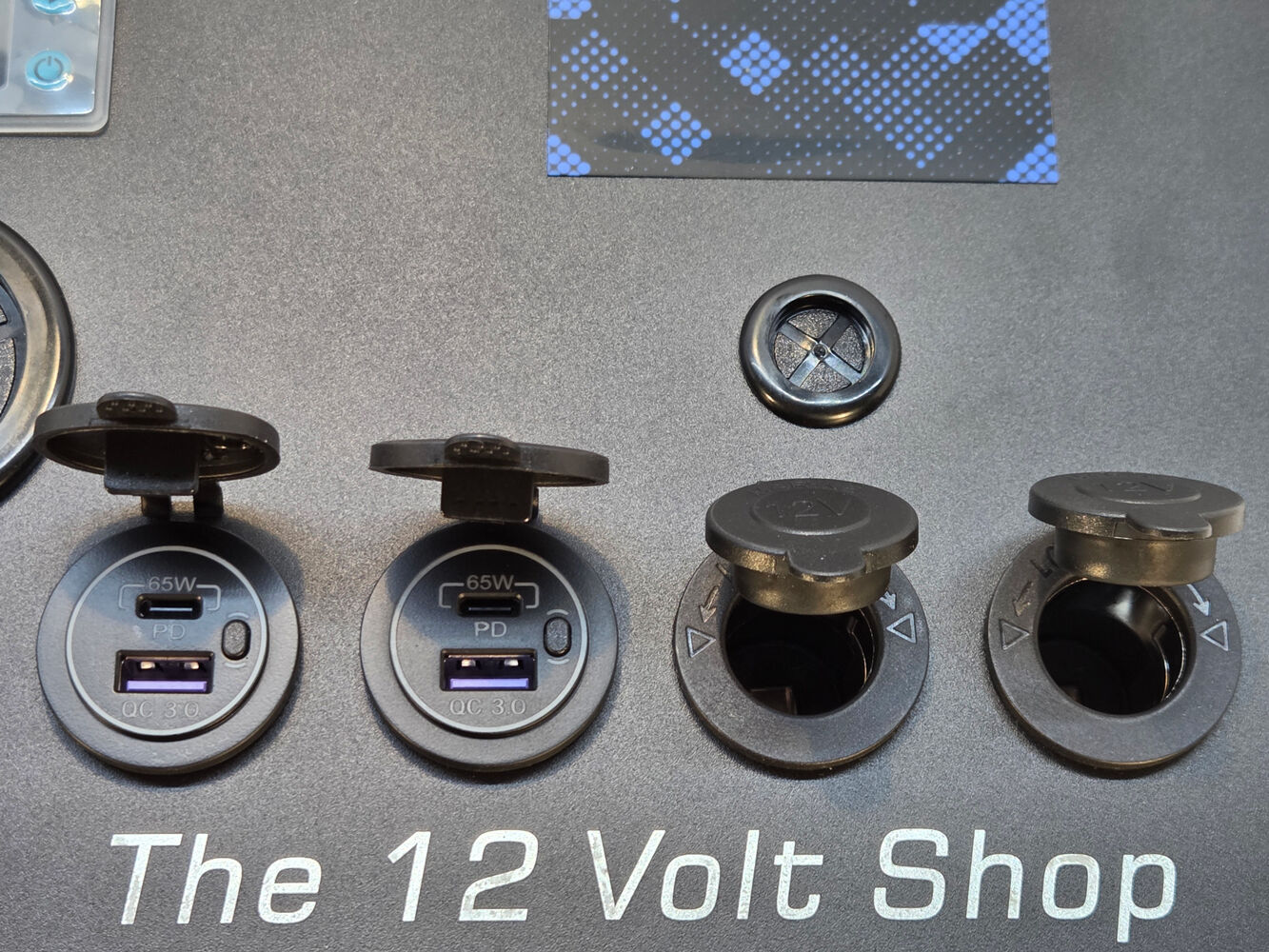

• Standard Fast Charge: 2 x 83W Dual USB-A & USB-C outlets (QC3.0 & PD 65W) to keep phones, tablets, and drones at 100%.

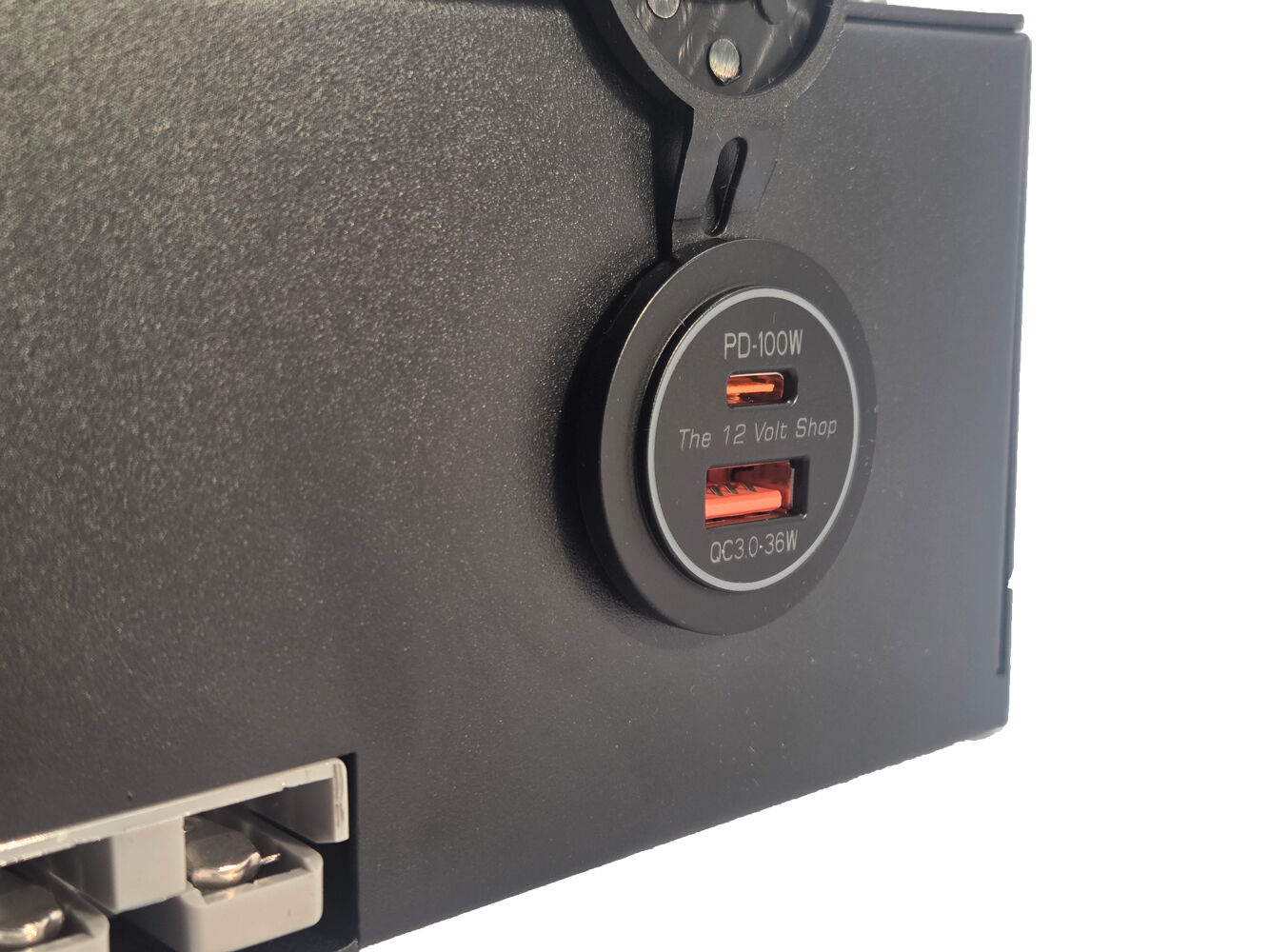

• Starlink Mini Compatible: 1 x Massive 136W Dual USB Outlet. Featuring a 100W QC5.0 PD Port capable of up to 20V/5A.

Why this matters: This dedicated, independently fused port provides enough juice to power the Starlink Mini directly, keeping you online without bulky adapters

Technical Specifications Breakdown

Note on Inverters: If utilizing an inverter, we recommend mounting the shunt externally to facilitate easier cable runs for the heavy-gauge wire required.
