Enhance your off-road adventures with the 12-Gang Bluetooth Switch Panel, offering unparalleled control and customization for all your 12V accessories. This sleek, all-in-one system combines robust physical controls with intuitive Bluetooth app integration, giving you complete command over your lighting and gear.

Features That Conquer Any Terrain

  • Dual Control Mastery: Seamlessly switch between the responsive physical switch panel and the Bluetooth-enabled "Mgroup Light" app. Both methods work in perfect sync, giving you flexibility no matter the situation
  • Programmable Precision: Tailor each of your 12 switches to your exact needs - ideal for everything from light bars to air rides.
  • Ultimate Customization: Personalize your panel to match your vehicle and mood. Choose from 11 vibrant RGB backlight colors and 5 levels of brightness to create your ideal ambiance. Plus, DIY your button icons with images or text for a truly unique setup.

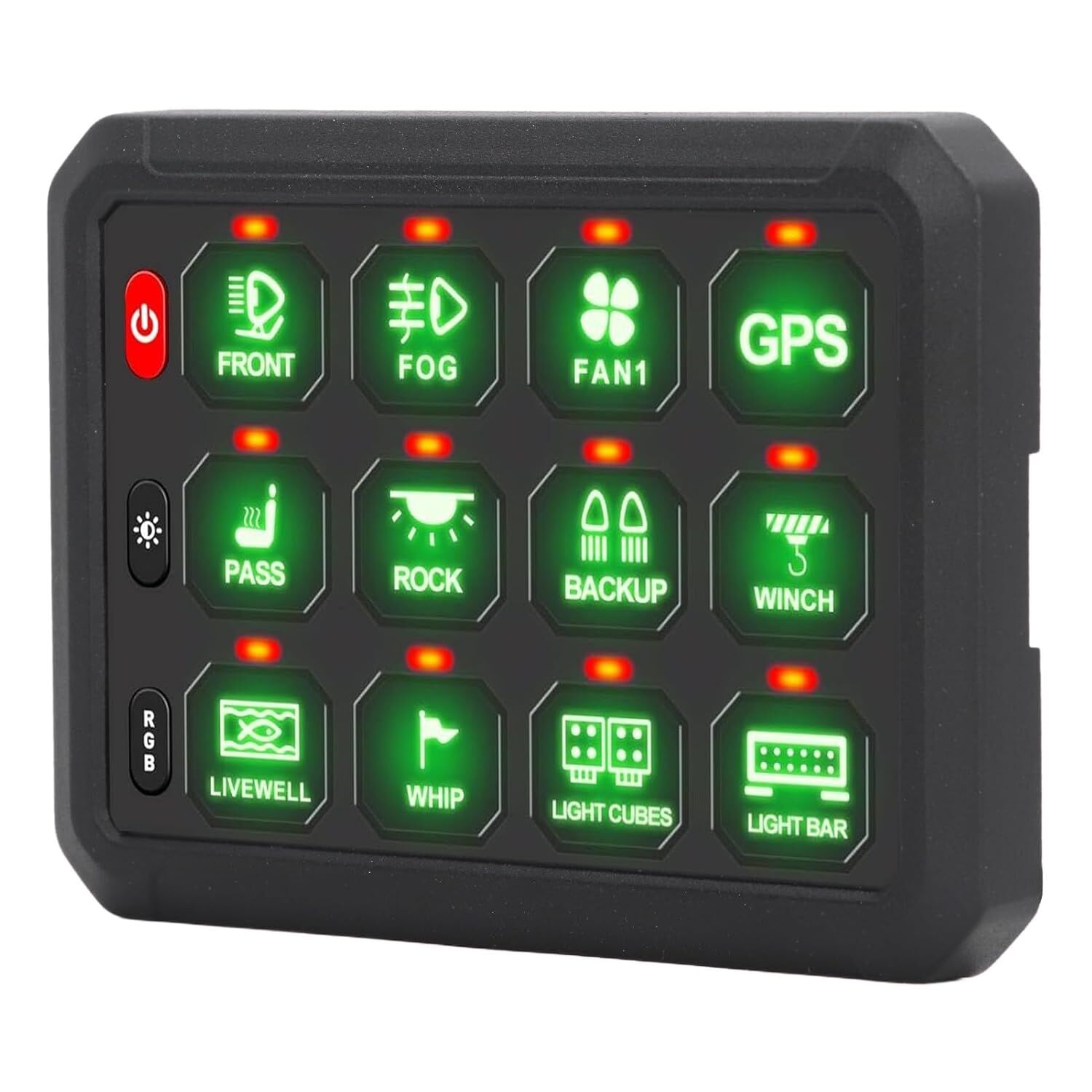

  • Enhanced Tactile Control: Experience superior usability with three upgraded silicone buttons. These include a dedicated ON/OFF switch with memory, brightness adjustment, and RGB color control, designed for intuitive, even blind, operation.
  • Flexible Power & Mounting: Connect your panel via ACC or directly to your battery with an easy-to-use push switch for seamless power management. Install the control box and switch panel either vertically or horizontally to fit your rig perfectly.

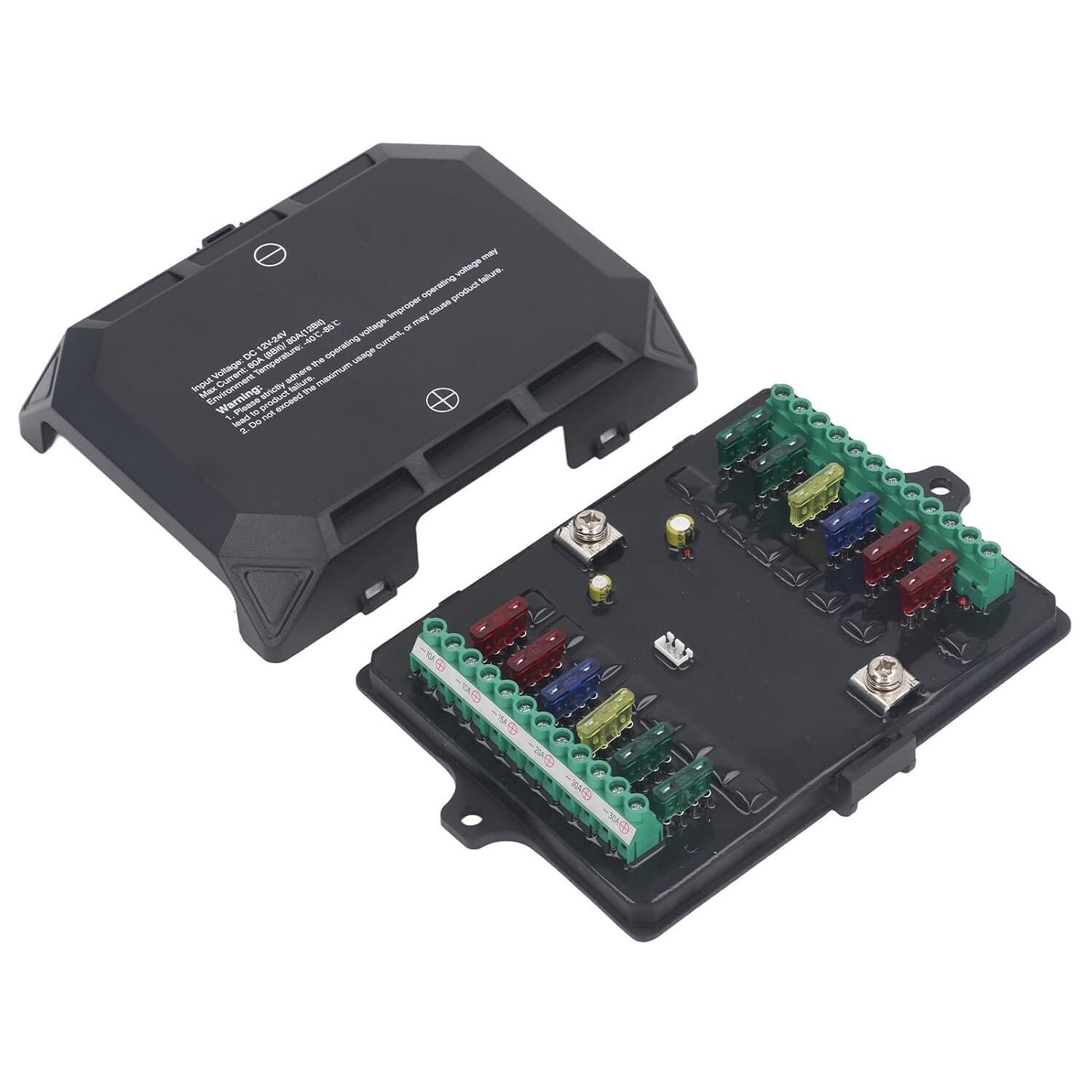

  • Neat & Tidy Wiring: Say goodbye to tangled messes. The integrated Circuit Control Relay System streamlines all your wiring, ensuring a clean and professional installation.
  • Positive Output Design: This panel is engineered with a positive output, simplifying your wiring by allowing negative wires to connect directly to the control box, battery, and car.
  • Ready for Anything: With an IP65 waterproof rating and a sturdy aluminum alloy housing, this panel is built to withstand extreme conditions, from -40°C to +85°C

Technical Specifications

  • Input Voltage: 12V-24V DC
  • Total Max Current: 80A
  • Per Channel Max Current: 30A (2 channels), 20A (2 channels), 15A (2 channels), 10A (2 channels)
  • Max Power Output: 960W at 12V / 1920W at 24V
  • Fuse Protection: Includes a 100A resettable Circuit Breaker and bonus 5 fuses for circuit protection.
  • Safety Features: Low voltage auto-shutoff protection.
  • Certifications: CE certified, ensuring compliance with EU safety standards for market access.

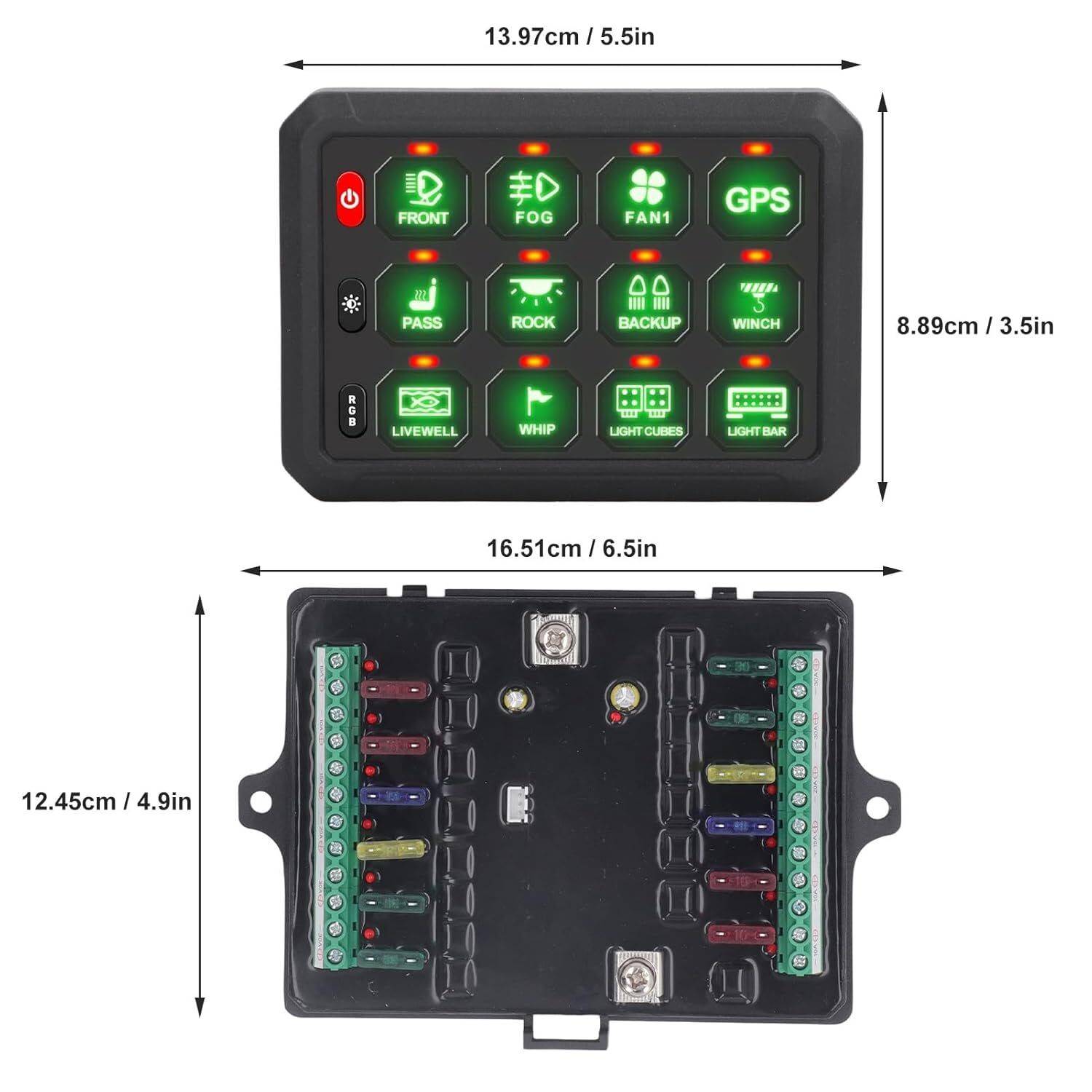

  • Dimensions: 5.5-inch sturdy switch panel (20% larger for enhanced stability).

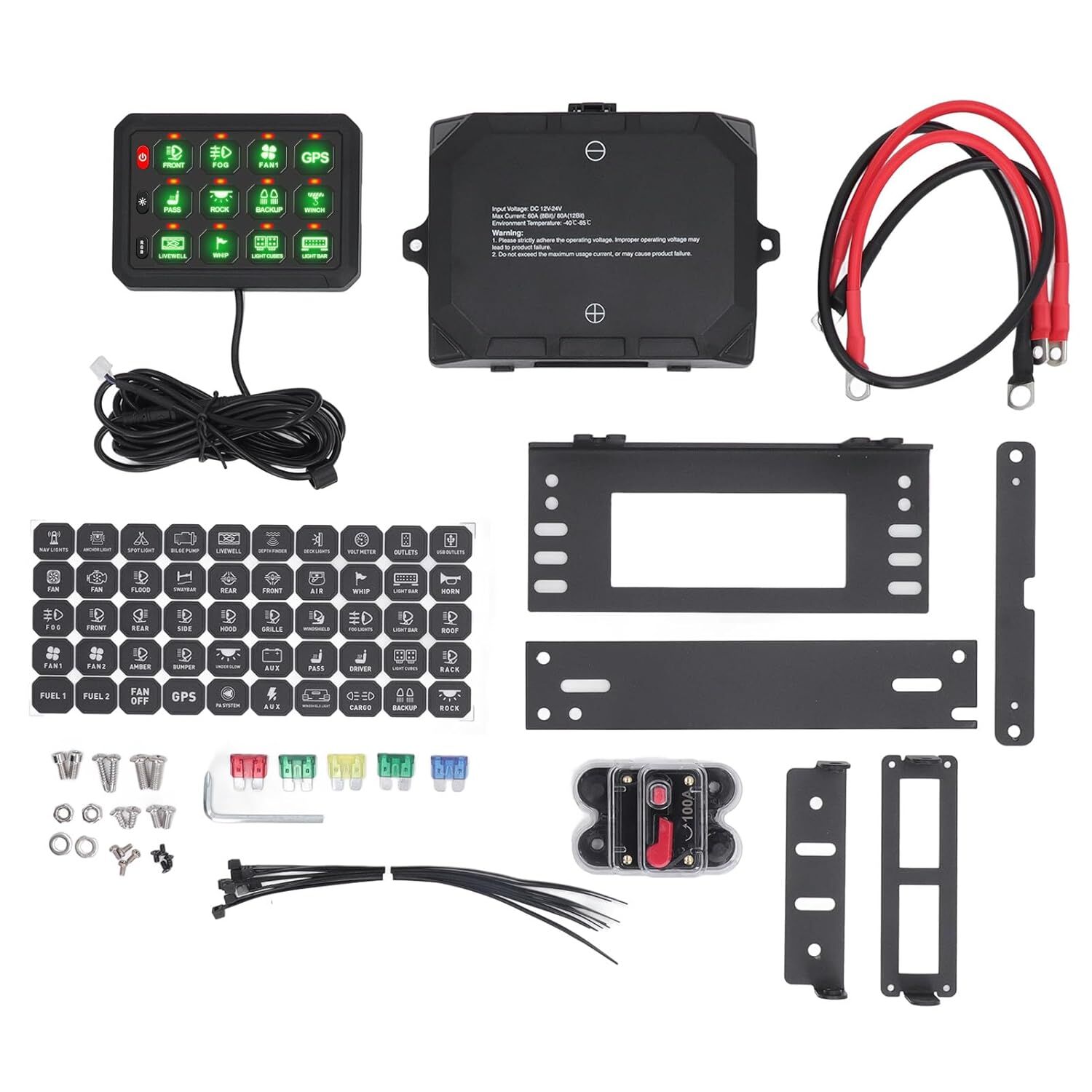

  • Included Components: Switch Control Box, 12-Gang Switch Panel, Mounting Brackets, Wiring Harness, Voltage Protection Breaker, 140 Self-Adhesive Labeling Stickers, Screw Sets.







SKU SWPBT12
Brand 12 Volt Shop
Shipping Weight 2.2200kg
Shipping Width 0.220m
Shipping Height 0.090m
Shipping Length 0.310m
Shipping Cubic 0.006138000m3
