With an Australian manufacturing heritage spanning over 30 years, Austech Wire & Cable has an unsurpassed record of providing cost effective solutions to both national and global organisations.

All Austech Wire & Cable is made from the highest quality Oxygen Free Plain Copper Wire and is RoHS compliant.

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

  • APPLICATIONS: General Purpose Automotive Wiring, Caravan & Trailer Wiring, Road Train Wiring
  • CONDUCTOR: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
  • INSULATION: V90 PVC Insulated to AS/NZS 3808
  • VOLTAGE: AC 50V / DC 120v to AS/NZS 3000:2000

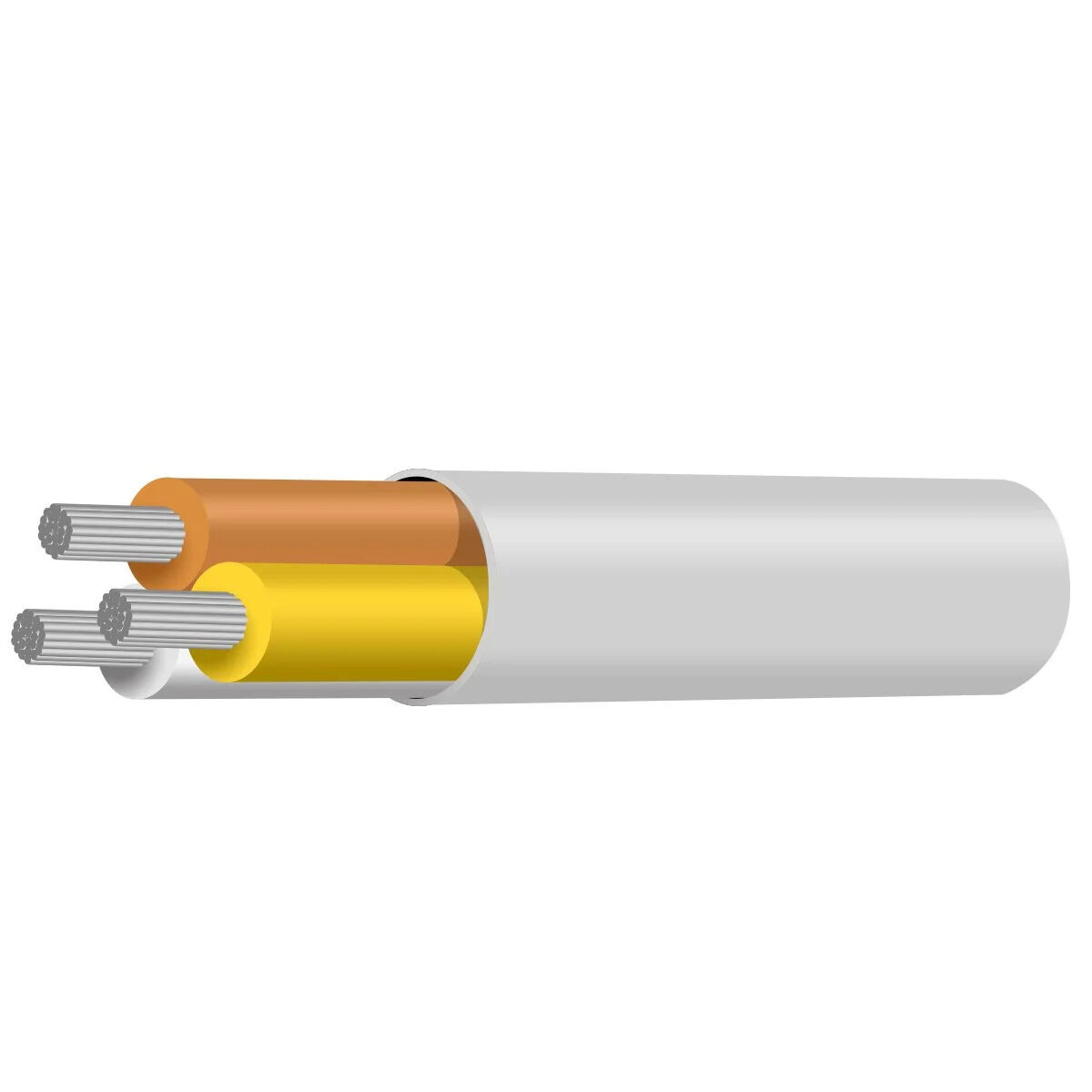

  • SHEATH COLOUR: 3 Core White 5 & 7 Core Black
  • CORE COLOUR:
    • 3 Core: White, Yellow, Brown
    • 5 Core: White, Yellow, Brown, Red, Green
    • 7 Core: White, Yellow, Brown, Red, Green, Black, Blue
  • PACK: Cut to length, 100 metres, other packs by request
Austech Code MTR32603
Tycab Code MTS32603
Nearest AWG 15 AWG
* MM Industry Equivalent 4mm
Strand No. / Size 26/0.30
Nominal Area (mm²) 1.84mm
**AMP Rating @ 30°C 19 A
Insulation Thickness (mm) 0.6mm
Electrical Resistance @ 20°C (ohm/km) 10.65Ω
Nominal O.D. (mm) 6.8mm
Mass (kg/100m) 8.1kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CATIN3CORE4MM
Brand Austech
Shipping Weight 0.8200kg
Shipping Width 0.110m
Shipping Height 0.060m
Shipping Length 0.110m
Shipping Cubic 0.000726000m3
