With an Australian manufacturing heritage spanning over 60 years, Key Tubing & Electrical has an unsurpassed record of providing cost effective solutions to both national and global organisations.

All Key Tubing cable is made from the highest quality Oxygen Free Plain Copper Wire and is RoHS compliant.

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

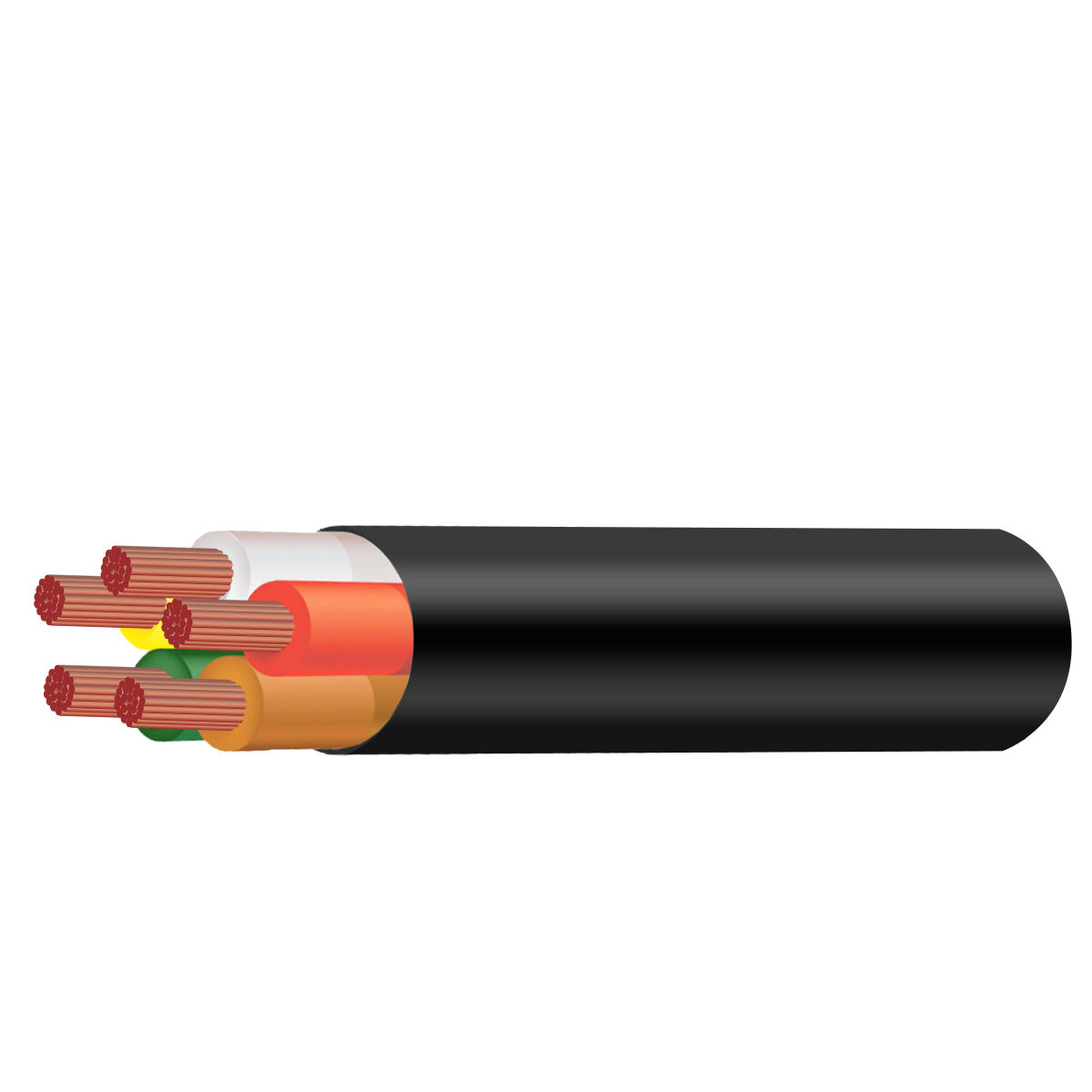

  • APPLICATIONS: General Purpose Automotive Wiring, Caravan & Trailer Wiring, Road Train Wiring
  • CONDUCTOR: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
  • INSULATION: V90 PVC Insulated to AS/NZS 3808
  • CORE COLOUR:
    • 3 Core: White, Yellow, Brown
    • 5 Core: White, Yellow, Brown, Red, Green
    • 7 Core: White, Yellow, Brown, Red, Green, Black, Blue
  • PACK: Cut to length, 100 metres, other packs by request
Key Tubing Code KA5TR400
Tycab Code ATC52603
Nearest AWG 15 AWG
* MM Industry Equivalent 4mm
Strand No. / Size 23/0.32
Nominal Area (mm²) 1.84mm
**AMP Rating @ 30°C 15 A
Insulation Thickness (mm) 0.5mm
Electrical Resistance @ 20°C (ohm/km) 9.5Ω
Nominal O.D. (mm) 8.4mm
Mass (kg/100m) 13.1kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CA5CORE4MM
Brand Key Tubing Electrical
Shipping Weight 0.1310kg
Shipping Width 0.100m
Shipping Height 0.007m
Shipping Length 0.100m
Shipping Cubic 0.000070000m3
