Elcon Cables is one of Australia's largest privately owned cable distribution companies.

With over 25 years in cable manufacturing, providing exceptional service at competitive prices they supply bot quality Australian-Made cables as well as the best from overseas.

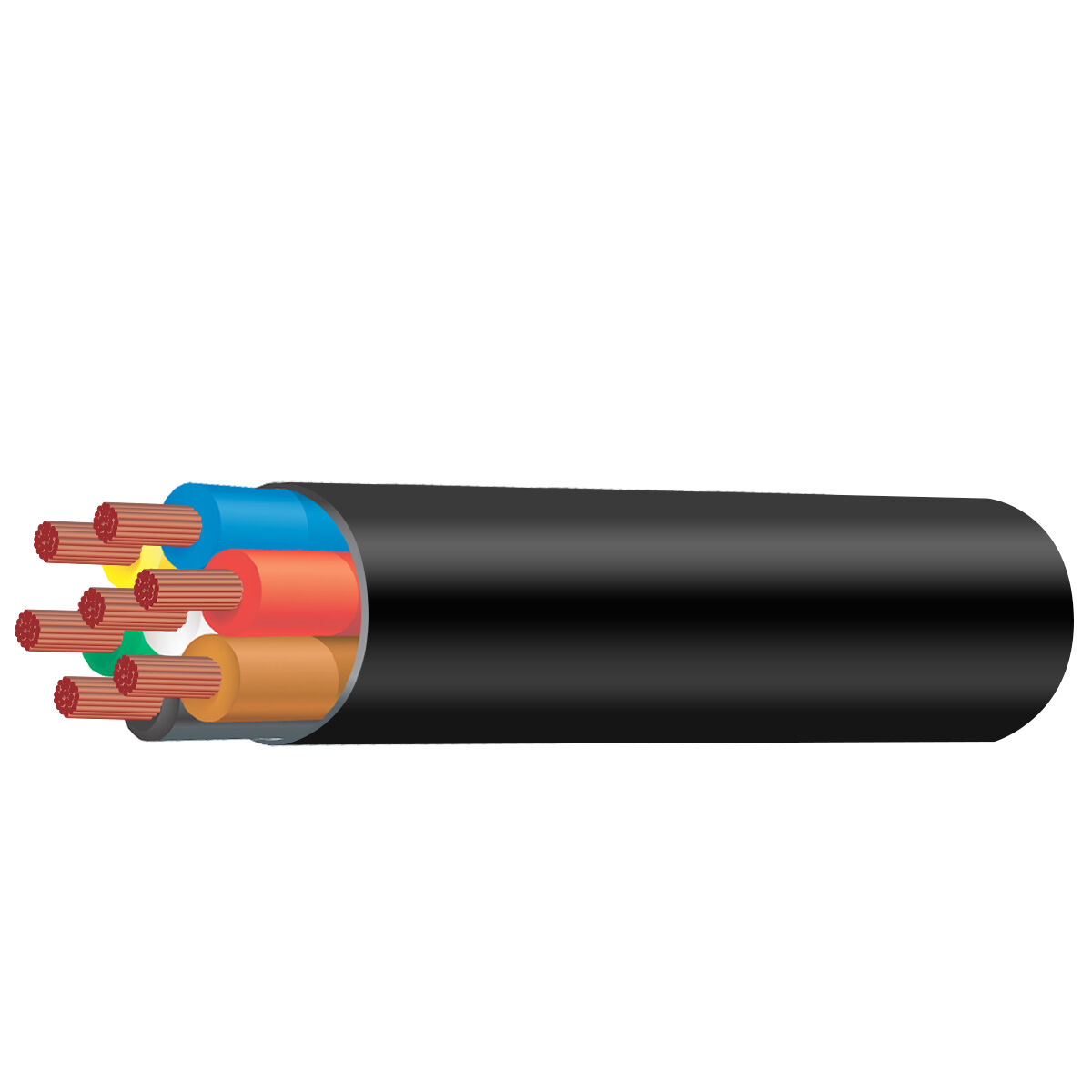

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

  • APPLICATIONS: General Purpose Automotive Wiring, Caravan & Trailer Wiring, Road Train Wiring
  • CONDUCTOR: OXYGEN FREE Plain Copper Wire to AS/NZS 1125
  • INSULATION: V90 PVC Insulated to AS/NZS 3808
  • CORE COLOUR:
    • 3 Core: White, Yellow, Brown
    • 5 Core: White, Yellow, Brown, Red, Green
    • 7 Core: White, Yellow, Brown, Red, Green, Black, Blue
  • PACK: Cut to length, 100 metres, other packs by request
Elcon Code RTC765032
Tycab Code ATH765032
Nearest AWG 10 AWG
* MM Industry Equivalent 6mm
Strand No. / Size 65/0.32
Nominal Area (mm²) 5.22mm
**AMP Rating @ 30°C 28 A
Insulation Thickness (mm) 0.6mm
Electrical Resistance @ 20°C (ohm/km) 3.64Ω
Nominal O.D. (mm) 15.7mm
Mass (kg/100m) 48.6kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CA7CORE6MM
Brand Elcon Cables
Shipping Weight 0.4860kg
Shipping Width 0.120m
Shipping Height 0.011m
Shipping Length 0.120m
Shipping Cubic 0.000158400m3
