The Bussmann LMI Fuse Block Series uses the Blue Sea Range of AMI®/MIDI® fuses p/n 5250-5260

Bussmann LMI “Little Block" fuse blocks are designed for MIDI fuses and can be used as a standalone fuse holder or joined together to create a single heavy duty fuse panel.

Optional input stud module and bus bars allow you to provide a common power feed across joined holders using a single cable connected to the input stud module.

A maximum of 6 fuse modules and 1 input stud module can be joined together

Perfect for applications such as; Marine, Construction, Agriculture, Heavy Trucking, Bus and Specialty Vehicles

Fuses not included, available for purchase seperately

• Bussmann LMI Input Module

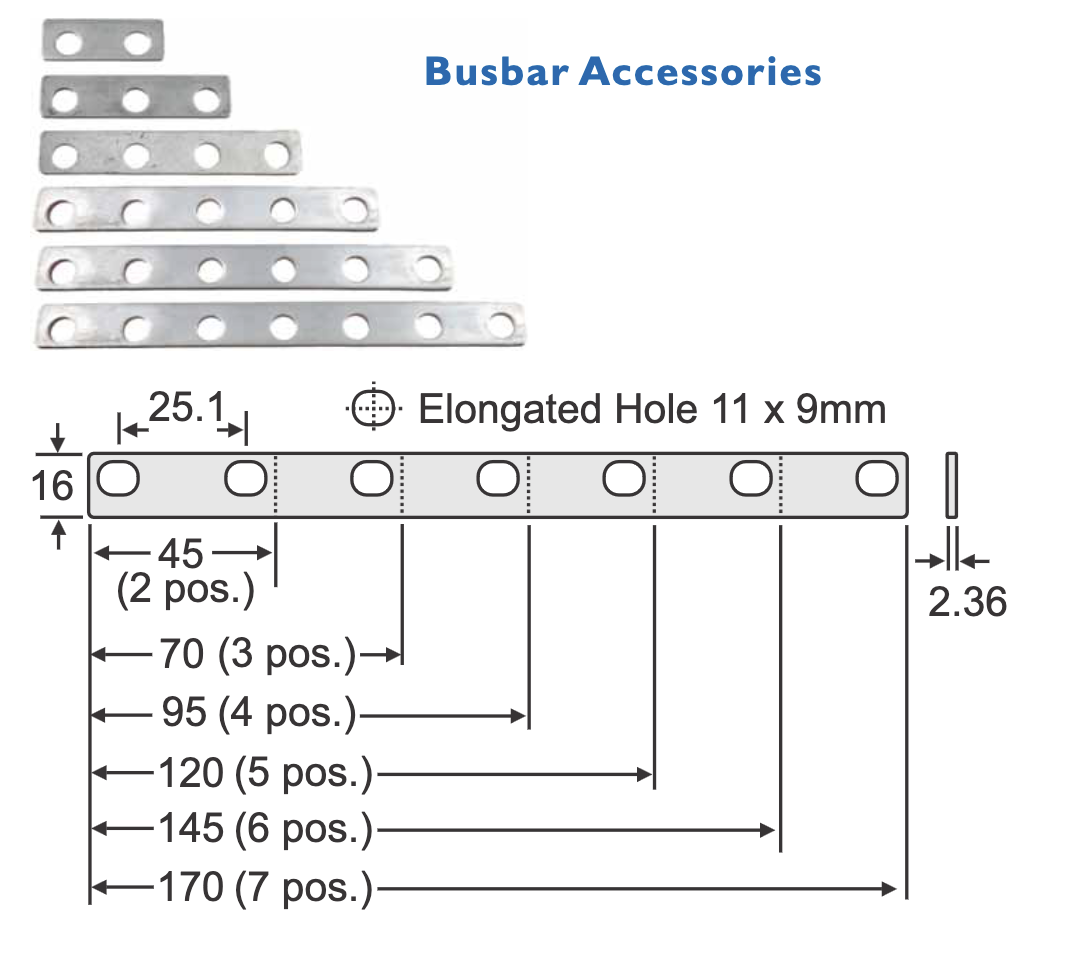

• Bussmann LMI Busbar 2 Position
• Bussmann LMI Busbar 3 Position
• Bussmann LMI Busbar 4 Position
• Bussmann LMI Busbar 5 Position
• Bussmann LMI Busbar 6 Position
• Bussmann LMI Busbar 7 Position

Maximum Amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

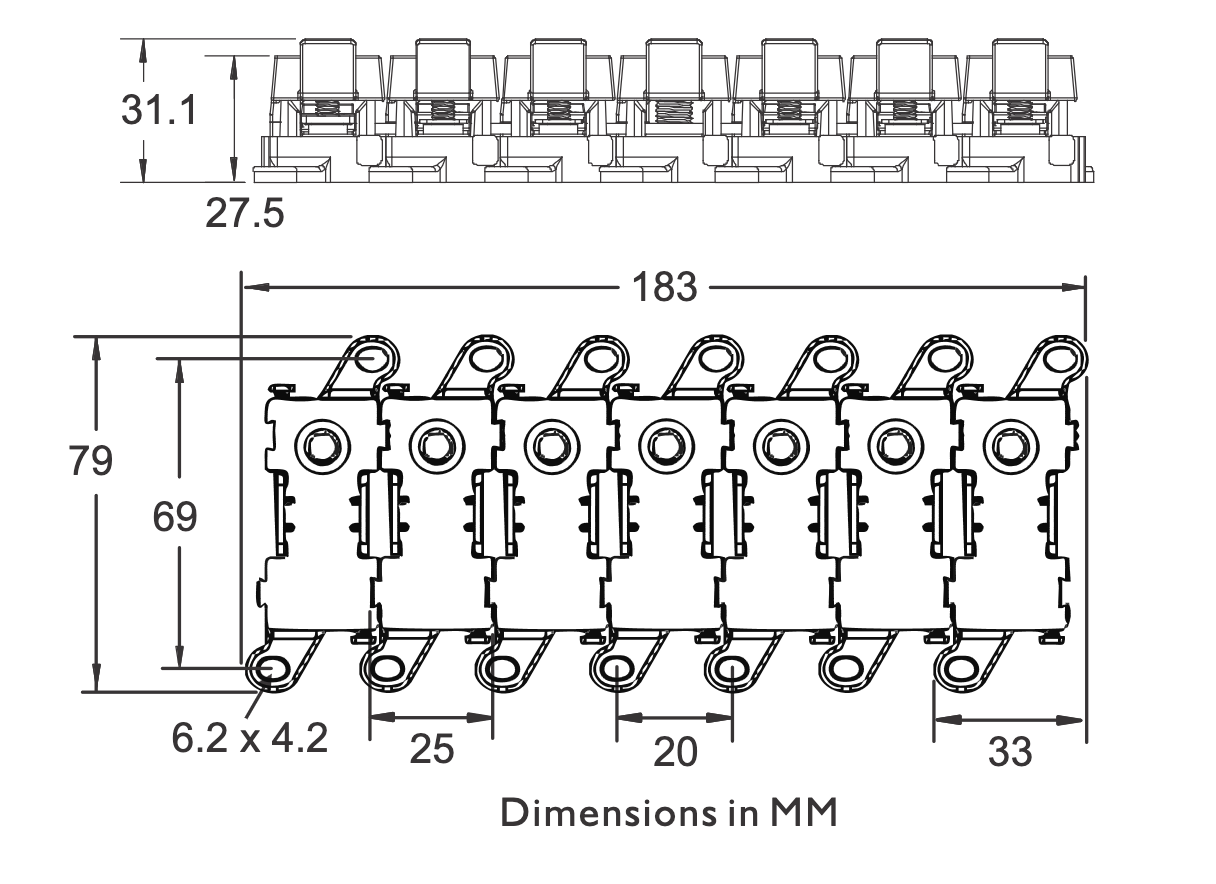

Max of 7 blocks or modules per assembly (6 fuse blocks & 1 input module) One MIDI® fuse block is required for each MIDI® Fuse Input modules and bus bars can be ordered as required. The input module should be located in the center of the assembly for bus bar efficiencies

MIDI® Fuse Block 200A continuous. - Based on numerous variations possible between numbers of poles used, fuses selected, input wiring, and output wiring, all applications should be tested by installer to verify the product meets their requirements.

Maximum total combined rating is 400A
