Need more VE.Direct ports?
Here the solution!

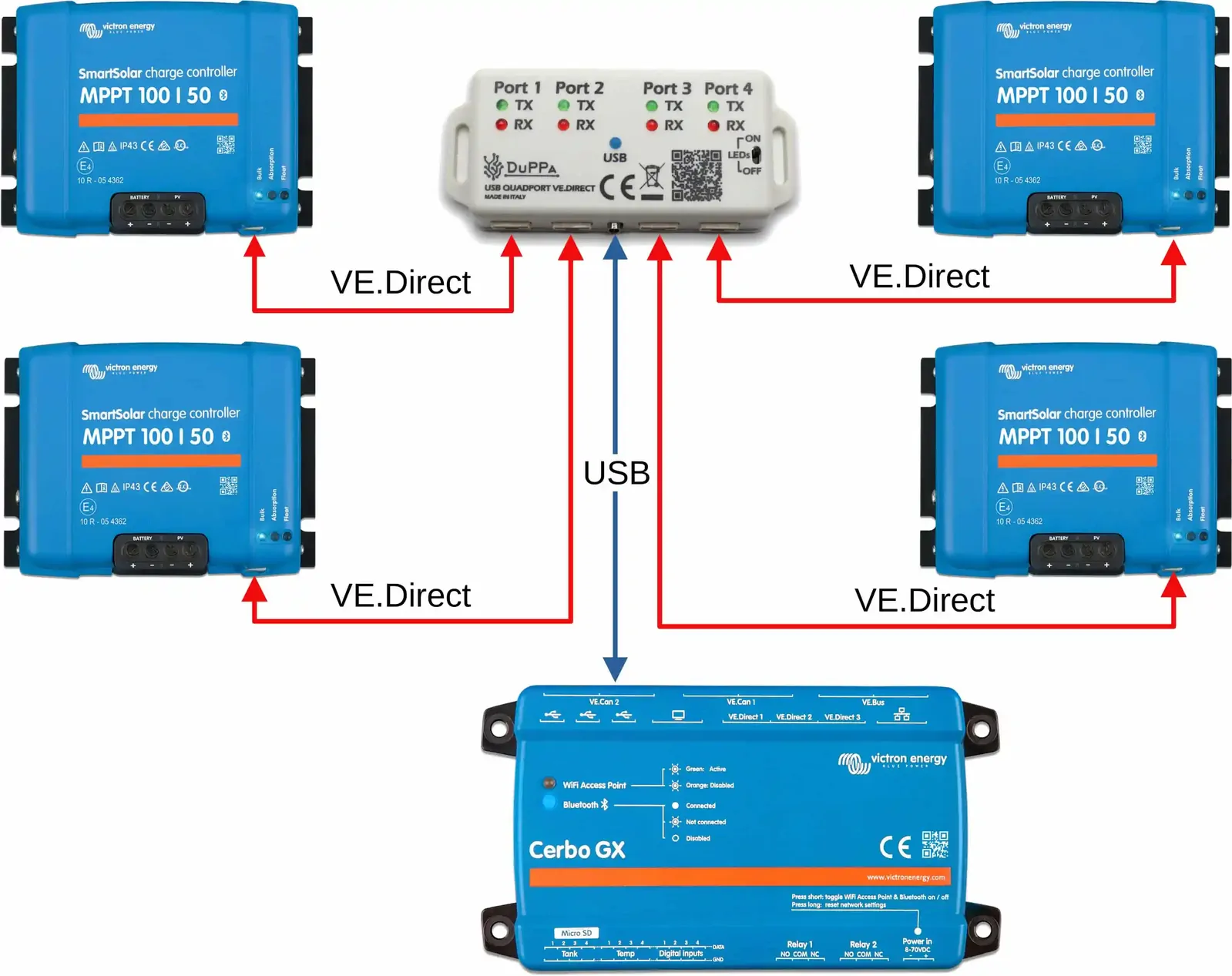

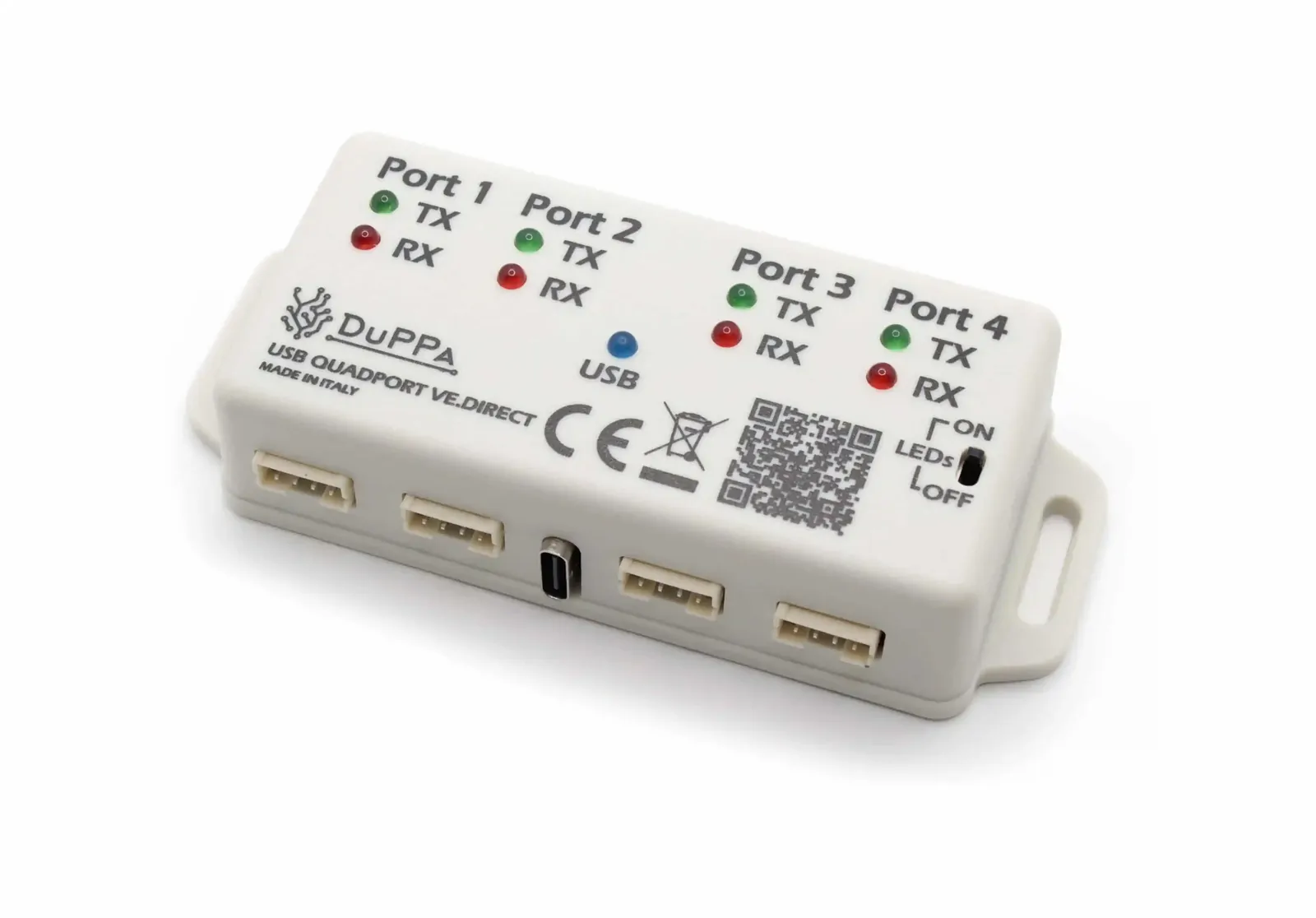

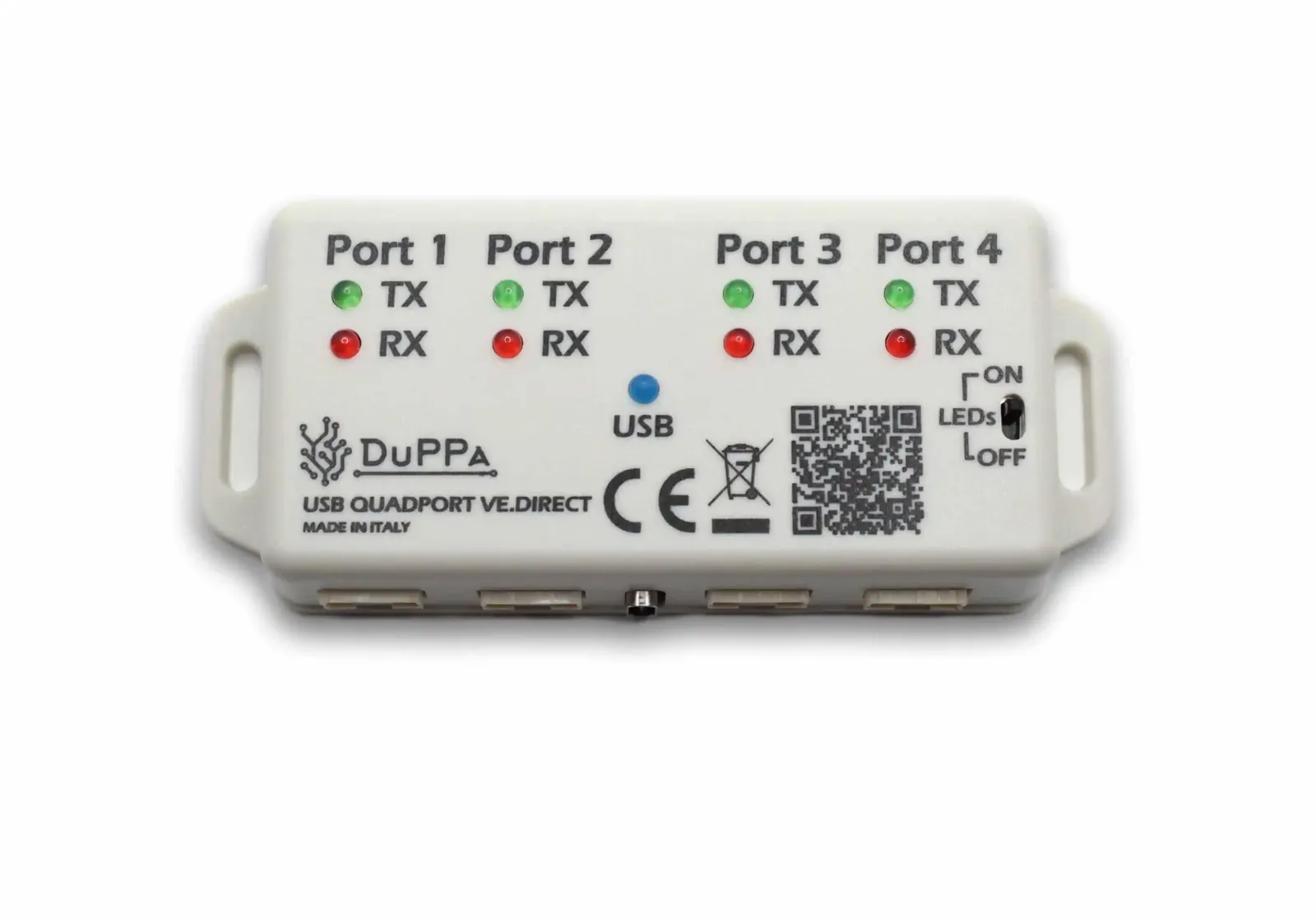

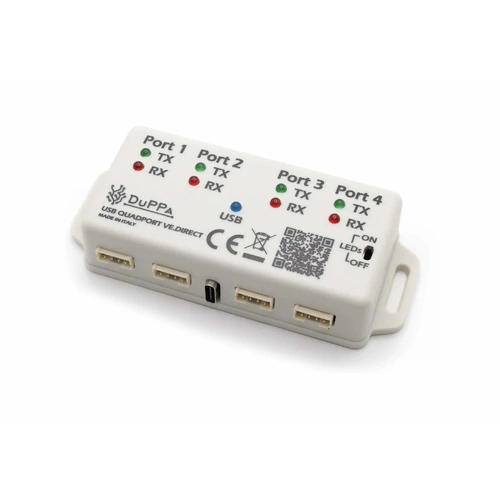

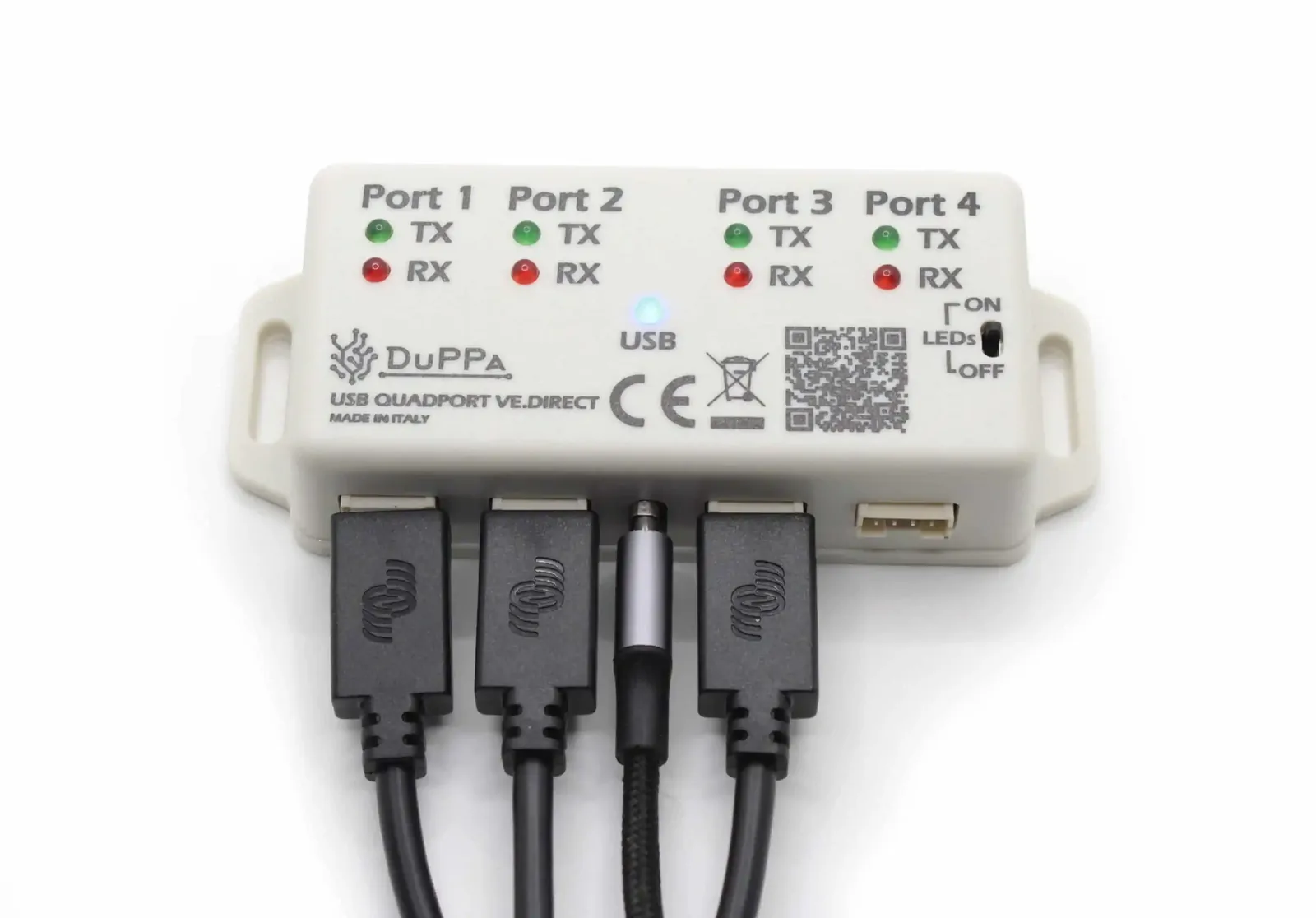

This is an upgraded version of the Isolated 4 port USB to TTL UART FTDI designed for the Victron devices. It includes a USB Type-C connector and four galvanically isolated VE.Direct ports, each equipped with status LEDs for clear communication diagnostics. The device is fully compatible with Victron Energy systems running Venus OS, like Cerbo GX, and also supports integration with platforms such as Raspberry Pi, Windows, Linux, and others.

Features

  • Plastic case 97 x 41 x 21 mm
  • 4 isolated port VE.Direct
  • Compatible with original Victron cables
  • Each ports can work independently at 3.3V up to 5V
  • Power, TX and RX LEDs indicators
  • Switch for disable/enable the LEDs
  • USB type-C connector
  • Compatible with: Linux, Windows, Android and Mac OS

Disclaimer:

This product is neither affiliated with, endorsed by, nor certified by Victron Energy. Victron and VE.Direct are registered trademarks of Victron Energy and are cited here exclusively to reflect protocol support.

Common Issue and questions:

  • Power LED is ON but no communication:
    This is a very common issue and most of the time you are using a USB cable that have only the power wire and no data wires.
    Please change the USB cable
  • Is compatible with Victron Cerbo ?
    Yes i compatible
  • There is some random disconnection
    Probably the SD card is at the end, try to replace it
    You are using a bad or too long USB cable, try to change it.
  • Not all the port are showed
    Try to reboot the device
SKU 8058753330006
Barcode # 8058753330006
Brand DuPPa
Shipping Weight 0.0400kg
Shipping Width 0.045m
Shipping Height 0.025m
Shipping Length 0.105m
Shipping Cubic 0.000118125m3
