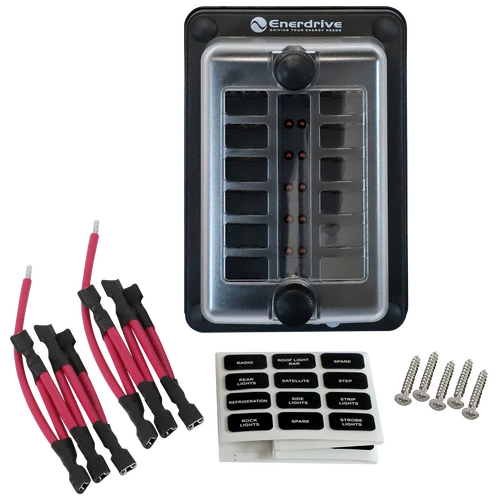

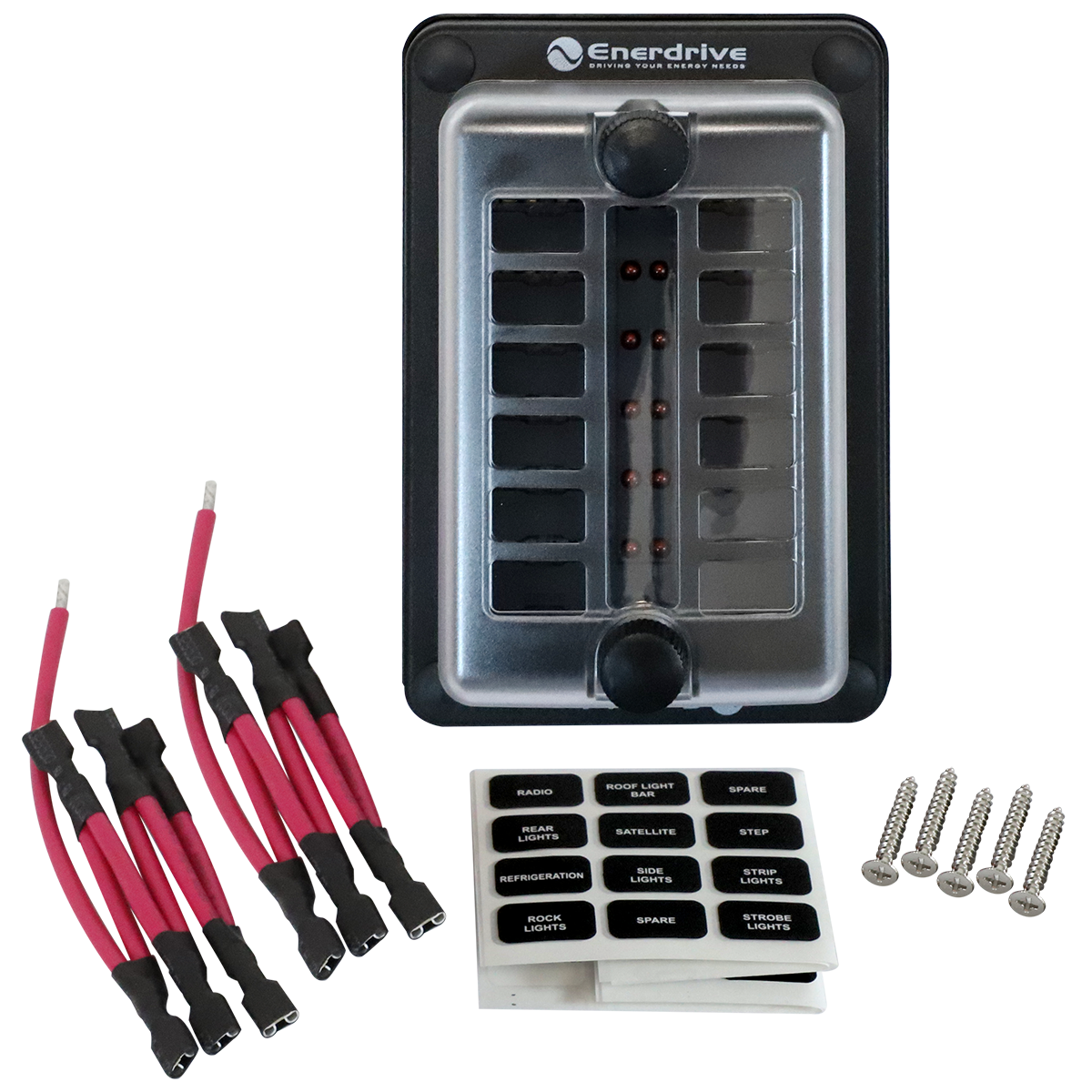

The 12 Input 12 Output Rear Entry Panel Mount Fuse Block from Enerdrive is ideal for canopy installs to protect the wire in the electrical circuit.

Fuse Block Panel Mount 12 In 12 Out with LEDs

  • Panel Mount 12 in – 12 out fuse block with rear connections.
  • Suits ATO/ATC Blade Fuses
  • 32V 50Amp Max – 20Amp Max per circuit
  • Fuse blown LED’s for easy fault finding.
  • Panel mount with rear connections and cover make this fuse block ideal for canopy installs.
  • Includes two label sets.
  • Retail Packaging
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
Circuits 12
Maximum Amperage 100A per block / 20A per circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)

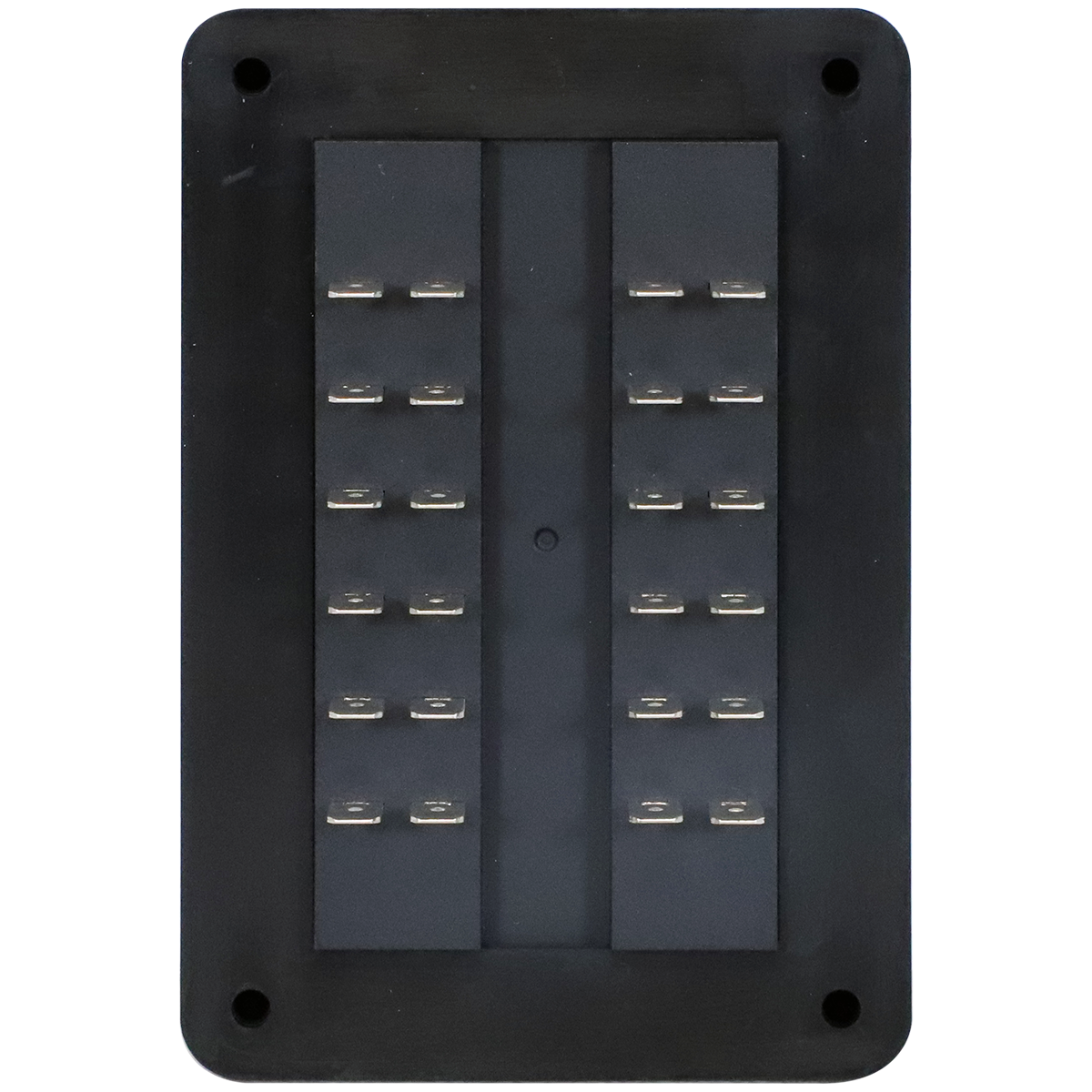

Positive Bus Input Spade Terminals, Rear
Positive Bus Output Spade Terminals, Rear
Recommended Torque 24 in-lb (2.71 N.m)
Screw Terminal Torque 18 in-lb (2.03 Nm)
Screw Terminal Type #8-32 Screws with captive star lock washer
Weight 0.23 kg



SKU 9342616027967
Barcode # EA-FB-04
Brand Enerdrive
Shipping Weight 0.3000kg
Shipping Width 0.210m
Shipping Height 0.065m
Shipping Length 0.120m
Shipping Cubic 0.001638000m3
