The HotShot HD4 features a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.

Pumping 4 gallows per minute at almost 60psi, this is an extremely reliable high-flow and high-pressure diaphragm pump.

The HotShot HD4 will provide years of clean decks and satisfaction.

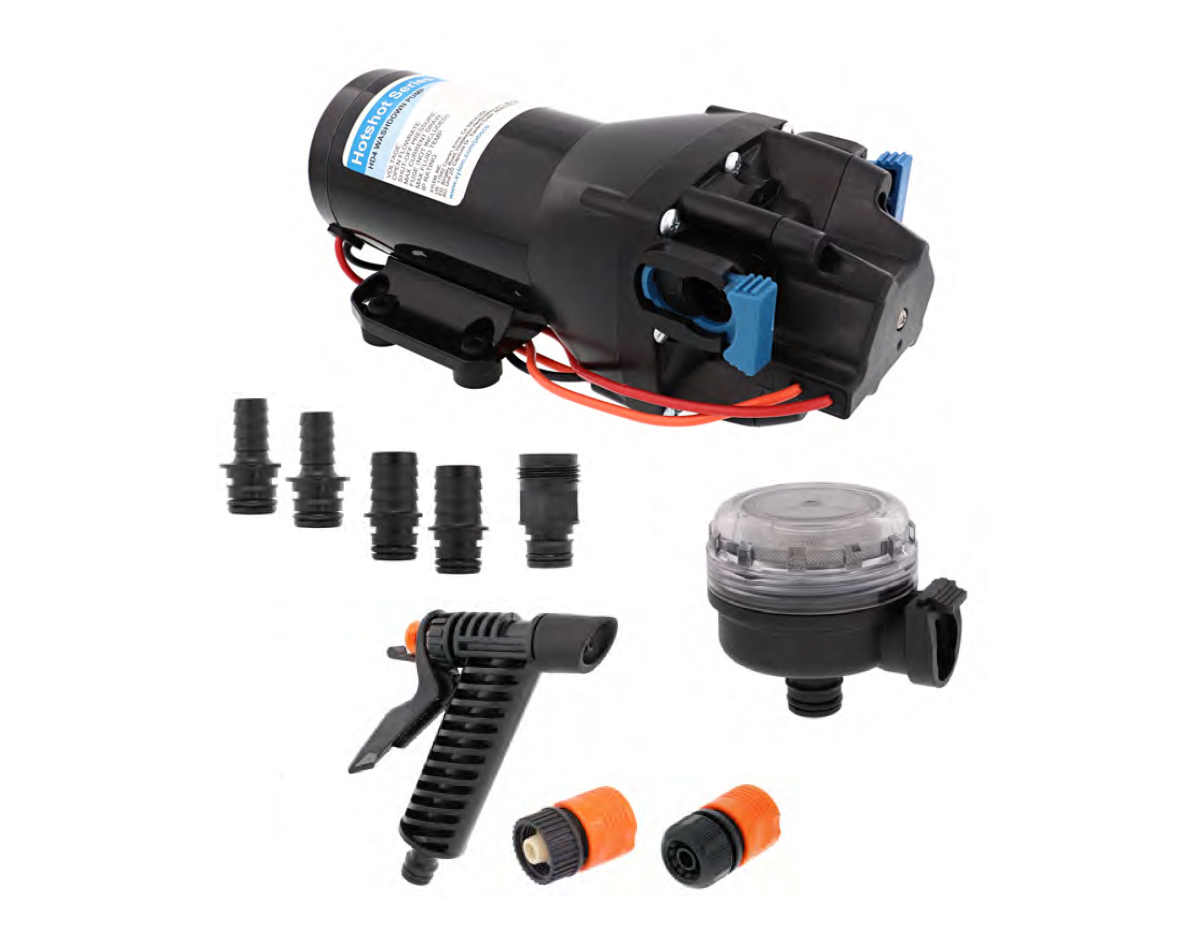

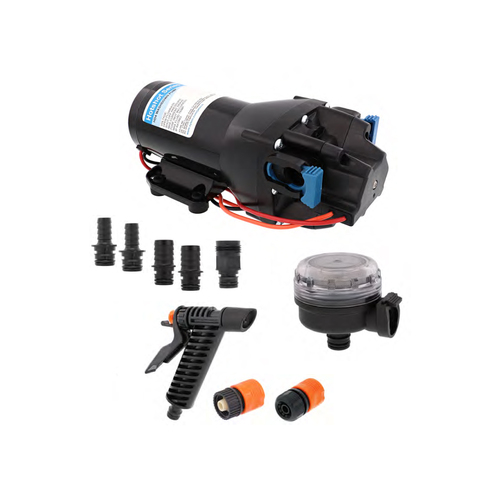

Kit includes:

  • 1 x HotShot HD4 Washdown Pump
  • 2 x 1/2" (13mm) straight hosebarbs
  • 2 x 3/4" (19mm) straight hosebarbs
  • 1 x 3/4" GHT fittings
  • 1 x 90° 40 mesh quick connect strainer
  • 1 x Deluxe trigger nozzle & quick connect hose adapters

Features:

  • Co-molded diaphragm technology for long life and durability
  • HD model featuring heavy duty, motor and cast aluminum lower housing which allow for long-life, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Self‐Priming
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • A plastic housing protects the motors from corrosion.
  • Provides exceptional performance in an economical footprint.
Pump Design Diaphragm Pump
Voltage 12V DC
Current Draw 11.0 Amp nominal @ 60PSI (4.1 Bar)
Flow Rate 4.0GPM (15.1L/min) Nominal @ Open Flow
Duty Cycle Intermittent
Operating Pressure 30 PSI (2.1 Bar) Maximum
Pressure Switch Setting 60PSI (4.1 Bar) Off
Self Priming 7ft min (2.1m min)
Liquid Temperature 32°F – 140°F (0°C – 60°C)
Motor Type Permanent Magnet Motor
Port Type 2 x 3/4" Straight Hosebarb



SKU PUJHS4KIT
Barcode # J20-238
Brand Xylem
Shipping Weight 4.0000kg
Shipping Width 0.445m
Shipping Height 0.135m
Shipping Length 0.205m
Shipping Cubic 0.012315375m3
