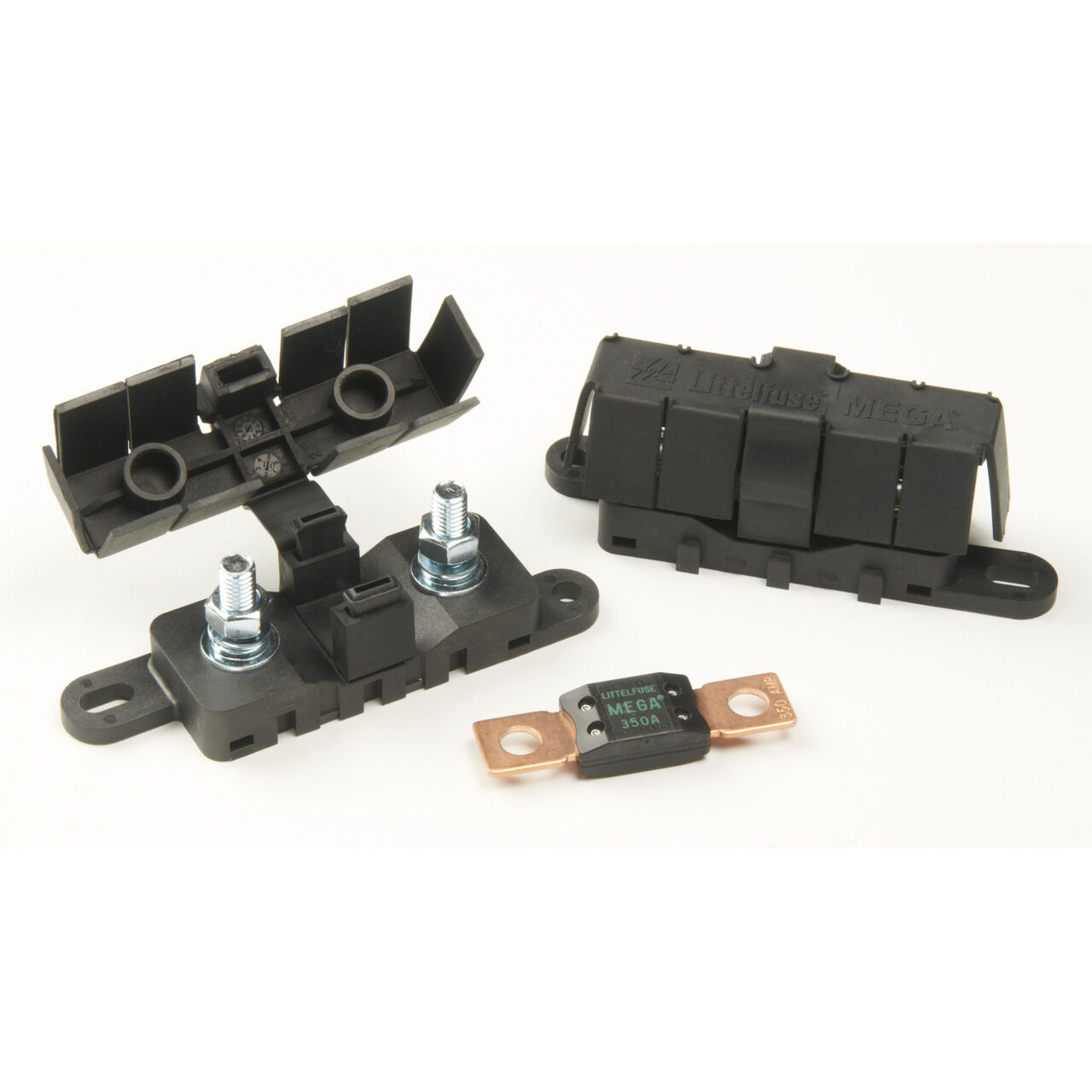

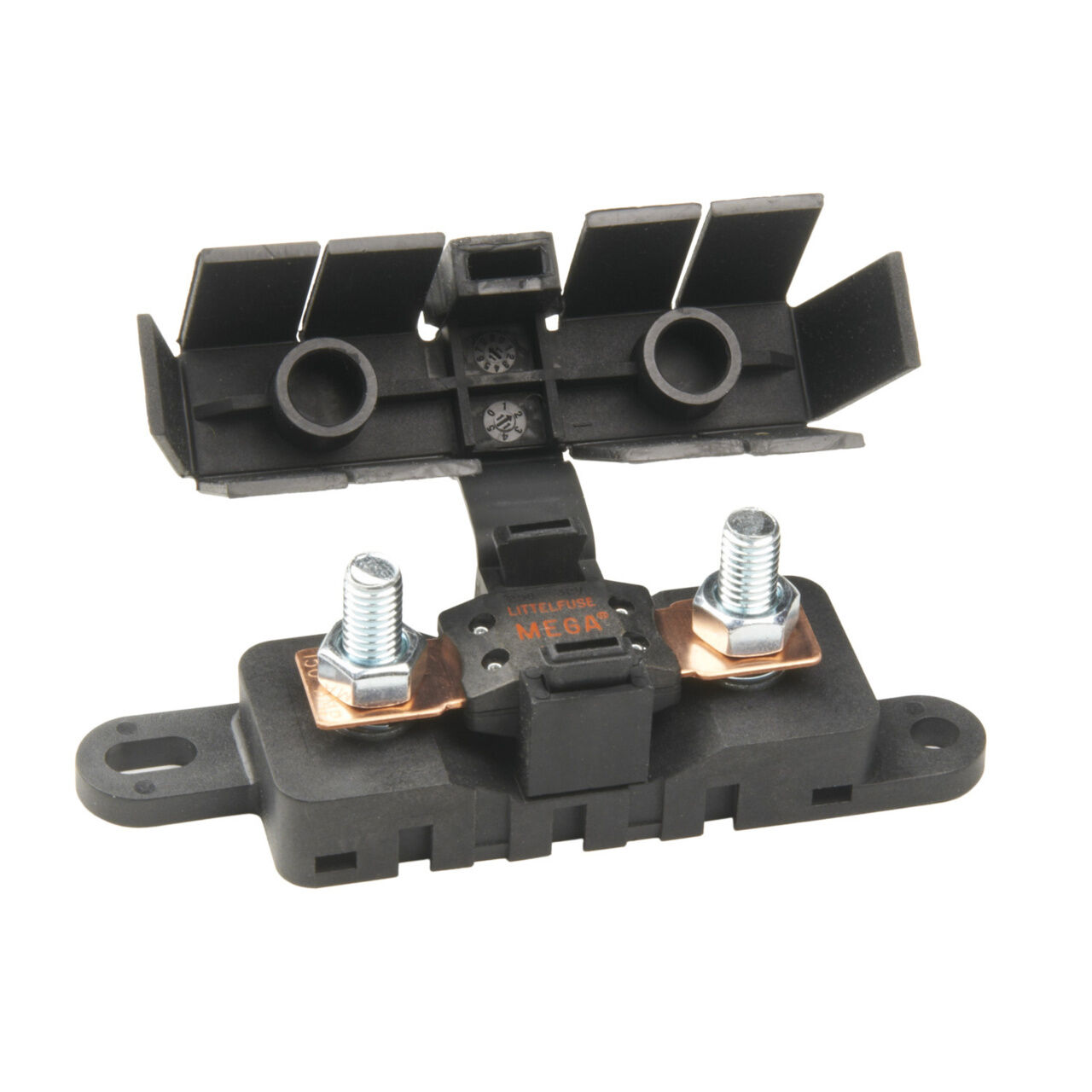

The Littelfuse MEGA® Flex Series 70V Bolt-Down Fuse Holder makes it simple to install a MEGA® fuse up to 500 amps. Its black UL 94 V-0 rated flexible cover allows cable entry at 6 different locations, and it accommodates large wire sizes and ring terminal stack up.

In addition, this high-current fuse holder includes a dovetail feature on the sides, making it easy to connect multiple MEGA® Flex Series fuse holders to create a fused high-power distribution block.

This fuse holder configuration (02981028HXFC) includes zinc-plated M8 studs, hex nuts, and split washers.

Features and Benefits

• Designed for MEGA ® fuses up to 500A, this bolt-down fuse holder also has a dovetail feature on the sides that allows you to connect multiple MEGA® Flex Series fuse holders to create a fused high-power distribution block (busbars for multi-fuse applications are available; sold separately). MEGA® Flex Series fuse holders can also be paired with MIDI® Flex Series fuse holders (sold separately) for a high- and low-amp solution.
• Compatible with MEGA® high-current bolt-down fuses up to 500A (sold separately unless indicated)
• Flexible cover allows cable entry at 6 different locations, simplifying installation and accommodating large wire sizes and ring terminal stack up
• Dovetail feature lets you connect multiple MEGA® Flex Series fuse holders together to create a fused high-power distribution block (busbars for multi-fuse applications are sold separately
• Slots molded into the base enable secure tie-wrap mounting
• Bolt-down fuse holder base features an M6 mounting hole and an M6 slot measuring 6mm long
• Flexible cover has a UL 94 V-0 flammability rating
• Bussed Rating is 70VDC 500A Max
