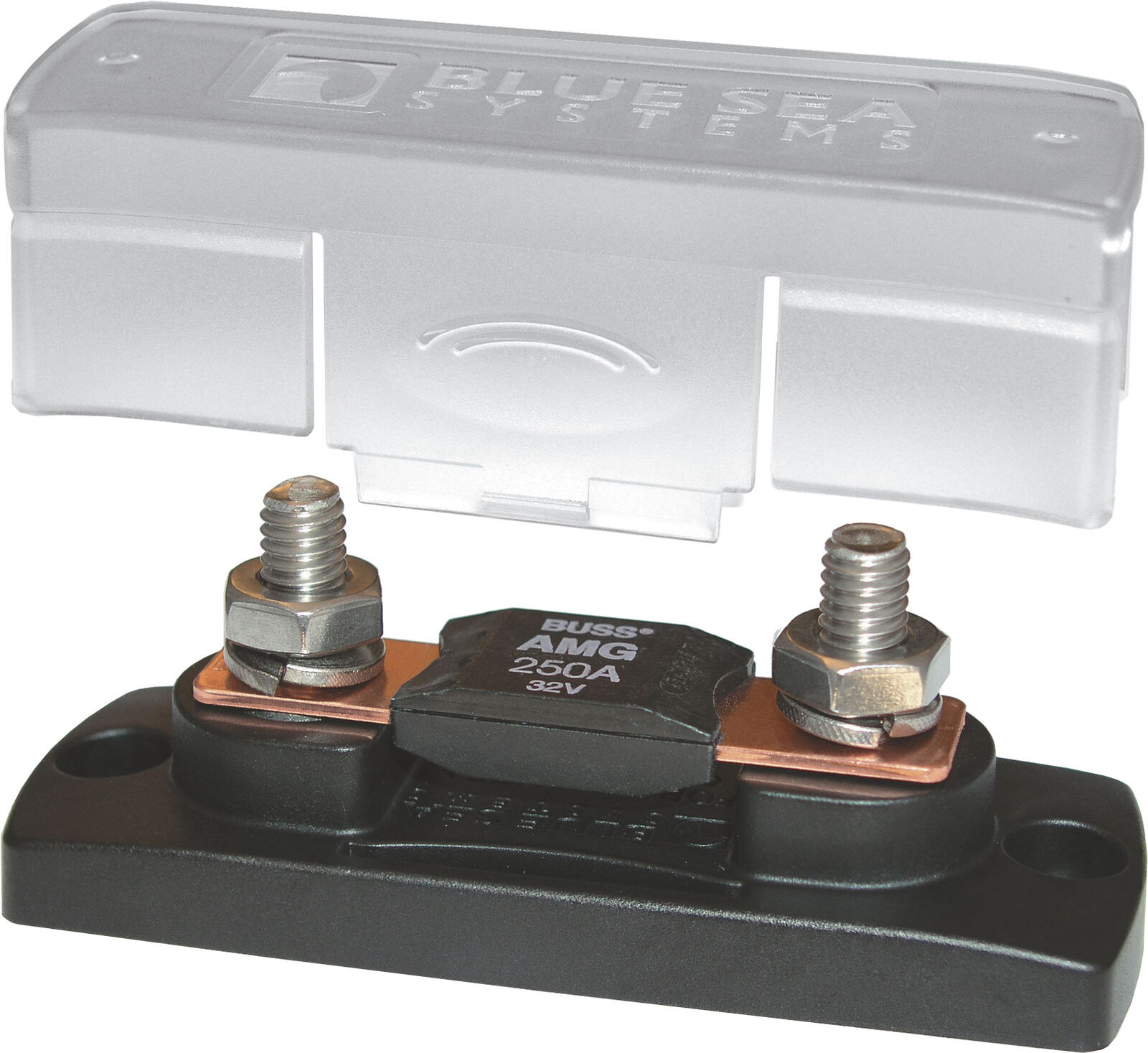

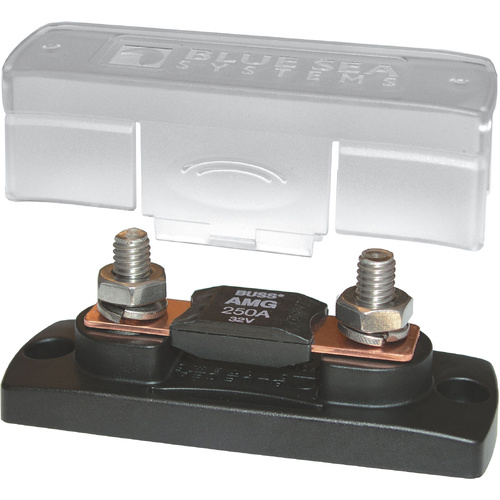

• Accepts 5/16" (M8) ring terminals
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Insulating cover breakouts allow wire access in three directions
  • Insert molded studs ensure secure fuse mounting
  • Stainless steel studs provide resistance to corrosion and high torque for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Fuse sold seperately
Maximum Voltage 32V DC
Maximum Current 300A
Stud Size 5/16" (M8)
Base Material Reinforced PBT
Cover Material Polycarbonate
Maximum Terminal Torque 110 in-lb (12.43 Nm)
Stud Torque 120 in-lb (13.56 Nm)
Weight 0.35lb (0.16 kg)
Dimensions MM (L x W x H) 104mm x 38mm x 42mm



SKU BSS5001B
Barcode # 5001B-BSS
Brand Blue Sea Systems
Shipping Weight 0.1100kg
Shipping Width 0.038m
Shipping Height 0.040m
Shipping Length 0.104m
Shipping Cubic 0.000158080m3
