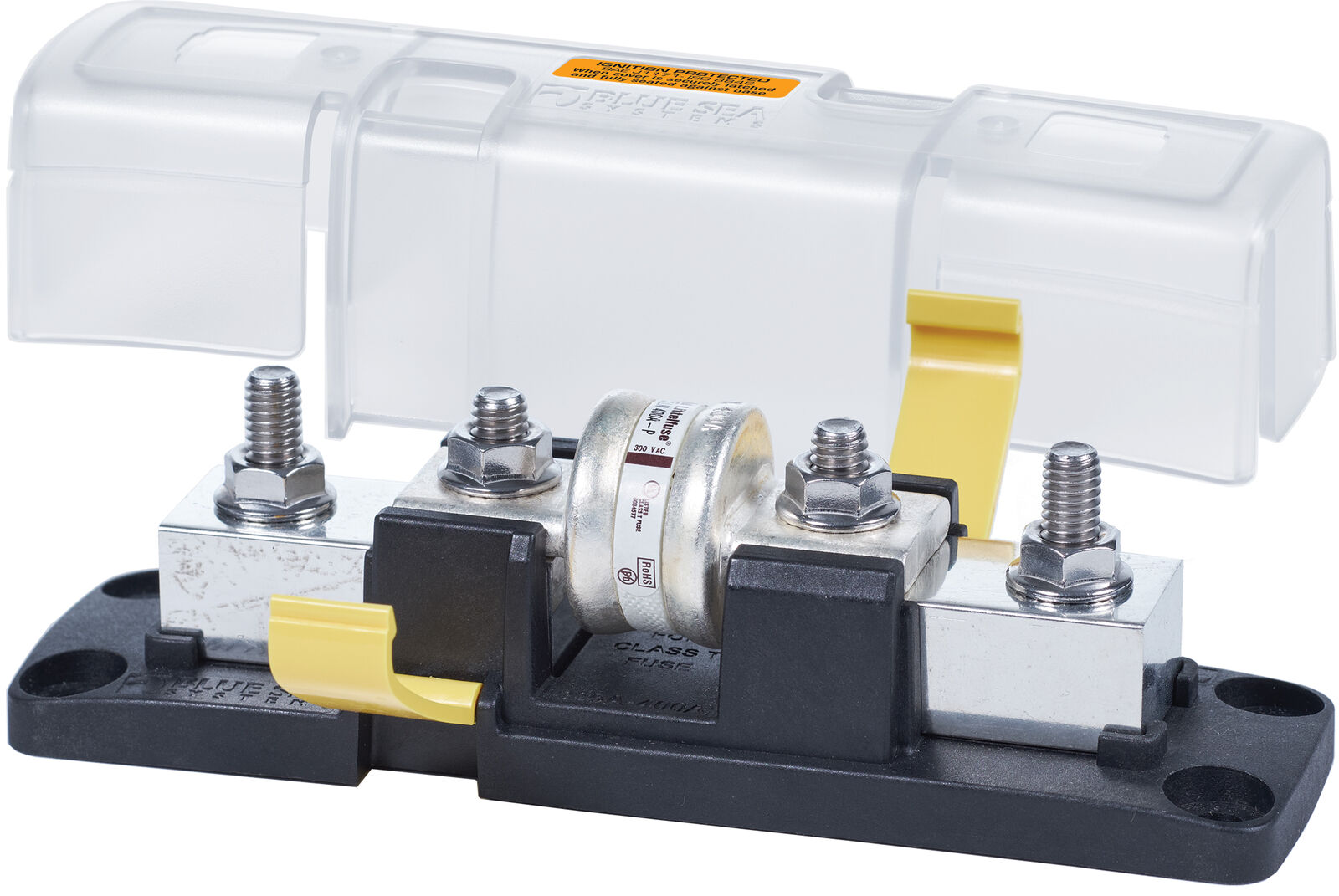

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
  • Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • Stud design ensures secure fuse mounting even with high heat
  • Stainless steel studs provide resistance to corrosion and high torque
  • One-piece stainless flange nuts ensure safe and secure connections
  • UL 94-V0 base resists high heat
  • Ignition Protected
  • Fuse sold separately
Ignition Protected (1) Yes
Maximum Voltage 160V DC
Maximum Amperage (2) 320A (3)
300A if inside engine space and continuous
Fuse Mounting Blocks Tin-Plated Copper
Maximum Cable Size 4/0 AWG
Maximum Torque 190 in-lb (21.47 Nm)
Mounting Holes 1/4" or M6 Hardware
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.10lb (0.5 kg)
  1. Devices, which operate in a potentially explosive environment, must be ignition protected. This would include engine rooms with gasoline engines. There are a very specific set of tests which a device must pass to claim ignition protection. They include operating safely in an explosve mixture of propane and air.
  2. Maximum Amperages are dependent on the correct size fuse and cable being used for a given application.
  3. BEST PRACTICE: Limit the amount of current in the circuit to 80% of the fuse rating.
SKU BSS5502100B
Barcode # 5502100B-BSS
Brand Blue Sea Systems
Shipping Weight 0.7200kg
Shipping Width 0.050m
Shipping Height 0.060m
Shipping Length 0.180m
Shipping Cubic 0.000540000m3
