NOTE: YOU REQUIRE 2 x LSCR102 TO MOUNT A CLASS T FUSE

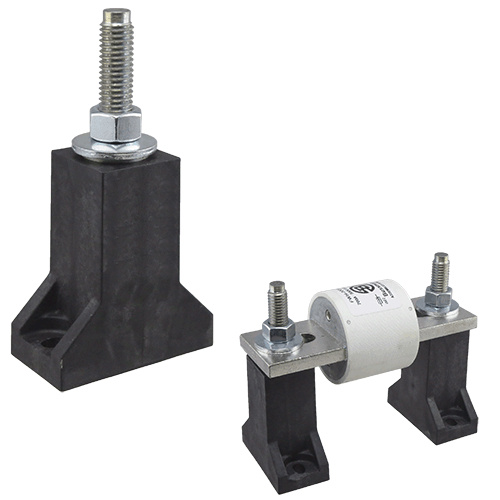

Littelfuse LSCR Series is a comprehensive line of modular fuse blocks, designed to accommodate a wide range of High-Speed and UL Power Fuses. These LSCR Series blocks have modular stud type design that enables easy mounting in panel boards. LSCR Series blocks are CE Certified and RoHS Compliant.

These LSCR series blocks have a modular stud-type design that enables easy mounting in panel boards.

Features:

  • Modular design reduces inventory requirements
  • Sold in pairs for convenience
  • Supplied with nut and belleville washer
  • Constructed of molded phenolic (with plated steel studs) provide greater heat dissipation.

Specifications:

  • Voltage Rating 700 V / 1000 V / 1500 V
  • Ampere Rating 400 A, 800 A and 1200 A
  • Withstand Rating 200 kA / 250 kA
  • Approvals:
    • UL Recognized (File: E14721)
    • cURus Recognized (E14721)
    • CSA Component Acceptance (File: 73160)
  • Material Base Molded phenolic or thermoplastic
  • Terminal Construction Steel, zinc-plated
  • Flammability Rating UL 94 V-0
  • Environmental RoHS compliant
  • Country of Origin LSCR1xx - USA
PART
NUMBER		 LSCR001 LSCR002 LSCR101 LSCR102 LSCR103
AMPERE RATING 400 A 800 A 400 A 800 A 1200 A
VOLTAGE RATING AC 700 V 700 V 1000 V 1000 V 1000 V
VOLTAGE RATING DC 1500 V 1500 V 1000 V 1000 V 1000 V
NTERRUPTING RATING AC 200 kA
NTERRUPTING RATING DC 250 kA 200 kA
INSULATOR MATERIAL Molded Phenolic Thermoplastic
INSULATOR MAX. BASE TEMPERATURE 150 °C (302 °F) 125 °C (257 °F)
SUGGESTED STUD TORQUE (in.lbs) 61 192 67.5–82.5 207–253 270–330
SUGGESTED STUD TORQUE (N•m) 6.8 21.6 7.6–9.3 23.4–28.6 30.5–37.3
MOUNTING FASTENER SIZE #10 1/4"
SUGGESTED FASTENER TORQUE (in.lbs) 20–25 12 max
SUGGESTED FASTENER TORQUE (N•m) 2.3–2.8 1.3 max

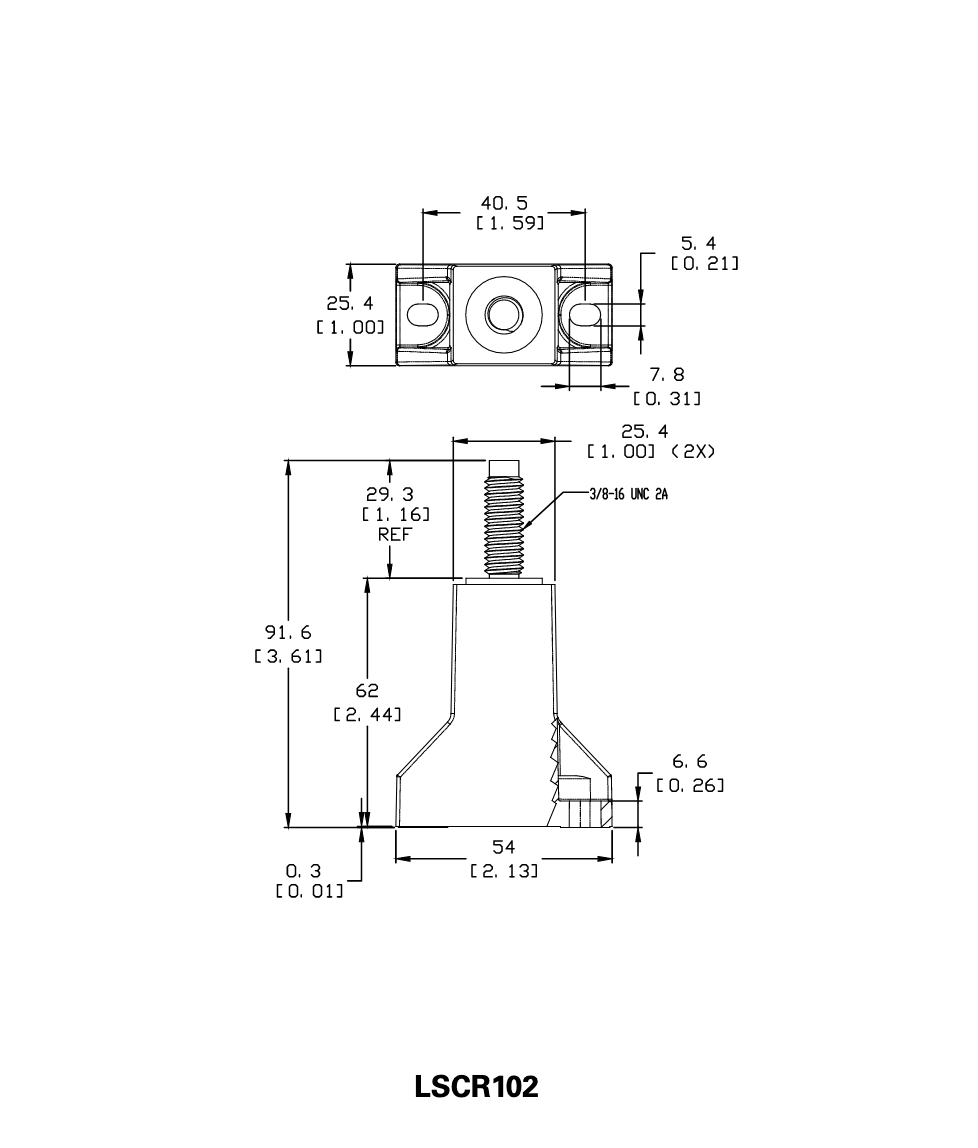

SKU LSCR102
Barcode # LSCR102
Brand Littelfuse
Shipping Weight 0.0900kg
Shipping Width 0.055m
Shipping Height 0.025m
Shipping Length 0.095m
Shipping Cubic 0.000130625m3
