• Fanless design for long-term reliability
  • Fully Adjustable with DIP switches for seven digital presets
  • Rated for operation at temperatures up to 60°C ambient
  • Additional custom settings via RS-232

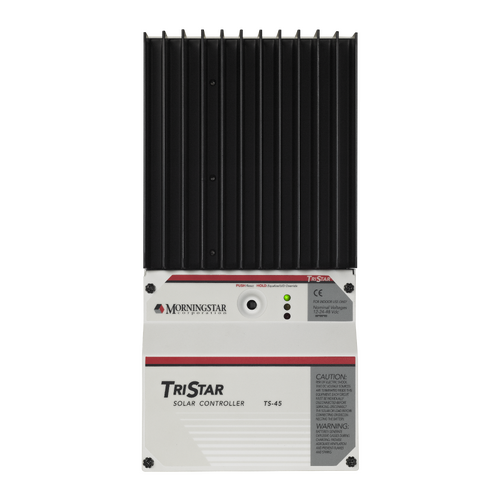

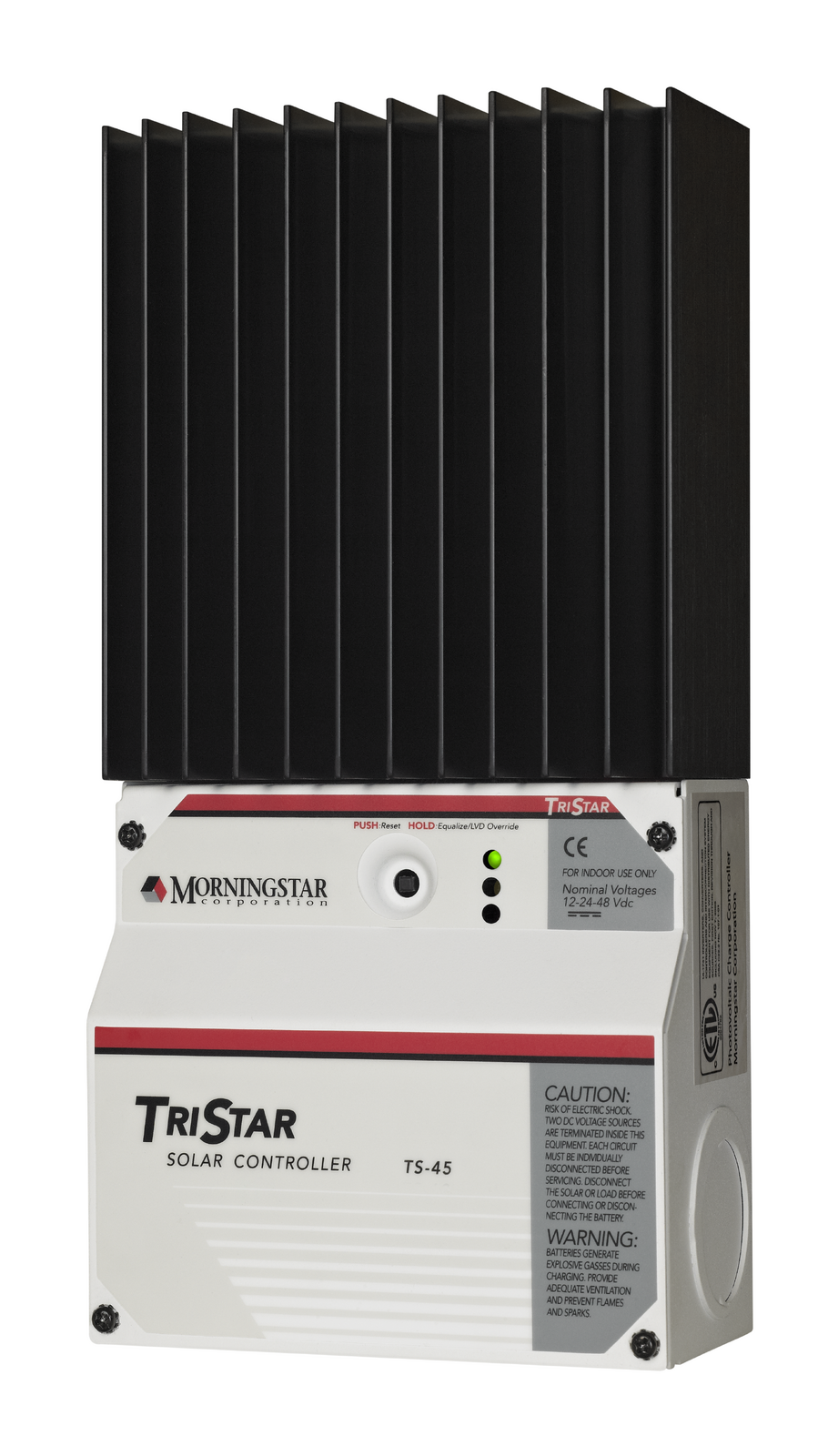

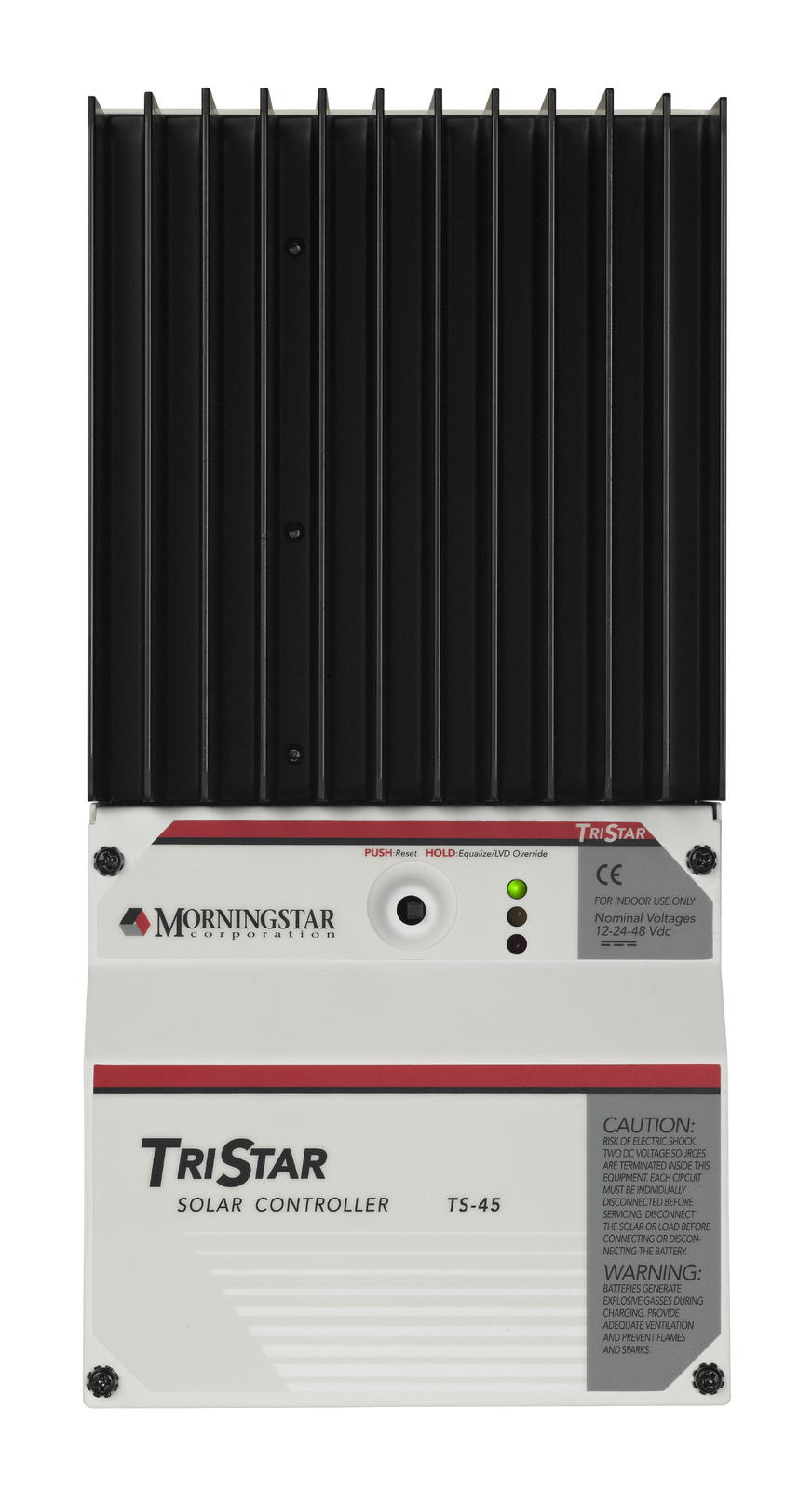

Three-function Pulse-Width Modulation (PWM) controller for larger systems, providing reliable PWM solar battery charging or load control or diversion regulation. PWM technology controllers are ideal for use in solar energy situations where 36 or 72 cell PV modules are available and the site is unshaded with no physical space limitations. TriStar models incorporate advanced thermal design requiring no cooling fans, which ensures long-term reliability with no moving parts to fail - a unique feature among higher-powered controllers.

Built for reliability and performance, with an oversized heatsink and over-spec’d components - More information with LED indicators. Optional meter displays extensive system and controller information in five languages; automatic self-test and reset communications capability with RS-232 port, connects to a PC for custom settings, data logging, remote monitoring and control

“Speaks” Modbus, and also SNMP (with the optional EMC-1 adaptor) for monitoring and control in network applications

Extensive electronic protection against reverse polarity, short circuits, overcurrent, and excessive temperature

Detailed battery programming options allow for advanced battery support for the latest Lithium, Nickel Cadmium, and Lead Acid battery types

  • High Reliability - Large heat sink and conservative design enables operation at up to 60°C ambient.
  • More Power - Ratings to 60A at 48VDC will handle solar arrays of up to 3.2kW of continuous power.
  • Communications Capability - RS-232 connects to a personal computer for custom settings, data logging and remote monitoring and control.
  • Fully Adjustable - DIP switch provides user with a choice of 7 different digital presets and custom settings via RS-232.
  • Extensive Electronic Protections - Fully protected against reverse polarity, short circuit, overcurrent, high temperature and overvoltage.
  • Simple Mechanical Interface - Larger power terminals and conduit knockouts. Extra space for wire turns. Fits on power panels.
  • Better Battery Charging - Connecting battery sense wires and optional remote temperature sensor will improve control accuracy. Constant voltage series PWM algorithm increases battery capacity and life.
  • More Information - 3 LED’s to indicate status, faults and alarms. Optional meter displays extensive system and controller information, automatic self-test and reset capabilities. Meter connection via RJ-11 phone jack.
  • Easy to Reset - Pushbutton provides manual reset and stop/start battery equalization or load disconnect.
  • Low Telecom Noise - DIP switch setting will change PWM to “On-Off” battery charging.
Rated solar, load or diversion current 45A
System Voltage 12, 24, 48V
Accuracy 12/24V ≤0.1% ±50mV
48V ≤0.1% ±100mV
Minimum voltage to operate 9V
Maximum solar voltage (Voc) 125V
Self-consumption Controller <20mA
Meter 7.5mA
Dimensions 26 x 12.7 x 7.1 cm
Weight 1.6kg/3.5lb
Largest Wire 35mm2/2 AWG
Conduit knockouts Eccentric 2.5/3.2 cm
Ambient operating temperature range -40°C to + 60°C
May derate above the following temperature* TS-PWM-60 and TS-PWM-45 = 55°C
Storage temperature –55°C to +85°C
Humidity 100% Non-Condensing
Tropicalization Conformal coating on both sides of all printed circuit boards

*35 mA for metered versions when meter is at 50% brightness; 50 mA when meter is at 100% brightness.

Electronic Protections:

  • Solar Input: overload, short-circuit, high voltage, reverse polarity, high temperature, nighttime reverse current
  • Load Output: overload, short-circuit, high temperature, reverse polarity
  • Battery: reverse polarity

Load & Lighting Control:

  • Low Voltage Disconnect, Low Voltage Reconnect Settings: 11.4 V / 12.6 V or Custom (x2 for 24 volt systems)
  • Lighting Settings: Dusk to Dawn
Barcode # TS-45
Brand Morningstar
Shipping Weight 2.1000kg
Shipping Width 0.190m
Shipping Height 0.090m
Shipping Length 0.320m
Shipping Cubic 0.005472000m3
