This established and popular switch design is available in a vast array of different functions and presentations

With a fully sealed fascia preventing the ingress of dust, water and debris, as well as a broad operating temperature range, they are the ideal switch for exposed applications in the harshest of conditions and environments

They are ready to go in switch panels with fuse and circuit protection, or can be banked together in a configuration of your choice.

  • Push-fit design with push on terminals

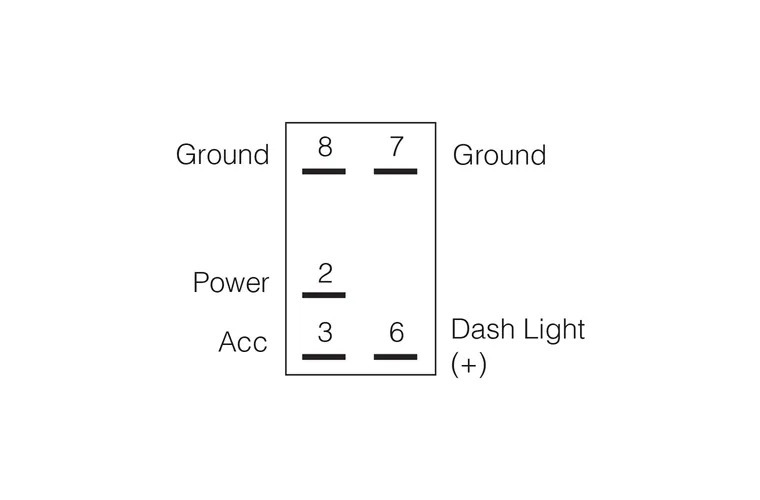

  • ‘Dash Light’ & ‘On’ illumination
Action OFF-ON
Pole / Throw SPST
Actuator Color Black
Maximum Amperage 20A @ 12V

Types of Switch Available and most common application:

  • ON-OFF: Common Applications = Lights
  • (ON)-OFF: Common Applications = Horn or windshield wipers
  • ON-OFF-ON: Common Applications = Combining nav lights or anchor light with independent bulbs
  • (ON)-OFF-ON: Common Applications = Bilge pumps
  • (ON)-OFF-(ON): Common Applications = Labeled dimmer
  • ON-OFF-ON: Common Applications = Combining nav lights with anchor light with shared bulb
SKU 63123BL
Brand Narva
Shipping Weight 0.0400kg
Shipping Width 0.155m
Shipping Height 0.035m
Shipping Length 0.065m
Shipping Cubic 0.000352625m3
