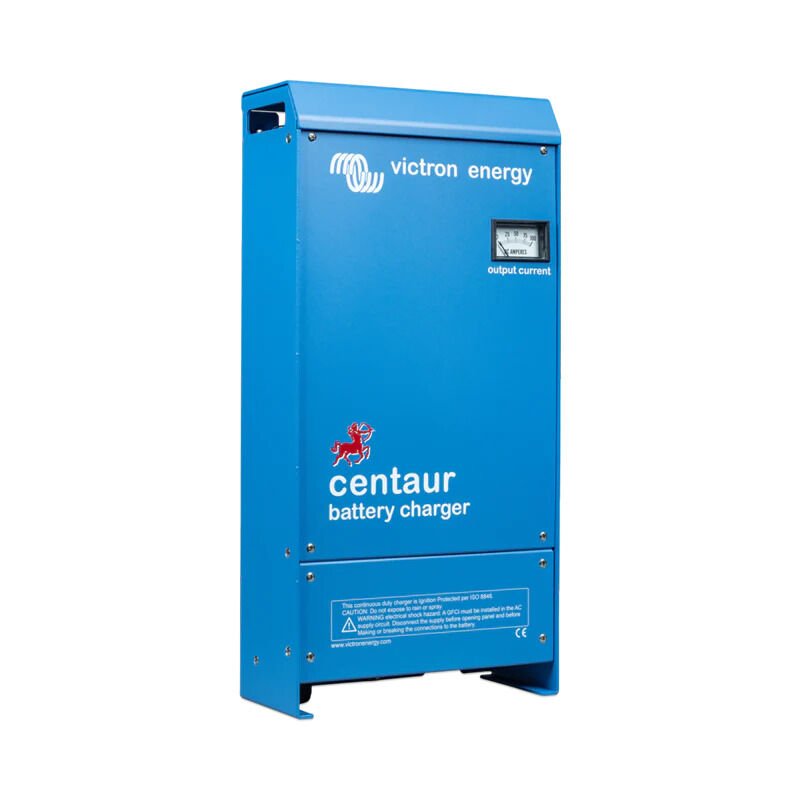

Centaur Charger 12/60(3) 120-240V
Victron Centaur Charger 12/60(3) 120-240V CCH012060000
Quality without compromise

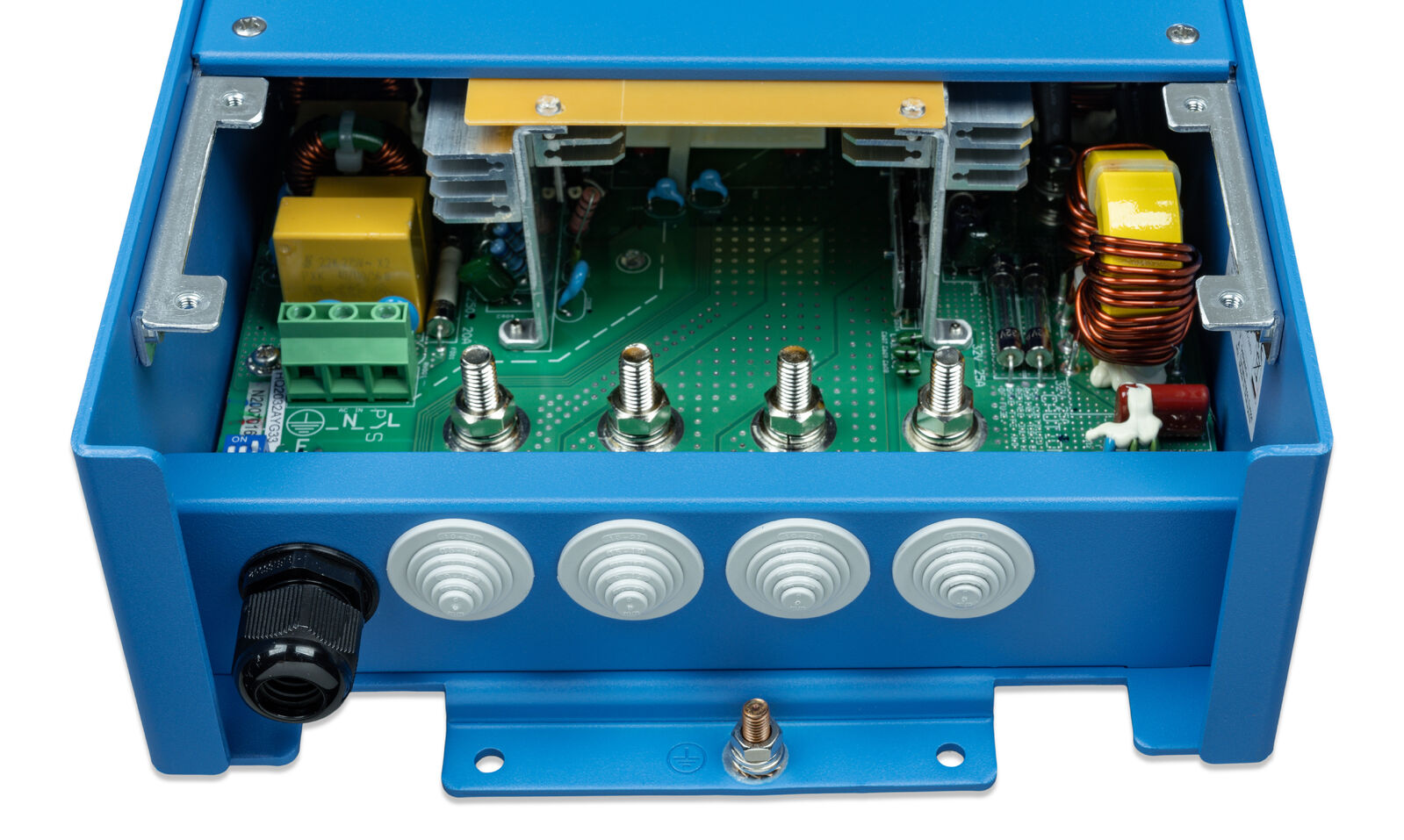

Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.
Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation)
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400 V DC supply.
Three outputs that each can supply the full output current
Three isolated outputs to simultaneously charge 3 battery banks Each output is capable to supply the full rated current.
Three-stage charging, with temperature compensation
The Centaur charges at bulk rate until the output has reduced to 70% of the rated Amps, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A DIP switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.
Learn more about batteries and battery charging
To learn more about batteries and charging batteries (including the pro’s and cons of multi-bank charging and intelligent charging), please refer to our book ‘Energy Unlimited’ (available free of charge from Victron Energy and downloadable from www.victronenergy.com
| Centaur Charger | 12/20 | 12/30 24/16 |
12/40 | 12/50 | 12/60 24/30 |
12/80 24/40 |
12/100 24/60 |
|---|---|---|---|---|---|---|---|
| Input voltage (V AC) | 90 – 265 VAC | ||||||
| Input voltage (V DC) | 90 – 400 VDC | ||||||
| Input frequency (Hz) | 45 – 65 Hz | ||||||
| Power factor | 1 | ||||||
| Charge voltage ‘float’ (V DC) | 13.5 / 27.0 (1) | ||||||
| Charge voltage ‘absorption’ (V DC) | 14.3 / 28.5 (1) | ||||||
| Output banks | 3 | ||||||
| Charge current (A) (2) | 20 | 30 / 16 | 40 | 50 | 60 / 30 | 80 / 40 | 100 / 60 |
| Total output Ammeter | Yes | ||||||
| Charge characteristic | IUoU (Three stage charging) | ||||||
| Recommended battery capacity (Ah) | 80 - 200 | 120 - 300 45 - 150 |
160 - 400 | 200 - 500 | 240 - 600 120 - 300 |
320 - 800 160 - 400 |
400 - 1000 240 - 600 |
| Temperature sensor | Internal, - 2mV / °C (- 1mV / °F) per cell | ||||||
| Forced cooling | Yes, temperature and current controlled fan | ||||||
| Protection | Output short circuit, over temperature | ||||||
| Operating temp. range | - 20 to 60°C (0 - 140°F) | ||||||
| Ignition protected | Yes | ||||||
| Humidity (non condensing) | max 95% | ||||||
| Material & Colour | Aluminium (blue RAL 5012) | ||||||
| Battery-connection | M6 studs | M8 studs | |||||
| AC-connection | screw-clamp 4 mm² (AWG 6) | ||||||
| Protection category | IP 20 | ||||||
| Dimensions hxwxd in mm | 351 x 214 x 110 | 437 x 239 x 110 | 514 x 252 x 123 | ||||
| Weight kg (lbs) | 3.8 (8.4) | 5 (11) | 12 (26) | ||||
1) Standard setting. Optimum charge/float voltages for Flooded Lead-acid, Gel-Cell or AGM batteries selectable by DIP switch.
2) Up to 40°C (100°F) ambient. Output will reduce to approximately 80% of nominal at 50°C (120°F) and 60% of nominal at 60°C (140°F)
| SKU | CCH012060000 |
| Barcode # | CCH012060000 |
| Brand | Victron |
| Shipping Weight | 7.1000kg |
| Shipping Width | 0.330m |
| Shipping Height | 0.240m |
| Shipping Length | 0.540m |
| Shipping Cubic | 0.042768000m3 |
