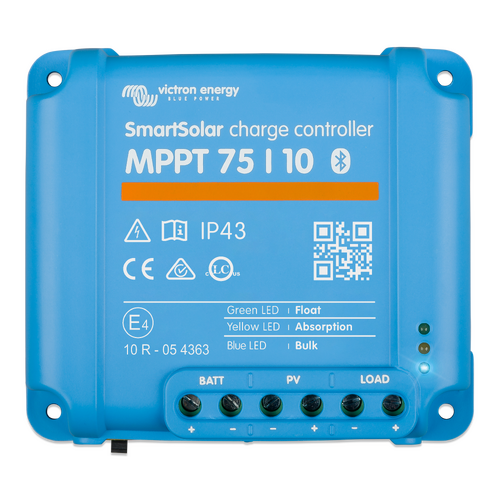

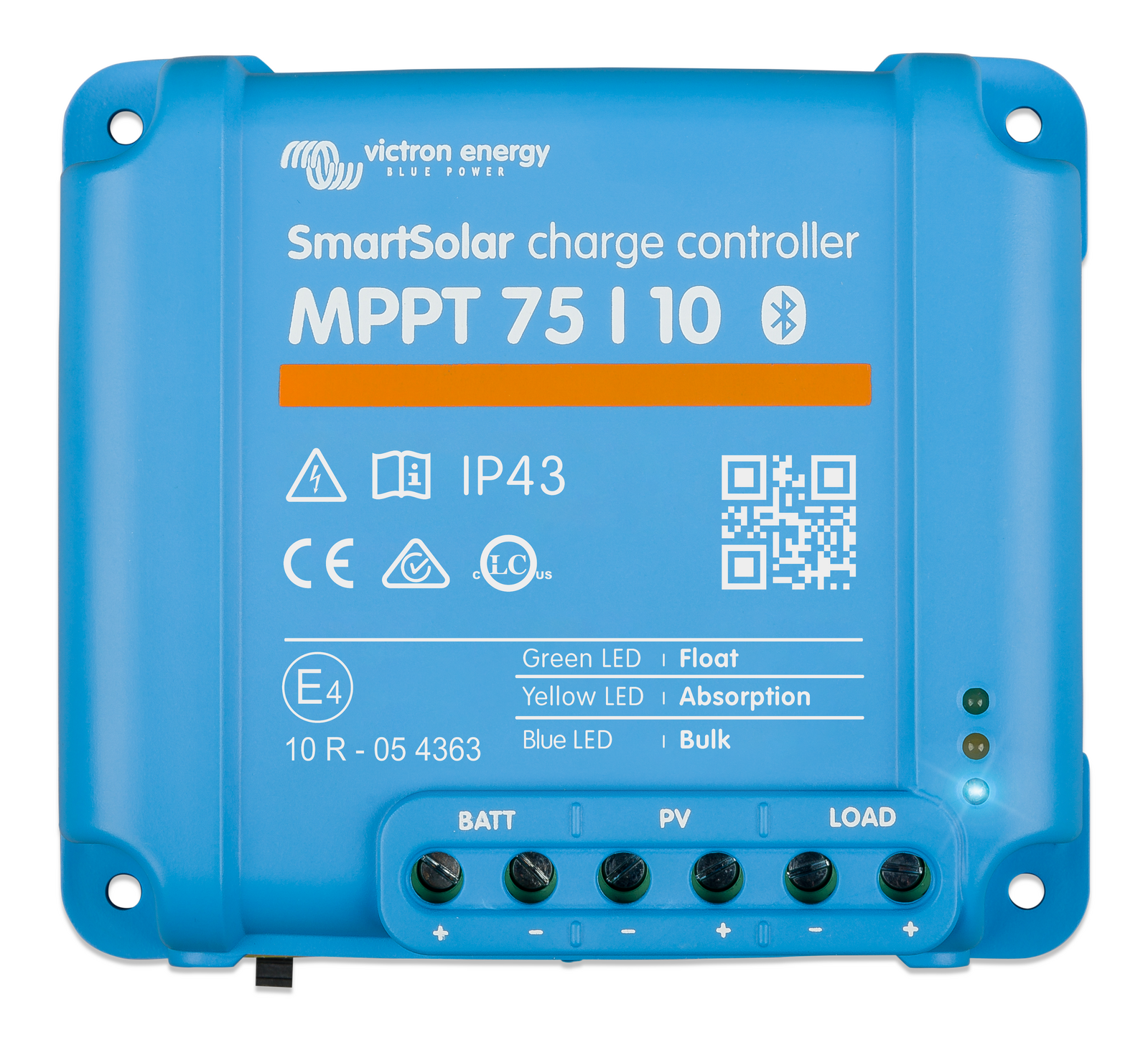

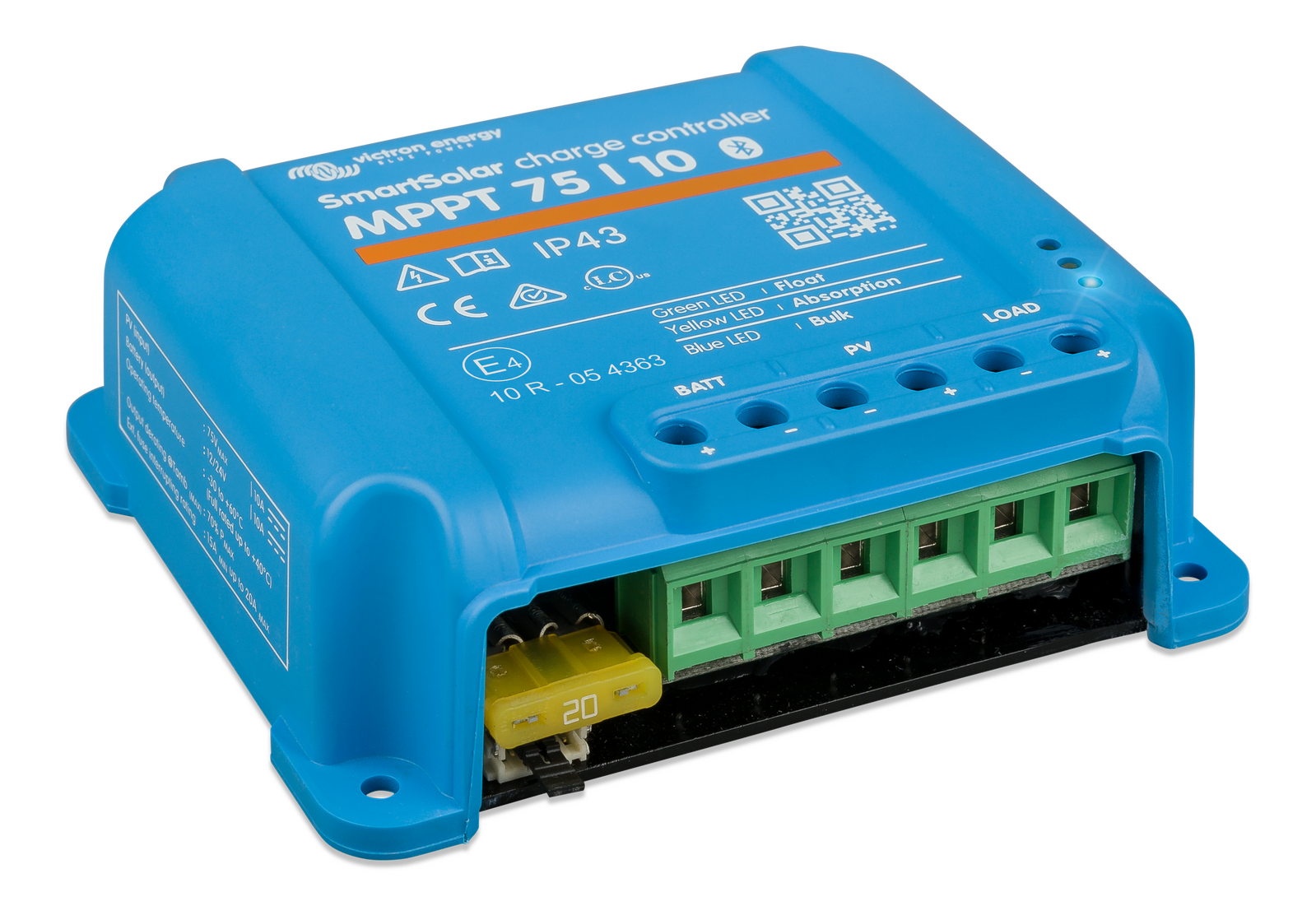

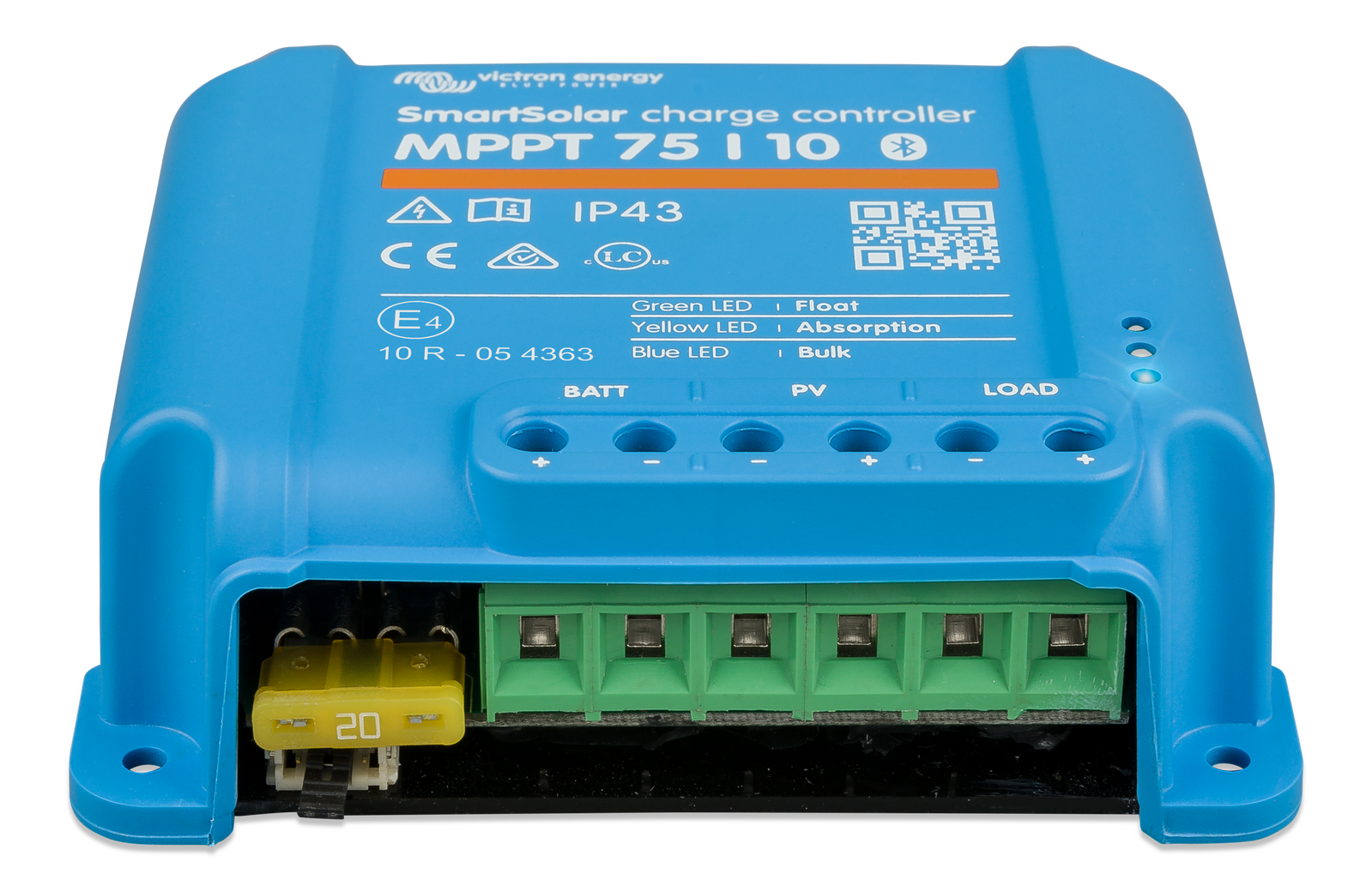

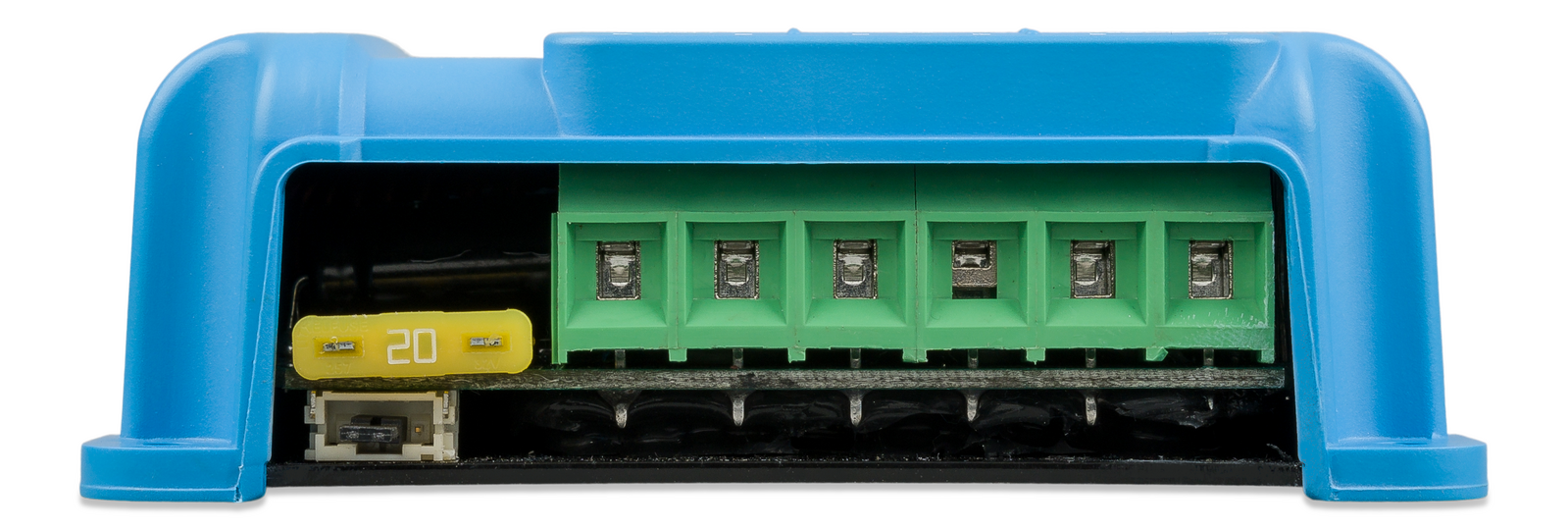

Victron SmartSolar 75v 10 Amp MPPT Solar Charge Controller with Bluetooth for 12-24v Systems - Lithium Compatible

Max. Solar Input 12v Battery: 145w

Max. Solar Input 24v Battery: 290w

Max. Solar Currant: 10A

The Victron MPPT VE.Can SmartSolar charger uses the latest and fastest technology to convert energy from a solar array into energy that optimally charges a battery banks.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged

  • Ultra-fast Maximum Power Point Tracking (MPPT) - Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
  • Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
  • Internal temperature sensor Compensates absorption and float charge voltage for temperature.
  • Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
  • Fully discharged battery recovery function Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
  • VE.Can: the multiple controller solution Up to 25 units can be synchronised with VE.Can
  • VE.Direct or VE.Can For a wired data connection to a Color Control GX, other GX products, PC or other devices
  • Remote on-off To connect for example to a VE.BUS BMS.
  • Programmable relay Can be programmed to trip on an alarm, or other events.
  • Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%.
  • Flexible charge algorithm Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
  • Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

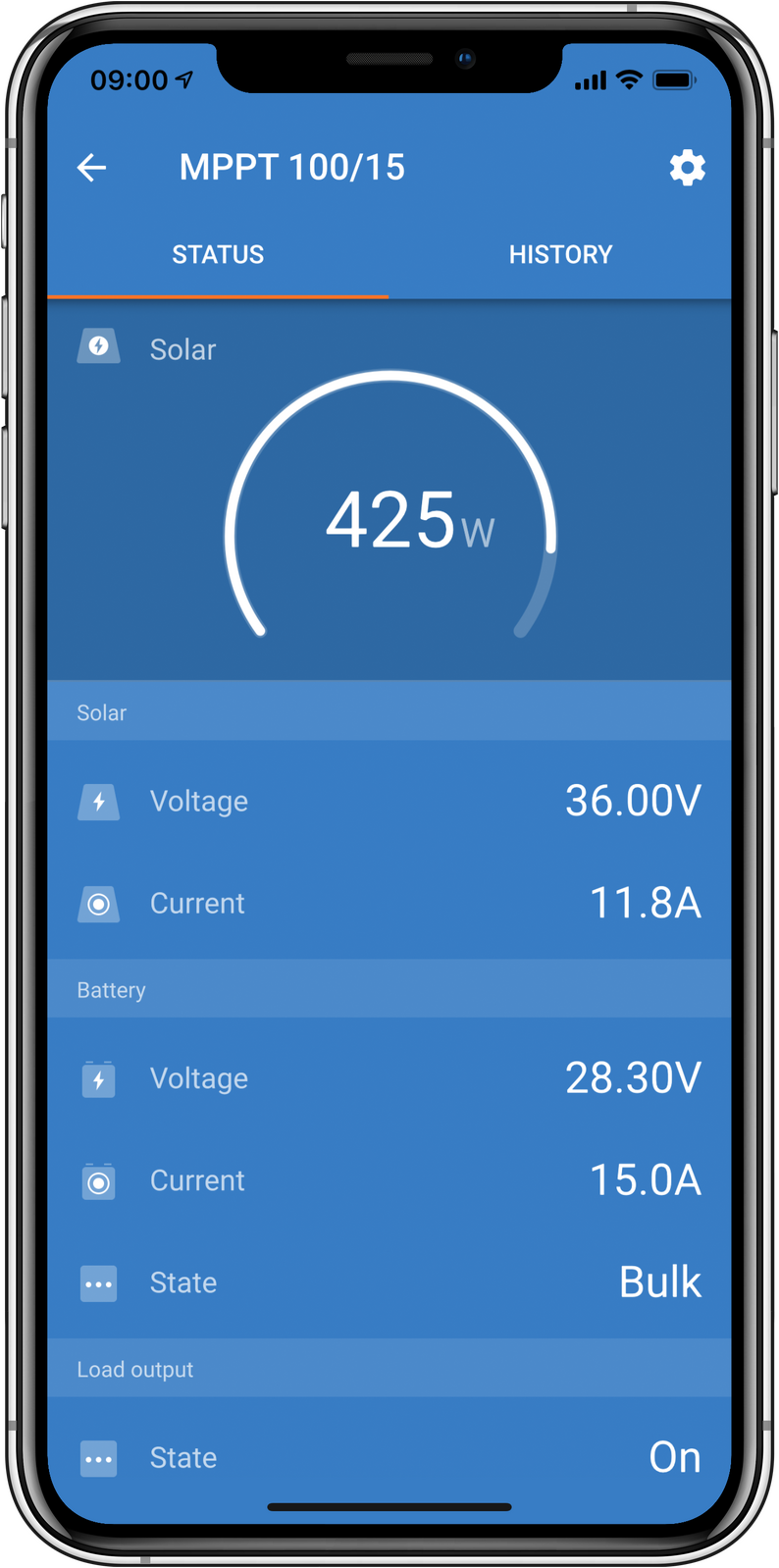

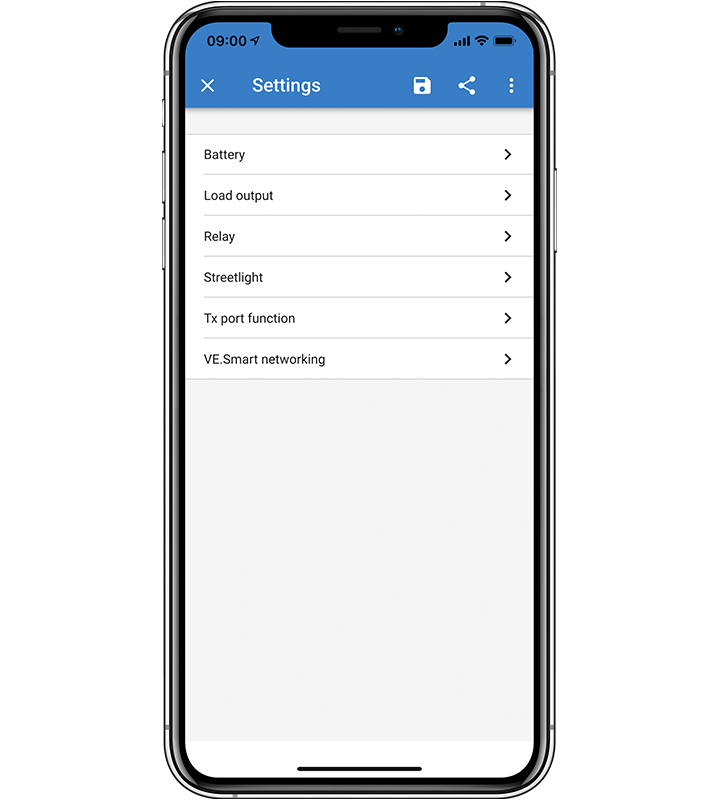

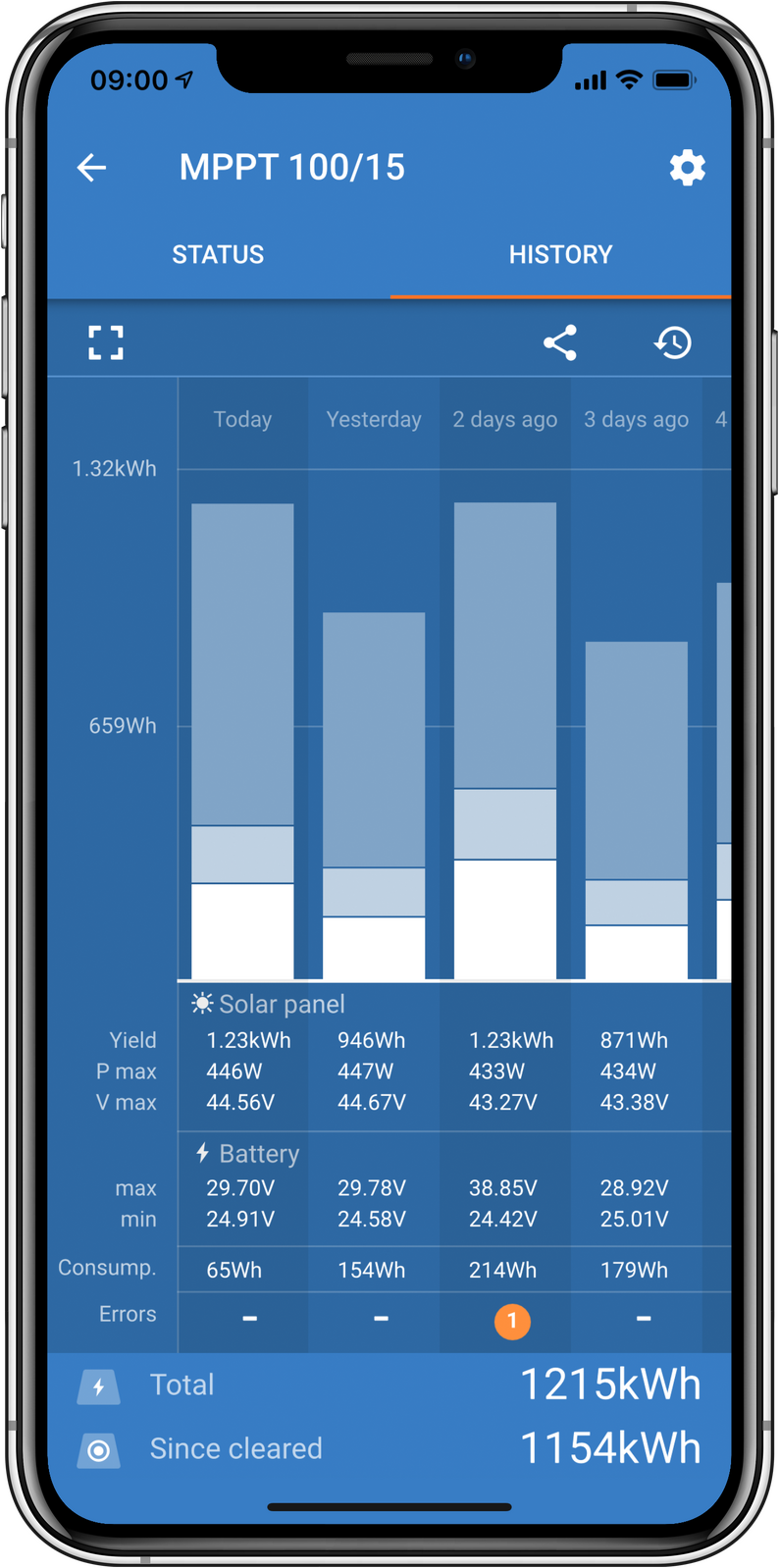

  • Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
Battery Voltage (Auto Select) 12v / 24v
Rated Charge Current 10A
Max. Solar Input 12v Battery 145W
Max. Solar Input 24v Battery 290W
Max. Solar Input 48v Battery N/A
Max. PV Short Circuit Current 13A
Max. PV Open Circuit Voltage 75v
Automatic Load Disconnect YES
Peak Efficiency 98%
Self-Consumption - Load On 12v: 19mA | 24v: 16mA
Self-Consumption - Load Off 12v: 10mA | 24v: 8mA
Charge voltage - Float 13.8v / 27.6v (adj.)
Charge Voltage - Absorption 14.4v / 28.8v (adj.)
Charge Algorithm Multi-Stage Adaptive
Temperature Compensation -16 mV / °C resp. -32 mV / °C
Max. Continuous Load Current 15A
Low Voltage Load Disconnect 11.1v / 22.2v / 44.4v or 11.8v / 23.6v / 47.2v or Battery Life Algorithm
Low Voltage Load Reconnect 13.1v / 26.2v / 52.4v or 14v / 28v / 56v or Battery Life Algorithm
Protection PV Reverse Polarity, Output Short Circuit, Over Temperature
Operating Temperature -30°C to 60°C (Full Output rated up to 40°C)
Humidity 95% non-condensing
Data communication port VE.Direct (see the data communication white paper on the Victron website)
Power Terminals 6 mm² / AWG10
Protection Category IP43 (Electronic Components), IP22 (Connection Area)
Weight 0.5KG
Dimensions (H x W x D) 100 x 113 x 40 mm
SKU 8719076040798
Barcode # SCC075010060R
Brand Victron
Shipping Weight 0.6500kg
Shipping Width 0.150m
Shipping Height 0.060m
Shipping Length 0.150m
Shipping Cubic 0.001350000m3
