With an Australian manufacturing heritage spanning over 60 years, Key Tubing & Electrical has an unsurpassed record of providing cost effective solutions to both national and global organisations.

All marine cable is RoHS compliant and made of Tinned Copper Wire which gives it a considerably longer life cycle.

Voltage Rating = 120V DC / 50V AC - Not for mains connection.

  • APPLICATIONS: Pleasure Craft, General Purpose Marine Wiring
  • CONDUCTOR: TINNED COPPER WIRE (TCW) to AS/NZS 1125
  • INSULATION: RoHS Compliant V90 PVC to AS3808

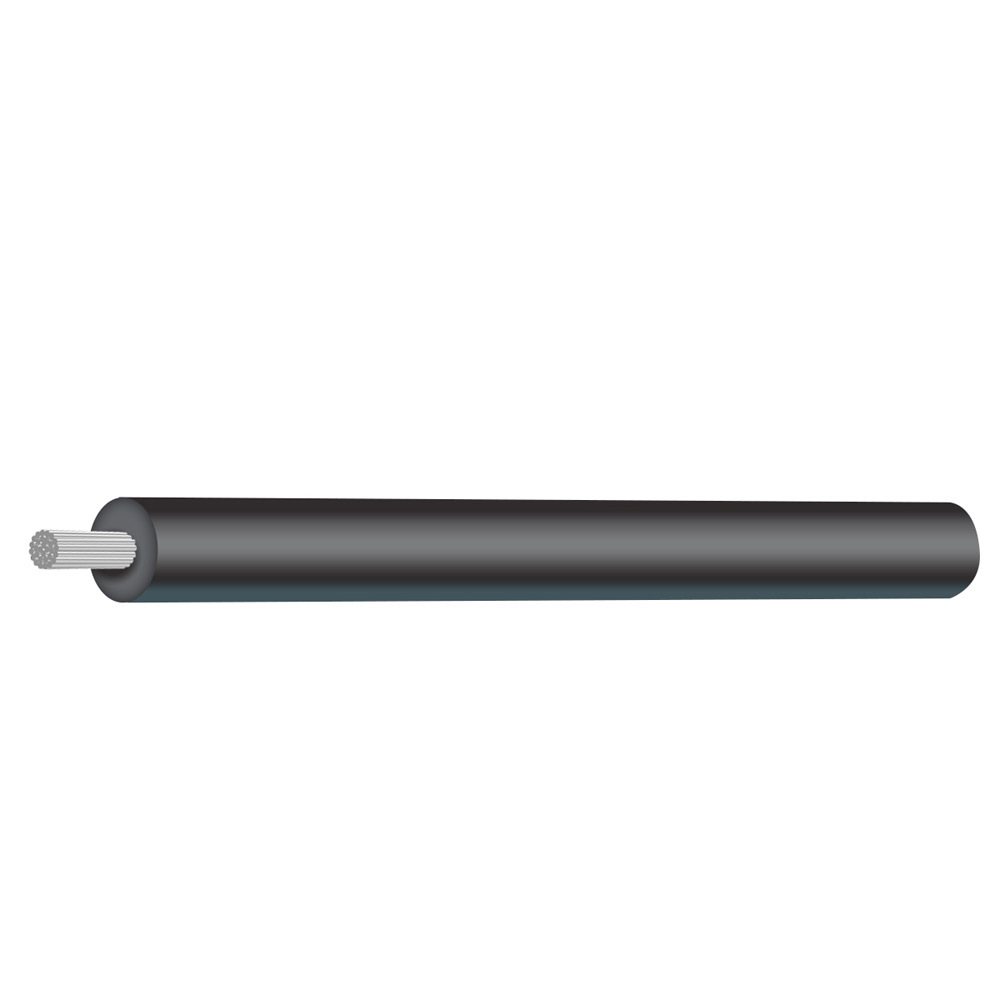

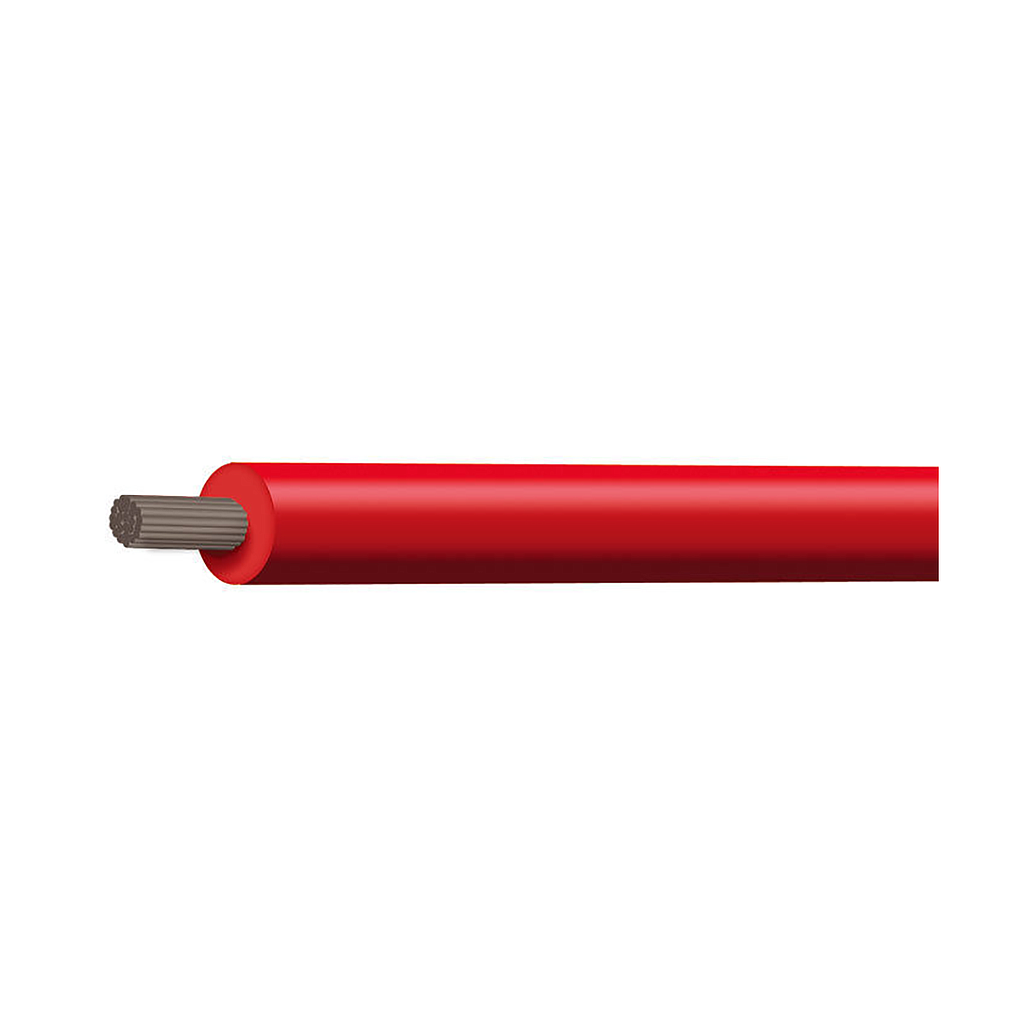

  • CORE COLOUR: Black, Red, stripes by request
  • PACK: Cut to length, 50, 100 metres, other packs by request
Key Tubing Code KM600
Tycab Code MSC16503
Nearest AWG 10 AWG
* MM Industry Equivalent 6mm
Strand No. / Size 57/0.32
Nominal Area (mm²) 4.59mm
**AMP Rating @ 30°C 48 A
Insulation Thickness (mm) 0.4mm
Electrical Resistance @ 20°C (ohm/km) 4.15Ω
Nominal O.D. (mm) 4.0mm
Mass (kg/100m) 5.3kg

* MM is an industry term that identifies cable size and is not CONDUCTOR CROSS SECTION AREA

** AMP RATING: TO JASO D609 de rating factors apply

De-Rating Factors for Bundling of Single Core Cables

No. Of Cables 1 2 3 4 5 6 7 or 8 9 or 10
De-Rating Factor 1.00 0.80 0.70 0.60 0.55 0.5 0.45 0.4

De-Rating Factors for Ambient Temperatures °C

No. Of Cables 30°c 40°c 50°c 60°c 70°c
De-Rating Factor 1.00 0.90 0.76 0.60 0.45



SKU CATIN6MMSINGLE
Brand Key Tubing Electrical
Shipping Weight 0.0530kg
Shipping Width 0.100m
Shipping Height 0.004m
Shipping Length 0.100m
Shipping Cubic 0.000040000m3
