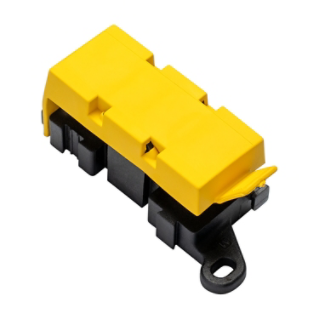

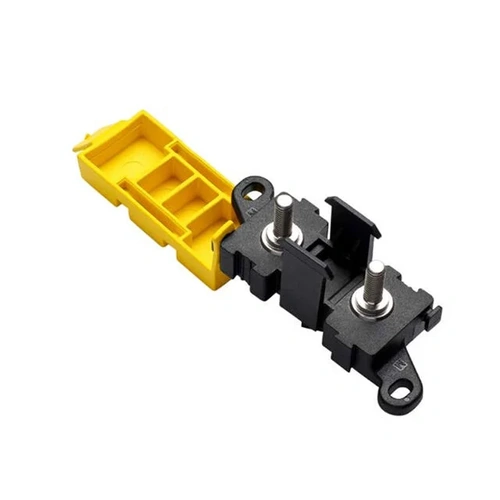

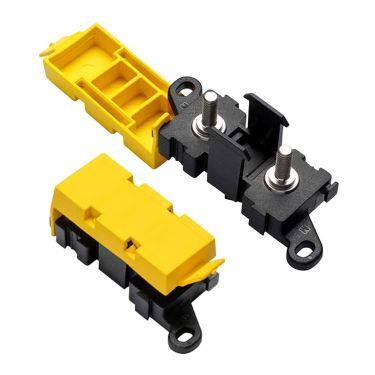

Genuine Bussmann HBAT1-101 Fuse Block Series

The HBAT1-101 fuse holder is designed specifically for the BAT1 fuse series, supporting 58 Vac/dc and up to 200 A. It features:

  • UL94 V-0 flammability-rated materials
  • Operating temperature range: -40 °C to +125 °C
  • Durable construction with HTN and TPV materials
  • Integrated stainless steel M5 studs for secure mounting

This holder is optimized for use in power tools, ESS, and BMS, providing a reliable mechanical interface that complements the BAT1 fuse’s electrical performance. Its rugged design ensures long-term stability and safety in demanding environments.

Optional input stud module and bus bars allow you to provide a common power feed across joined holders using a single cable connected to the input stud module.

A maximum of 6 fuse modules and 1 input stud module can be joined together

Perfect for applications such as; Marine, Construction, Agriculture, Heavy Trucking, Bus and Specialty Vehicles

Fuses not included, available for purchase seperately

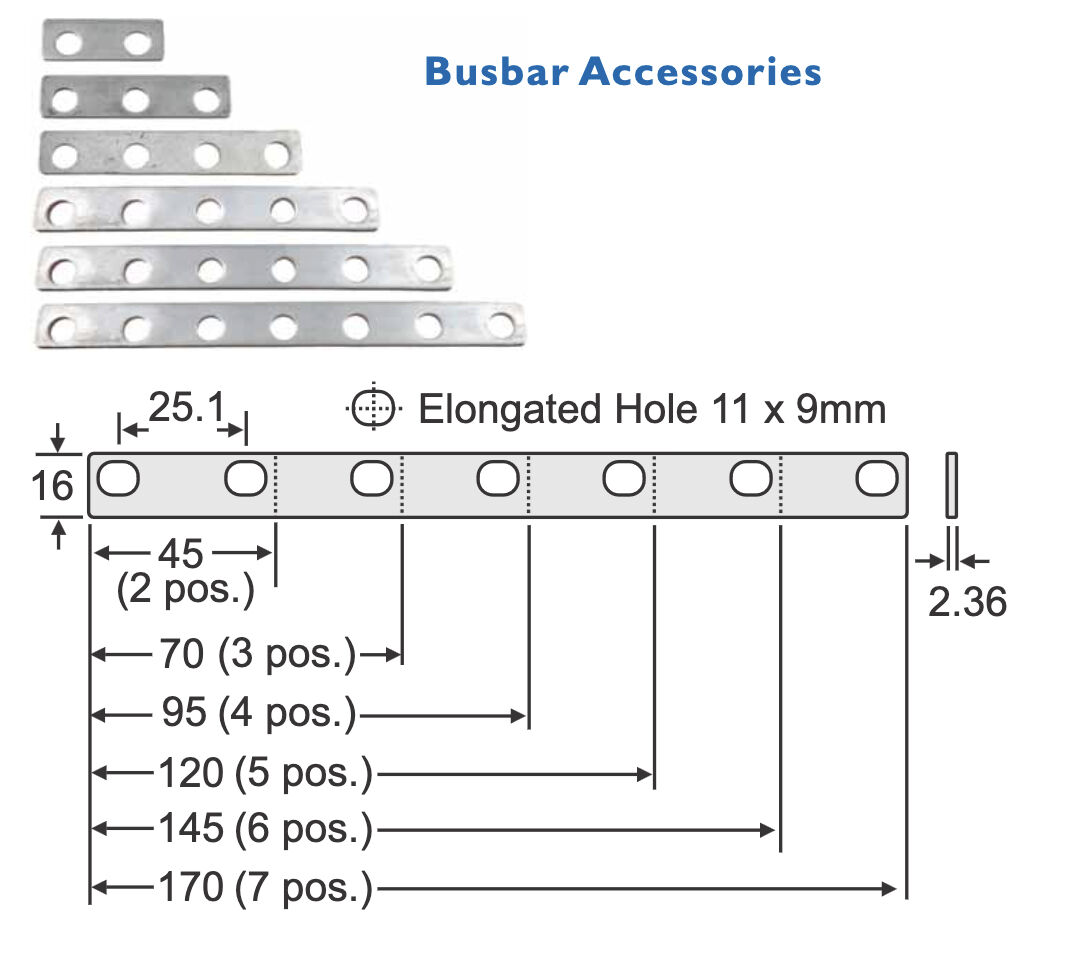

  • Bussmann LMI Input Module
  • Bussmann LMI Busbar 2 Position
  • Bussmann LMI Busbar 3 Position
  • Bussmann LMI Busbar 4 Position
  • Bussmann LMI Busbar 5 Position
  • Bussmann LMI Busbar 6 Position
  • Bussmann LMI Busbar 7 Position
Voltage 58V DC
Rating 200A (Maximum total combined rating is 400 amps continuous)*
Body & Cover Housing: HTN black UL-rated 94V0 thermoplastic material
Cover: Yellow EPDM/Santoprene cover for protection from accidental shorts
Studs Stainless Steel M5 or #10-32 studs
Torque Rating 39.8 in-lbs (4.5Nm)

Maximum Amperage ratings are dependent on use of appropriately sized fuses and wire for a given application.

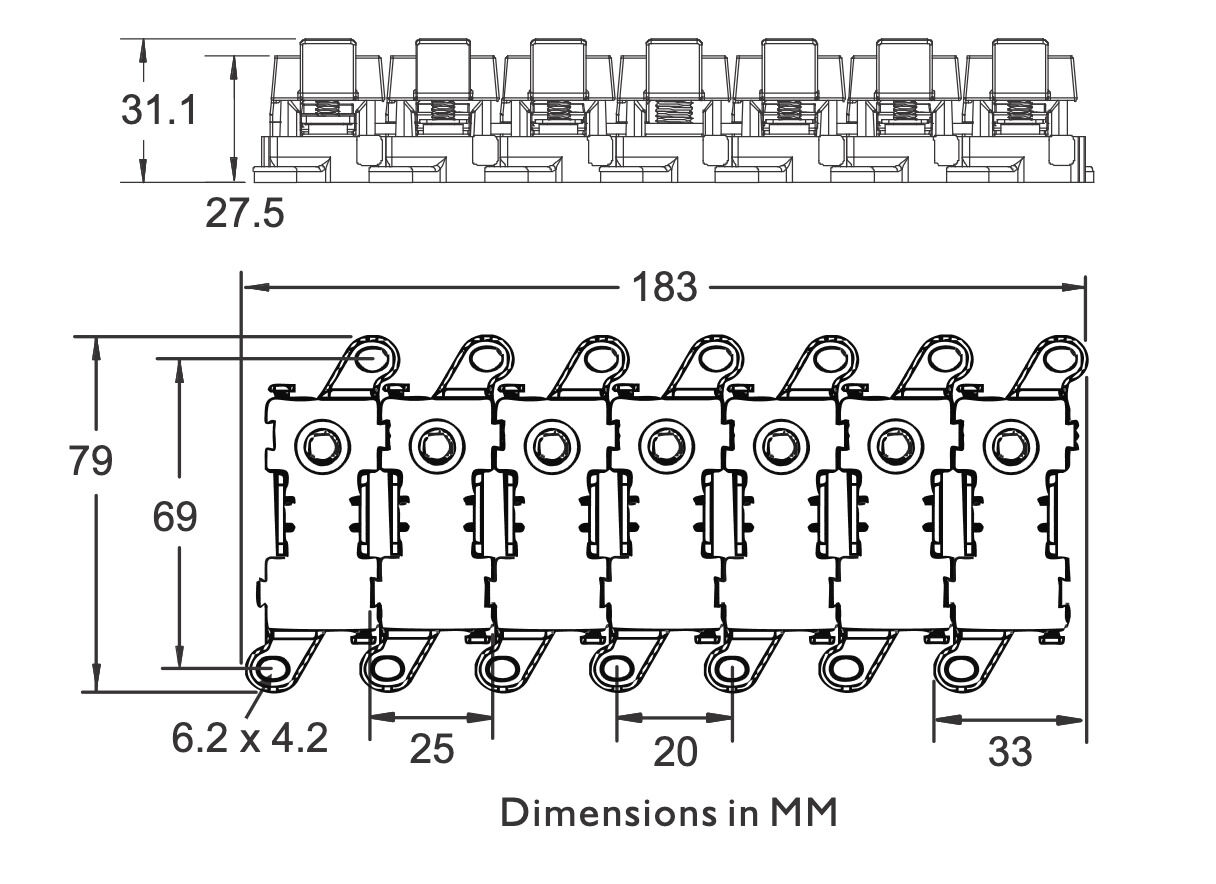

Max of 7 blocks or modules per assembly (6 fuse blocks & 1 input module) One MIDI® fuse block is required for each MIDI® Fuse Input modules and bus bars can be ordered as required. The input module should be located in the center of the assembly for bus bar efficiencies

MIDI® Fuse Block 200A continuous. - Based on numerous variations possible between numbers of poles used, fuses selected, input wiring, and output wiring, all applications should be tested by installer to verify the product meets their requirements.

Maximum total combined rating is 400A



SKU FHMIDI58V
Barcode # HBAT1-101
Brand Bussmann
Shipping Weight 0.1000kg
Shipping Width 0.030m
Shipping Height 0.030m
Shipping Length 0.080m
Shipping Cubic 0.000072000m3
