Universal MULTI Fuse holder bracket – (only)

Enhance your engine bay wiring appearance to a professional standard with our latest ‘ORD’ Multi fuse bracket…

• Fuses / Breakers Sold Separately
• The ORD bracket is cleverly designed to incorporate several types of fuse holders all on the one bracket, so you can choose or change fuse types when ever you need to without the need for purchasing a new bracket…

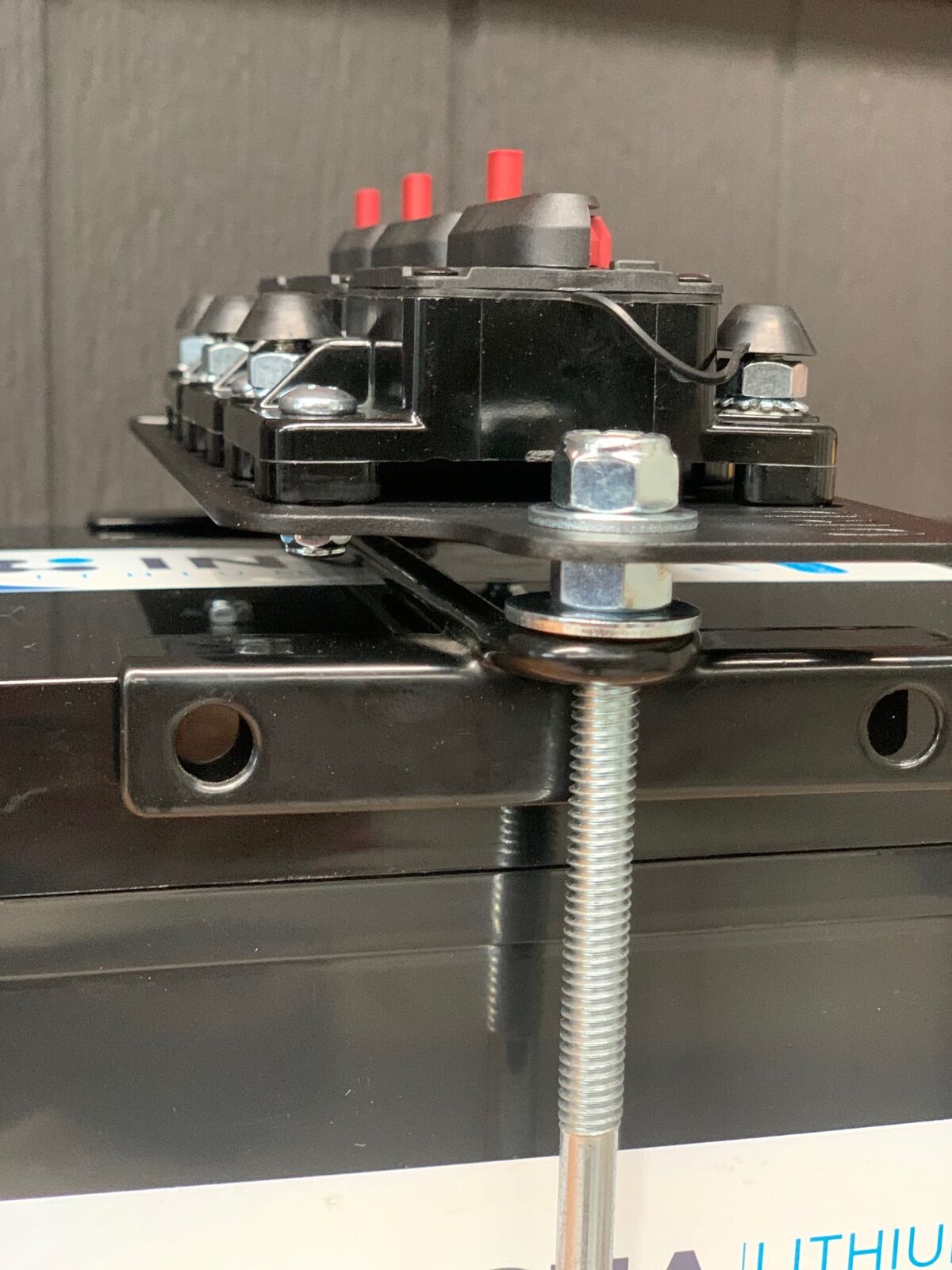

• Universal fitment design which is designed to be mountable between battery clamp rods that are aligned straight on top of battery clamp. (Also suits the slightly wider apart Genuine Toyota battery clamp rods such as Hilux) Note: Bracket will NOT suit Toyota 76 & 79 Series Landcruiser due to restricted bonnet clearance, and we manufacture (2) other mounting bracket options for this model vehicle.

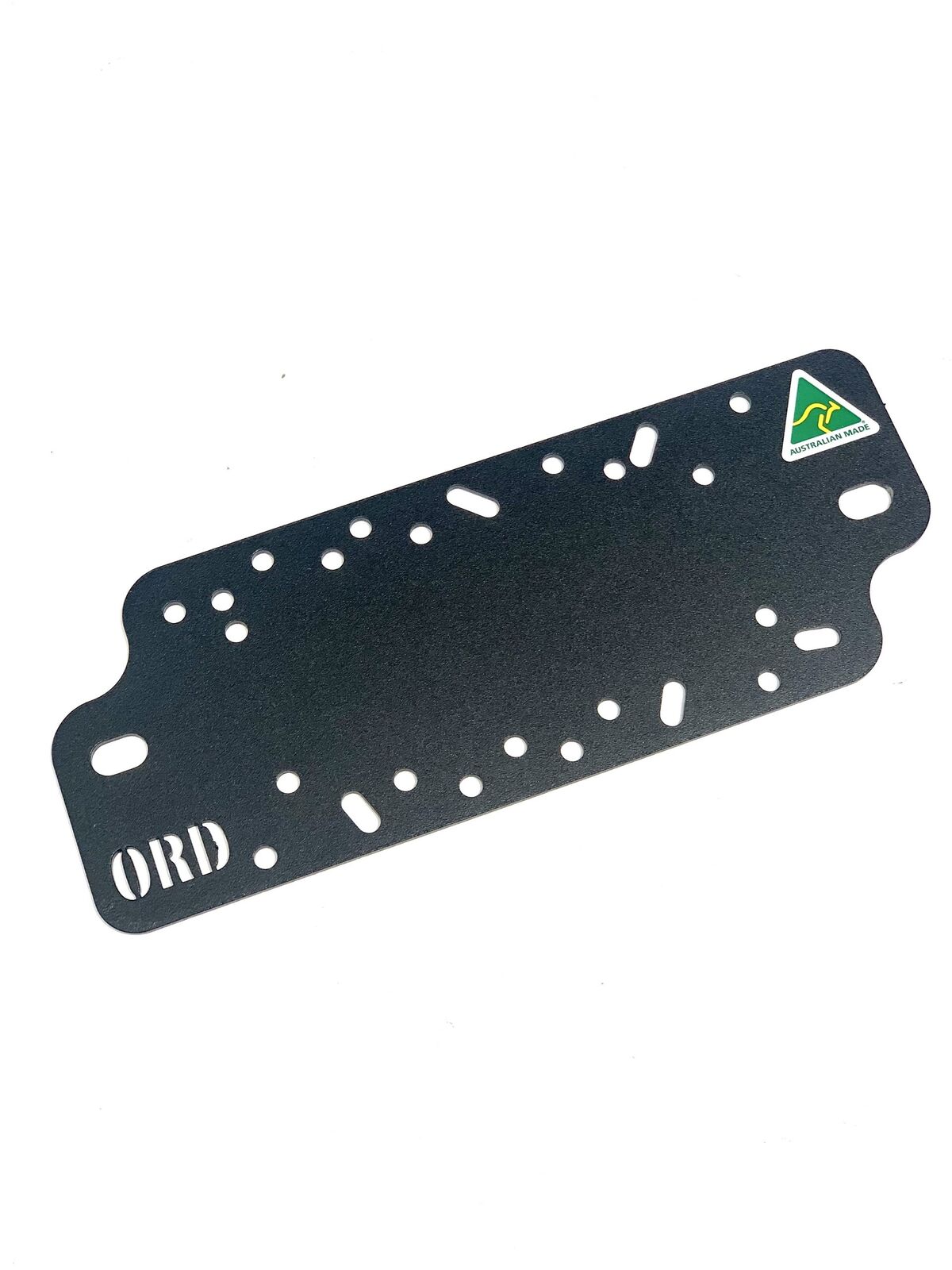

• Bracket total length 220mm long
• Aluminium bracket with premium powder-coating in ORD black.
• Quality product – Designed and manufactured by Off Road Downunder Pty Ltd.
• Registered design number: 202111234 with Certification.
• Australian Made Accreditation Logo

Kit Includes:

• (1) ORD Multi fuse holder bracket
• (8) M5 x 12mm bolts with (8) nylok nuts
• (6) M5 x 16mm bolts
• (2) M8 washers (19mm Dia)
• (2) M8 washers large series (22mm Dia)
• (2) 5/16″ plain zinc nuts
• (2) 5/16″ Nylok nuts

NOTE: Midi fuse holders and fuses sold separately (display purposes only)

*Bolt kits to suit Toyota LandCruiser 200 series are Now Available in checkout! Suits both Genuine Toyota battery clamp and Off Road Downunder manufactured battery clamp.

*Installers must check bonnet clearances to ensure components will suit prior to purchasing.

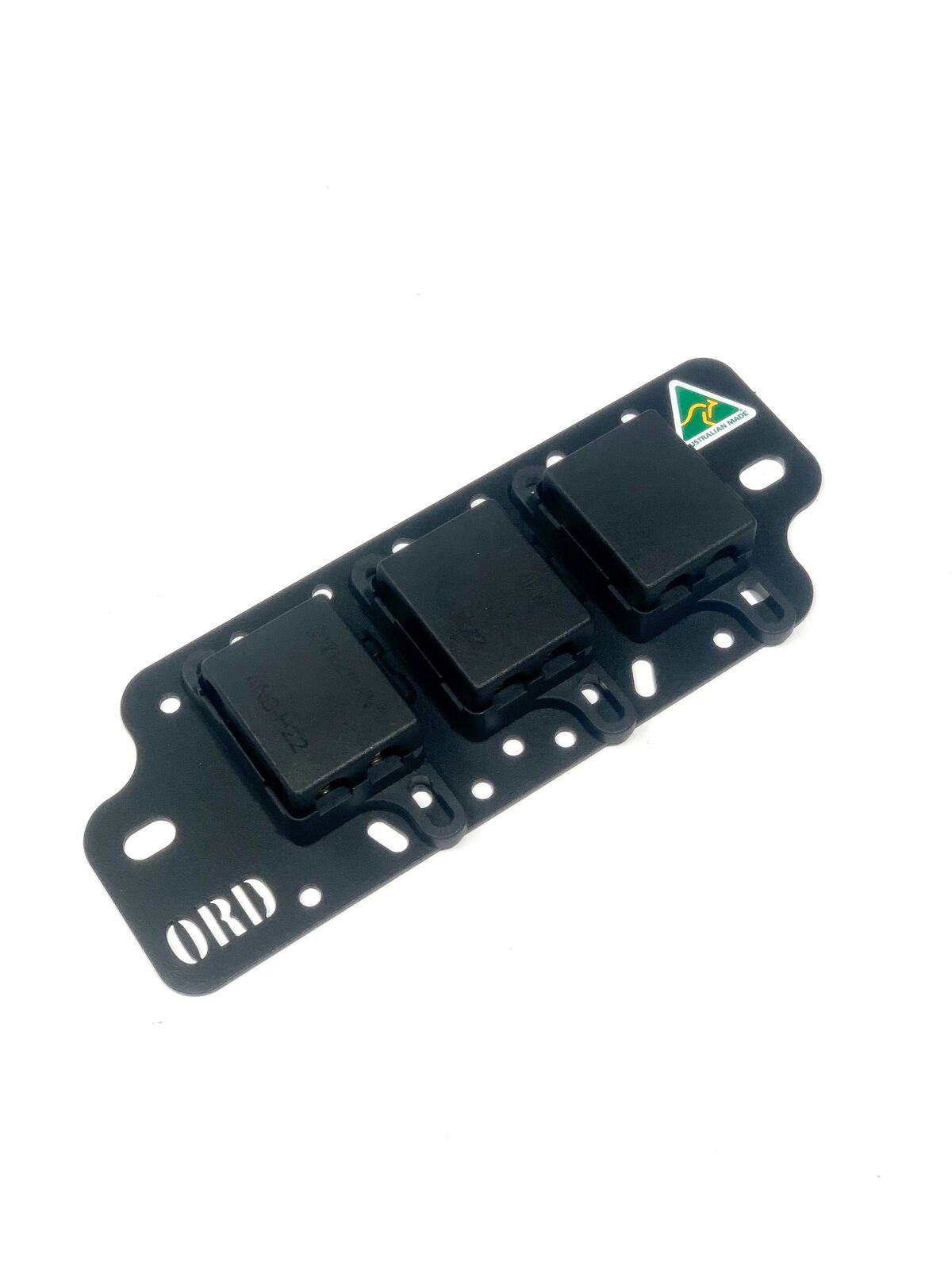

(Five) fuse mounting options on the ORD multi bracket as per examples below:

Option 1:

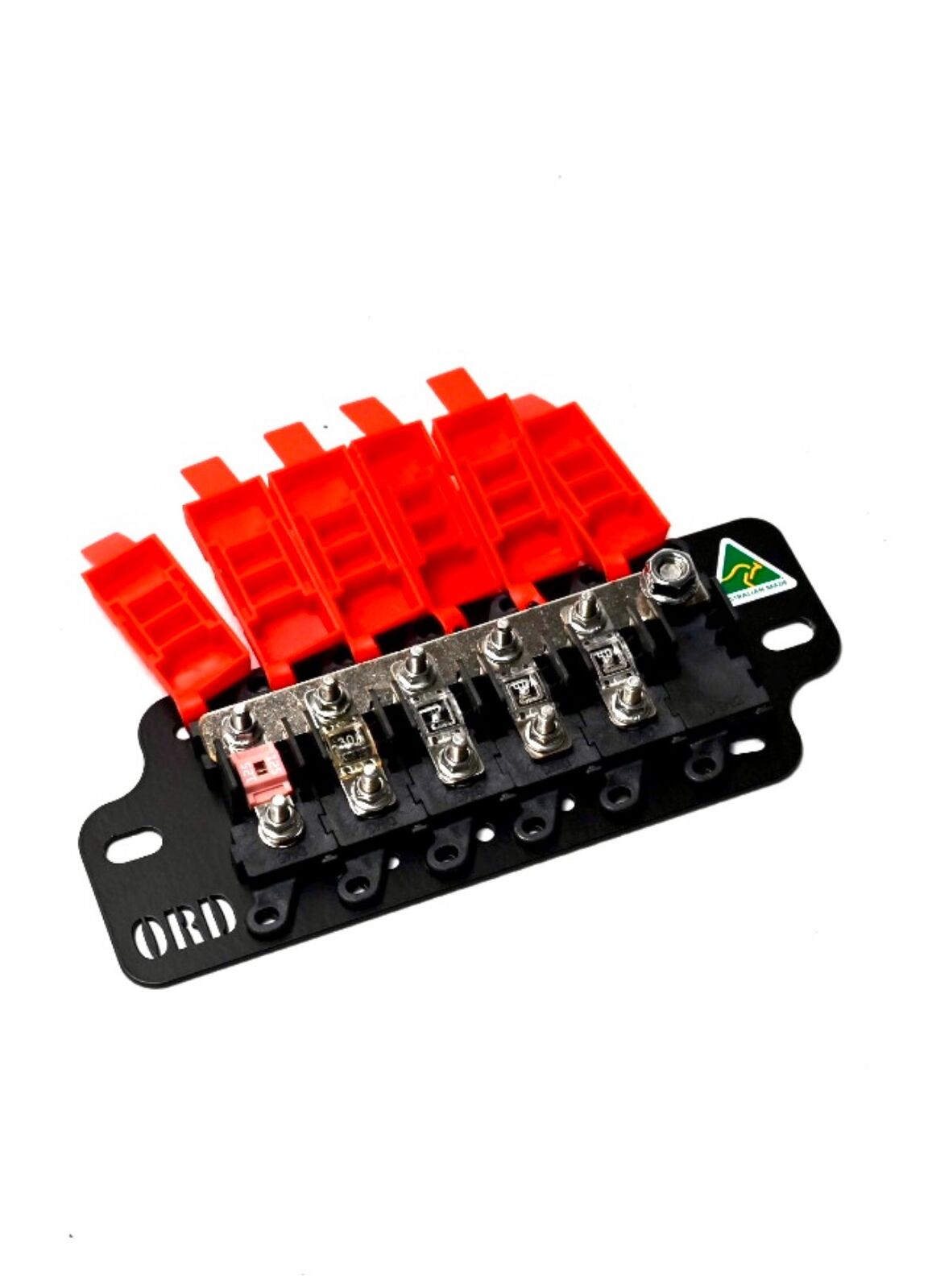

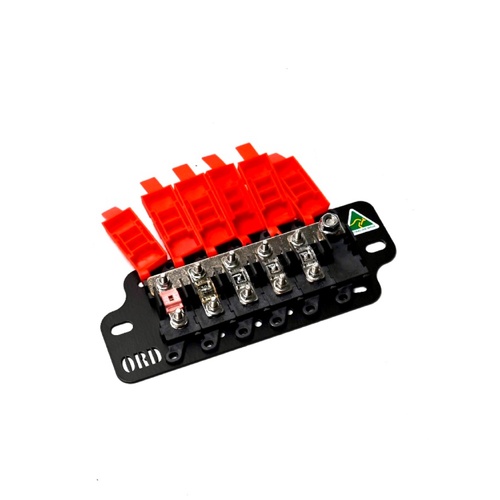

(6) x BUSSMANN LMI MODULAR MIDI FUSE HOLDER – Sold Separately

OR (5) X IF YOU USE MAIN (+) INPIT MODULE WITH BUSSBAR LINK

Option 2:

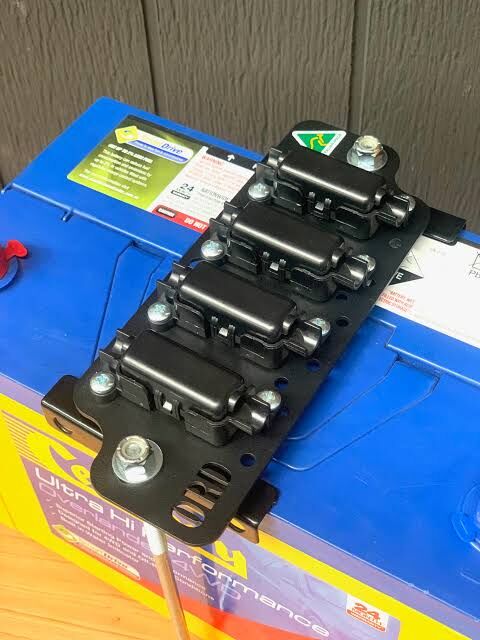

(4) x MTA / OEX MIDI FUSE HOLDER

Option 3:

(3) x NARVA / OEX TWIN MIDI FUSE HOLDERS = (6) x circuits

Option 4:

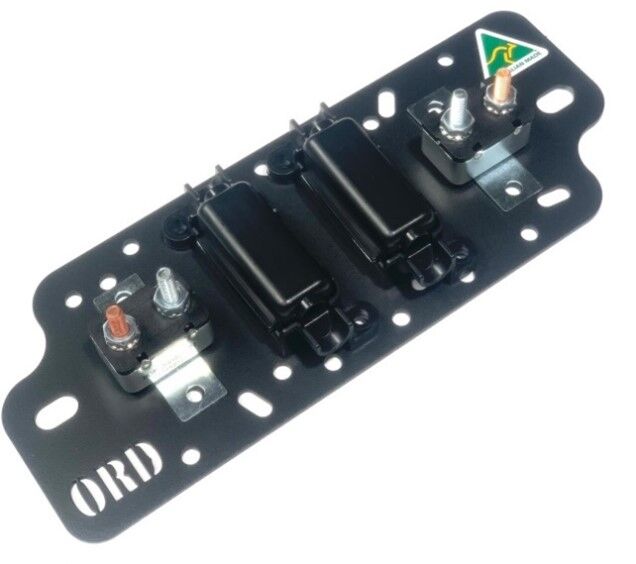

(2) x MTA / OEX MIDI FUSE HOLDER + (2) x BUSSMANN 12X SHORTSTOP BREAKERS

Option 5:

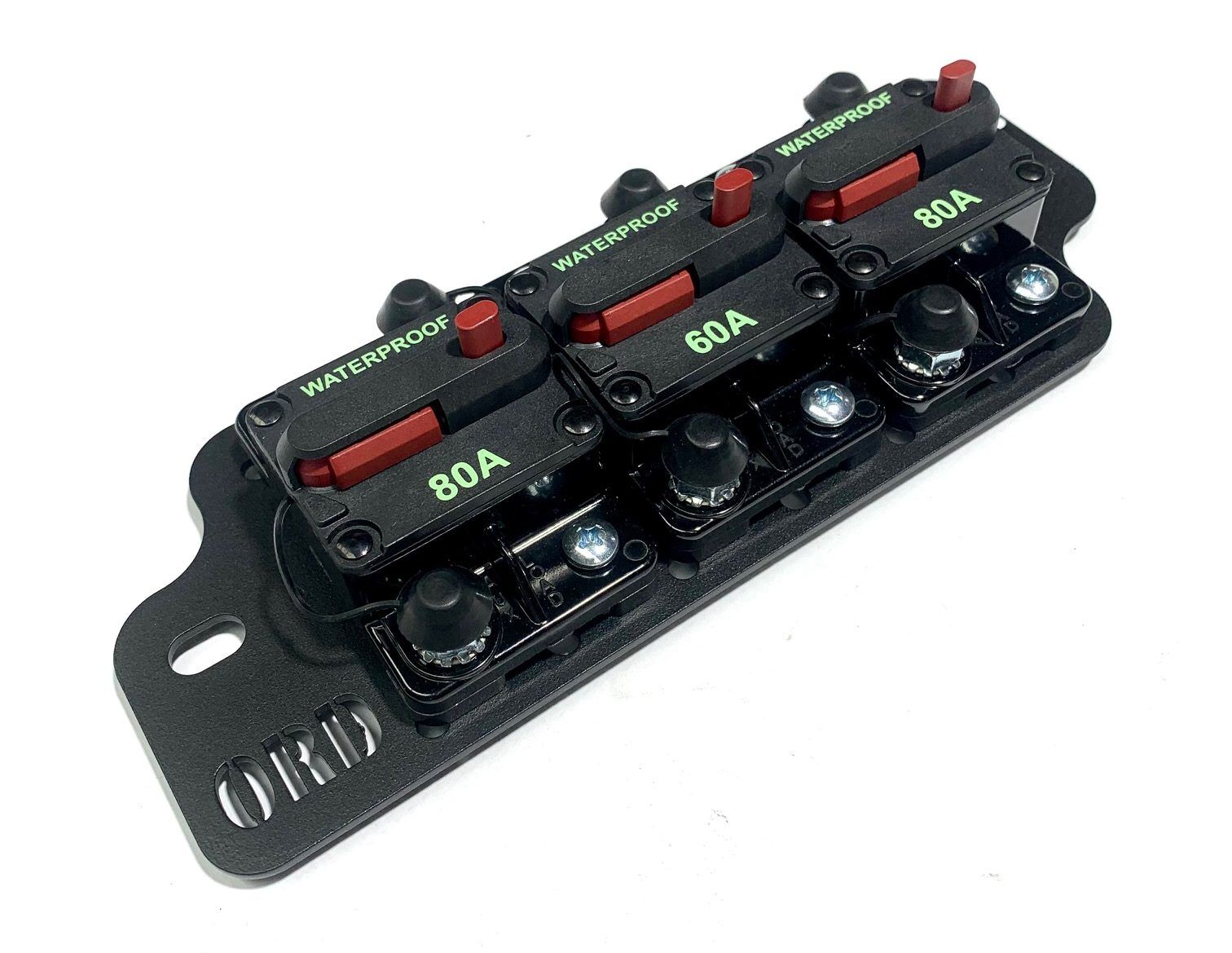

(3) x BUSSMANN 285 SERIES BREAKERS
