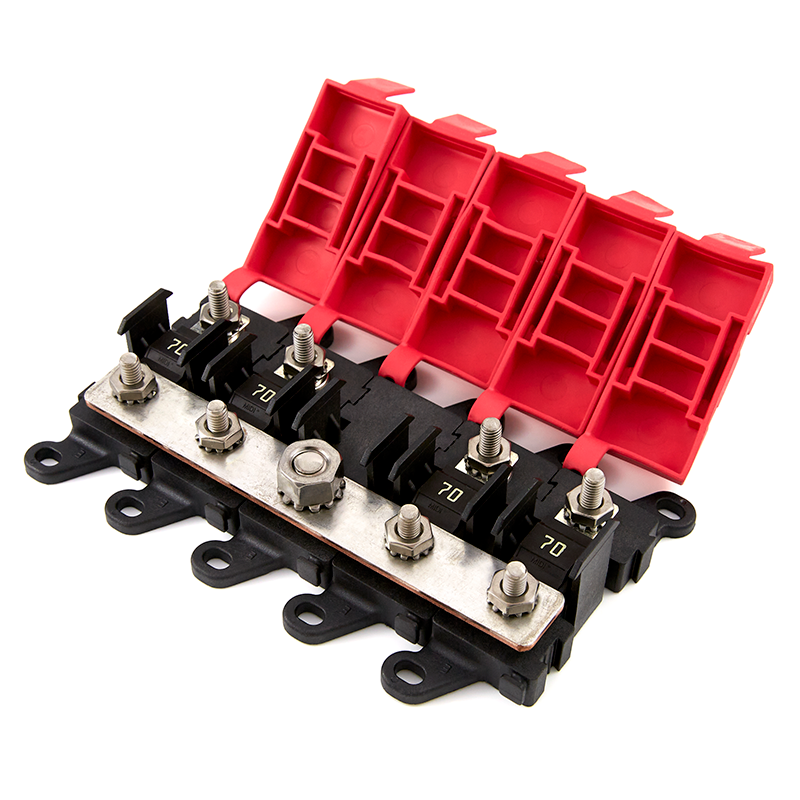

Bussmann LMI input stud module and bus bars allow you to provide a common power feed across joined holders using a single cable connected to the input stud module.

Max of 7 blocks or modules per assembly (6 fuse blocks & 1 input module) One MIDI® fuse block is required for each MIDI® Fuse Input modules and bus bars can be ordered as required. The input module should be located in the center of the assembly for bus bar efficiencies

Perfect for applications such as; Marine, Construction, Agriculture, Heavy Trucking, Bus and Specialty Vehicles

Fuses not included, available for purchase seperately

  • Bussmann LMI Input Module
  • Bussmann LMI Busbar 2 Position
  • Bussmann LMI Busbar 3 Position
  • Bussmann LMI Busbar 4 Position

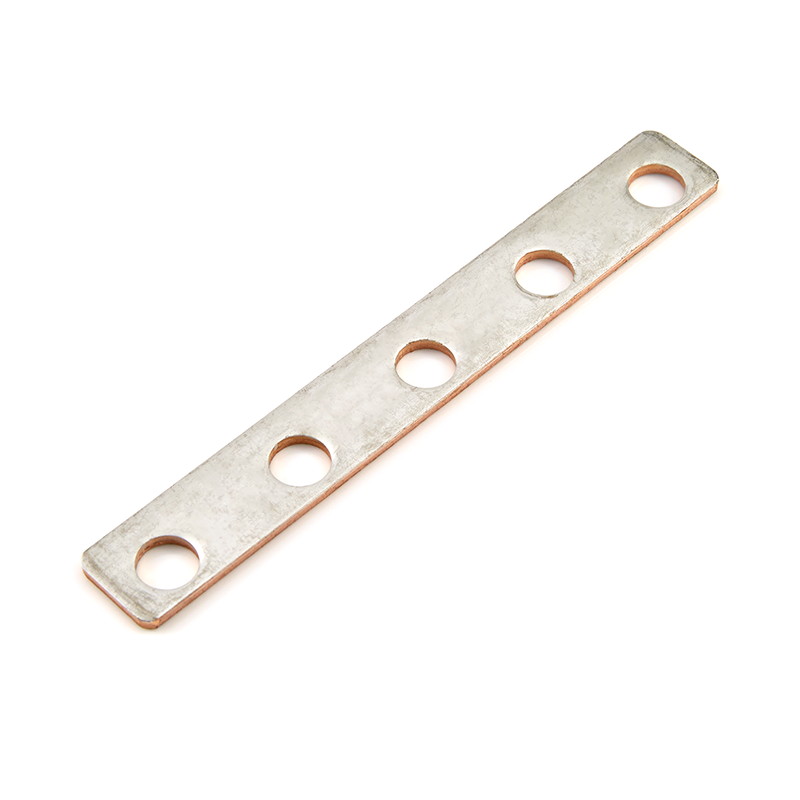

  • Bussmann LMI Busbar 5 Position
  • Bussmann LMI Busbar 6 Position
  • Bussmann LMI Busbar 7 Position

MIDI® Fuse Block 200A continuous. - Based on numerous variations possible between numbers of poles used, fuses selected, input wiring, and output wiring, all applications should be tested by installer to verify the product meets their requirements.

Maximum total combined rating is 400A


Barcode # B109-7046-5
Brand Bussmann
Shipping Weight 0.0100kg
Shipping Width 0.125m
Shipping Height 0.005m
Shipping Length 0.020m
Shipping Cubic 0.000013000m3
