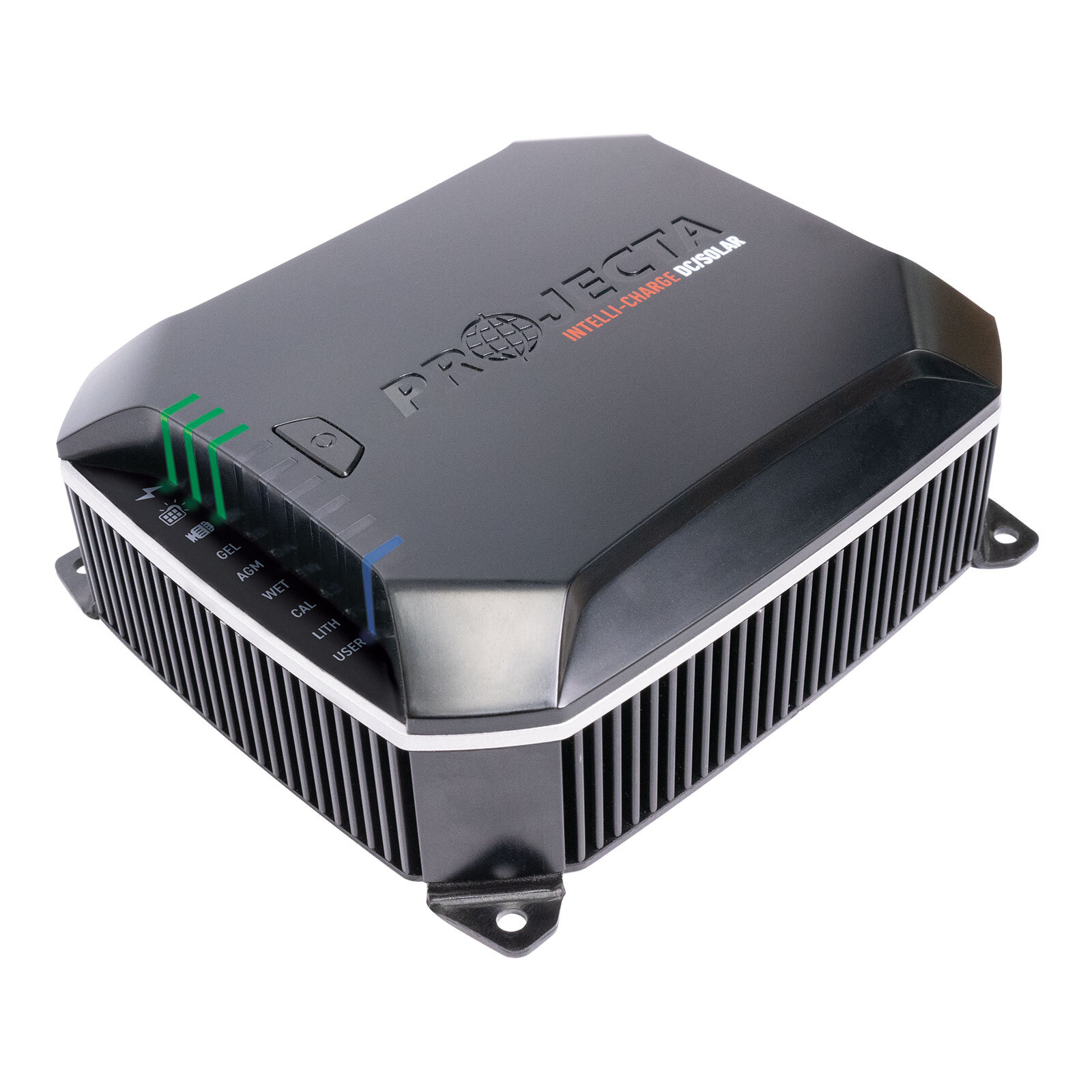

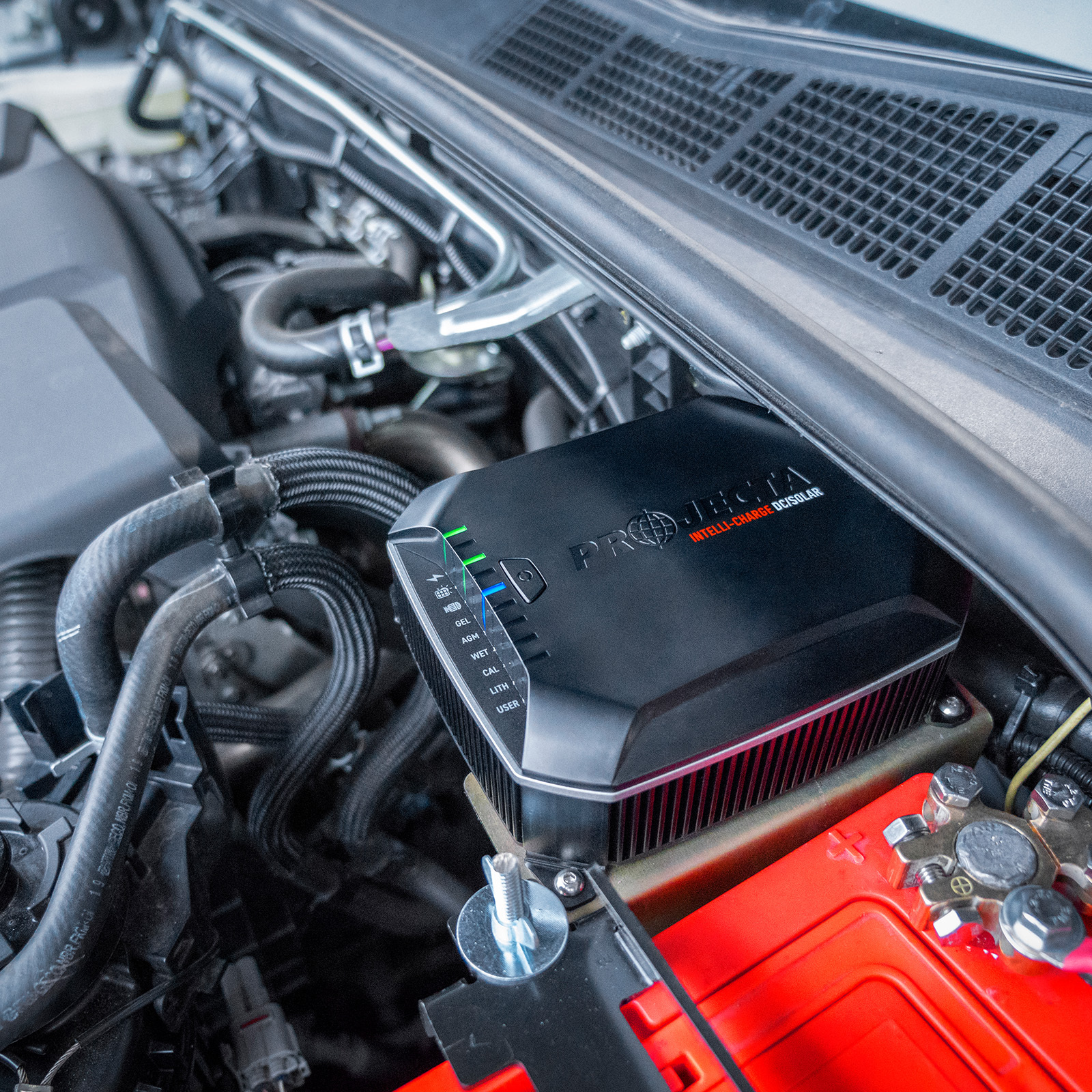

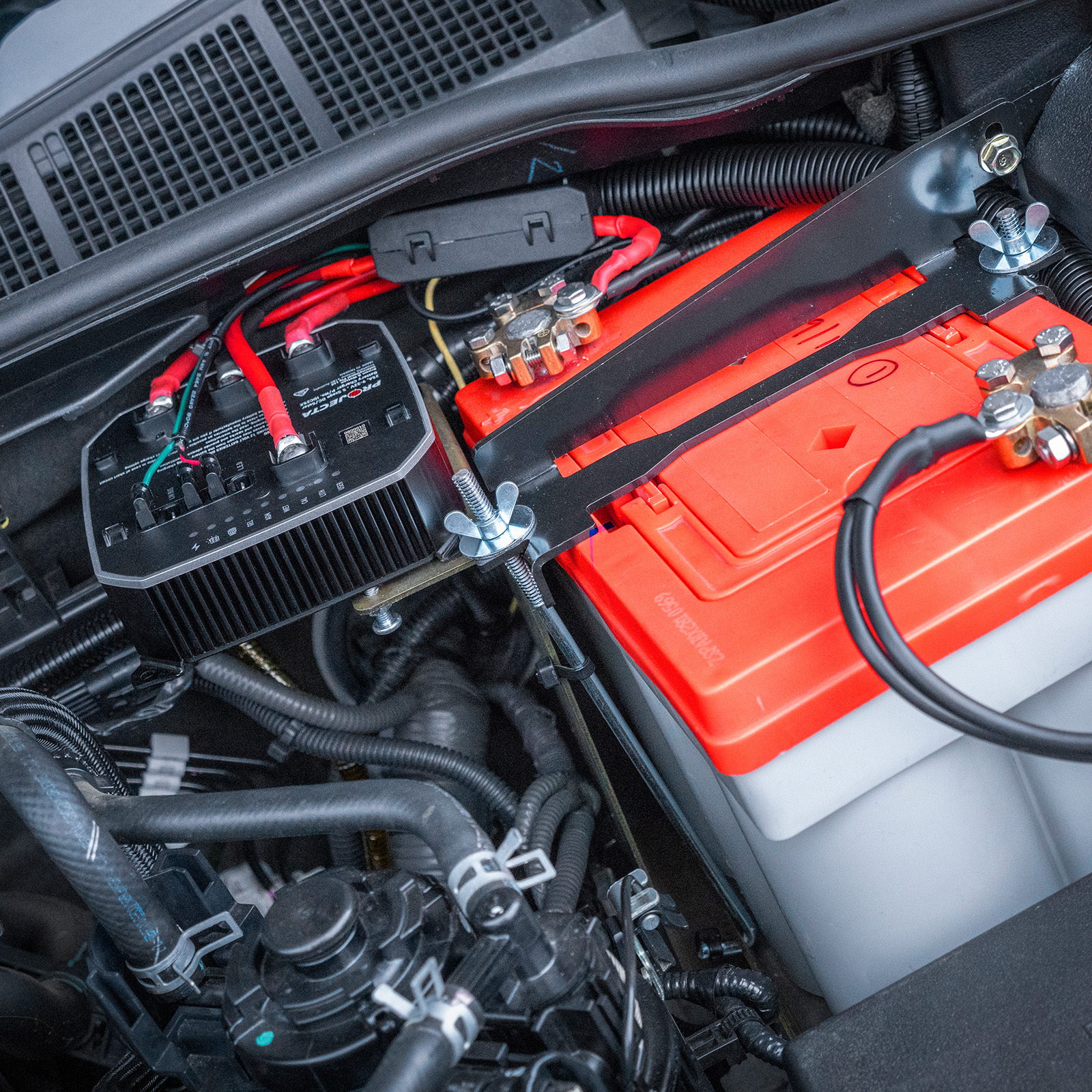

Projecta's next-generation Intelli-Charge DC to DC Dual Battery Charger, or IDC25X, can be conveniently mounted in engine bays and subjected to harsh vibration, high pressure water spray and extreme temperatures without risk of failure. Being vibration-proof, shock-proof, and meeting IP68 & IP69K water and dust ingress standards, it is highly durable and engineered to pass heavy vehicle standards.

With circuitry that has been fully potted with top-quality thermal epoxy resin, heat is effectively dissipated from the electronics to the outer housing, resulting in a more efficient operation. This ensures IDC25X keeps charging at a maximum 25A, even in hot temperatures up to 75°C. Testing shows the closest competitor only provides maximum charge to 55°C.

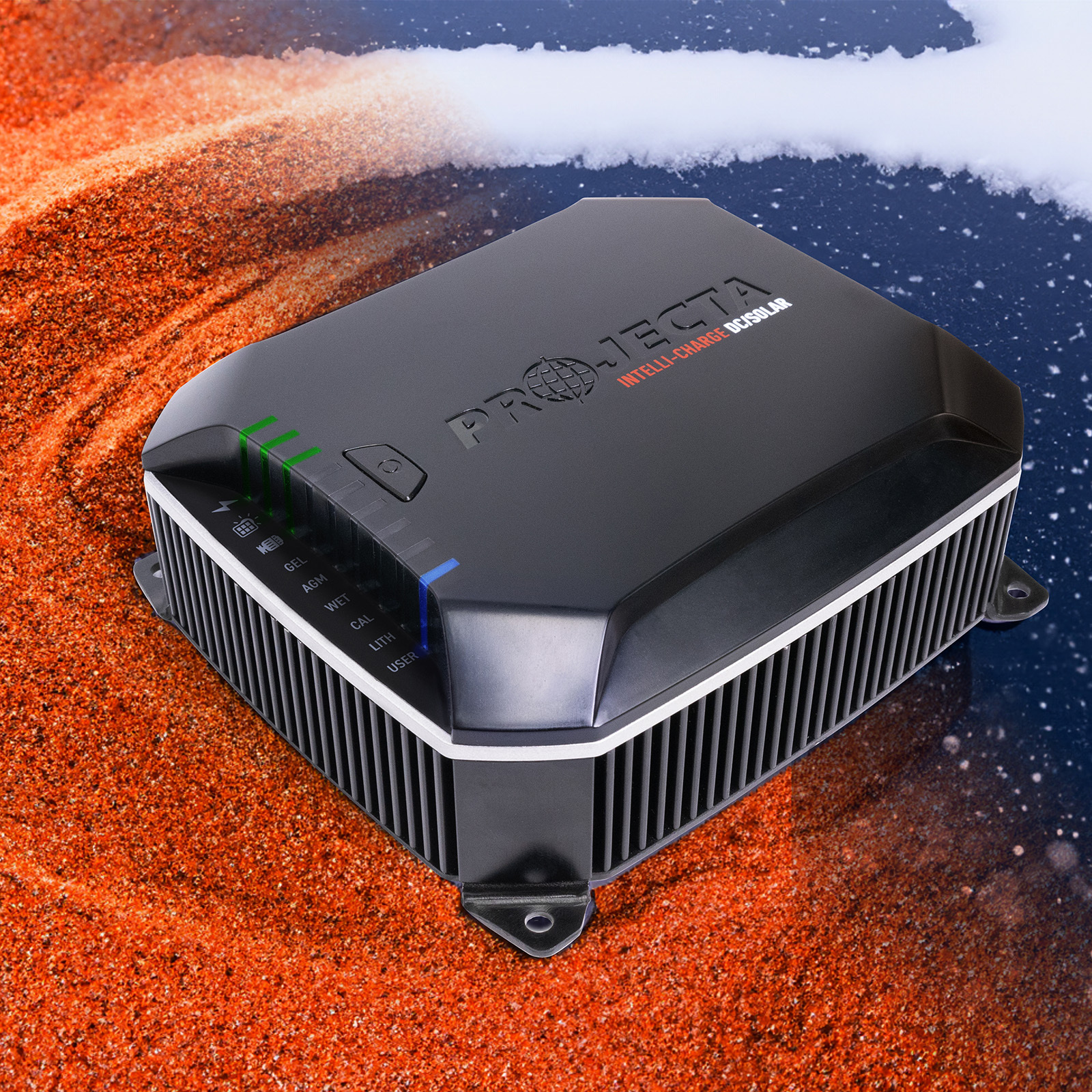

WORKS HARDER IN TOUGHER CONDITIONSWORKS HARDER IN TOUGHER CONDITIONS - This super-efficient design is engineered to perform reliably in hot conditions, with a maximum charging capacity of 75°C. It operates up to 90°C, ideal for under-the-bonnet use. It offers the highest level of protection against dust, water, and pressure washing (IP68 & IP69K). Fully potted with thermal epoxy resin, it ensures durability and resistance..



WILL NOT LET YOU DOWN IN REMOTE LOCATIONS Proudly designed and tested in Australia, this product offers high quality and reliability. It utilizes top-notch electronic components for an extended lifespan. Its ultra-efficient power conversion maximizes battery charging while reducing strain on the charger, ensuring longevity. Engineered to meet heavy vehicle standards, it is resistant to vibration and shock. Backed by a 5-year warranty, it provides peace of mind.WILL NOT LET YOU DOWN IN REMOTE LOCATIONS - Proudly designed and tested in Australia, this product offers high quality and reliability. It utilizes top-notch electronic components for an extended lifespan. Its ultra-efficient power conversion maximizes battery charging while reducing strain on the charger, ensuring longevity. Engineered to meet heavy vehicle standards, it is resistant to vibration and shock. Backed by a 5-year warranty, it provides peace of mind.



PROVIDES THE BEST POSSIBLE CARE FOR YOUR BATTERY - Utilizes 3 and 5 stage charging for fast and effective charging. It adjusts the charge with automatic temperature compensation, optimizes performance in different climates. Voltage drop compensation ensures accurate charge voltage. It supports simultaneous charging with solar and alternator inputs. The charger employs efficient MPPT solar charging for optimal performance, even in shaded areas. It also includes a convenient lithium wake-up mode for one-button charging activation, even if the battery's BMS is off.

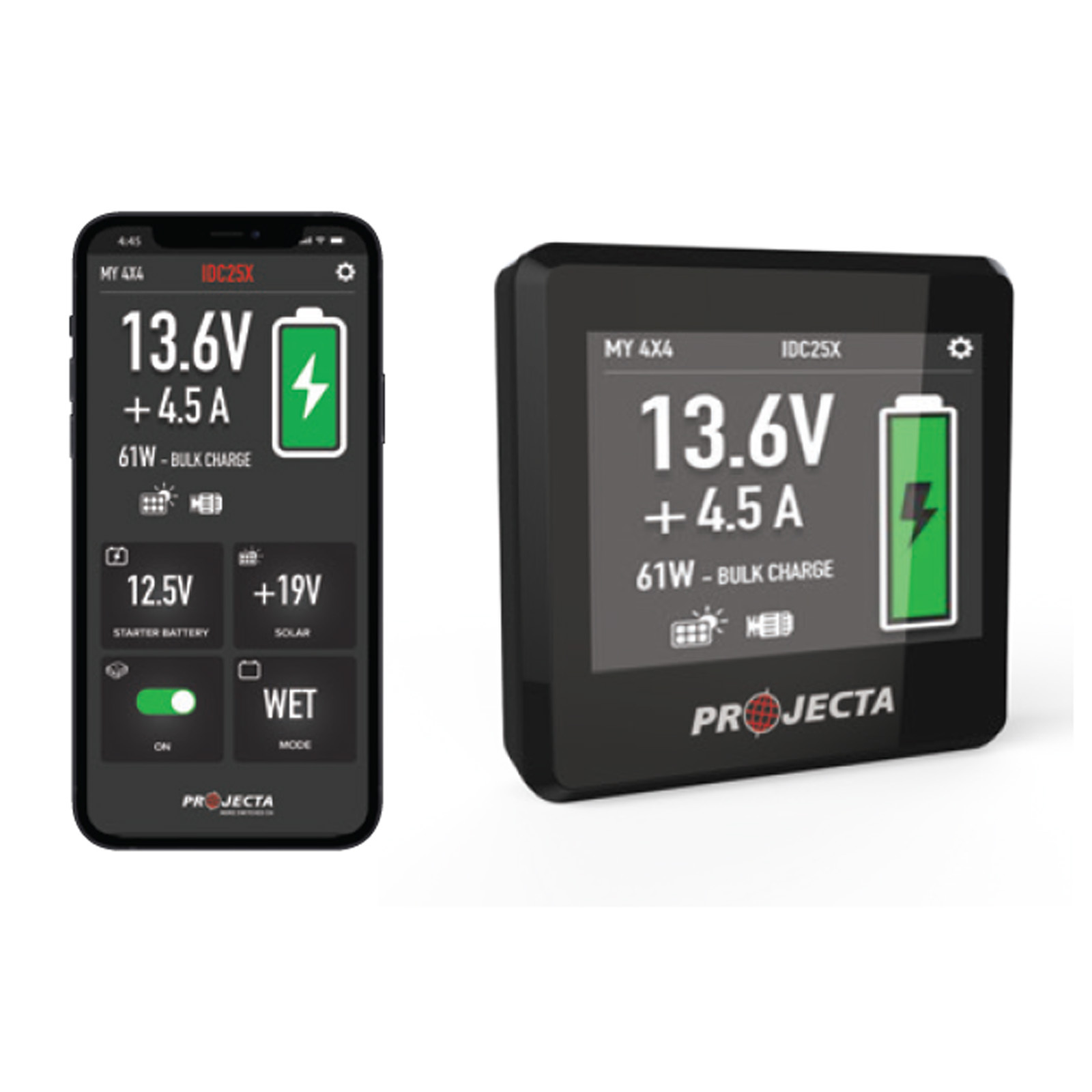

MOST CONNECTED DC/DC CHARGER - The Projecta Intelli-IQ is a compatible companion for this product. It enables users to conveniently set up, monitor, and control the device remotely. Accessible through a smartphone or the Intelli-IQ interface, it offers a user-friendly experience. The setup process is made simple with single wire connectivity. Additionally, the app provides the option for firmware upgrades, ensuring the device stays up-to-date with the latest features and improvements.

Alternator Input Voltage 9-32V DC
Maximum Solar Input Voltage 32V DC
Solar Controller Type MPPT
Standby Current 8mA
Suits Smart Alternator Yes
Maximum Input Current 35A
Output Currant 9-11V DC: 20A | 11-32V: 25A
Protection Reverse Connection, Over & Under Voltage, Over Temperature
Operating Temperature -10°C to + 90°C
Charger De-rating Temperature e.g. 25A up to 75°C
Max, Charger Temperature 75°C
Display Optional IQD2
Battery Chemistry GEL, AGM, WET, CALCIUM & LiFePO4
Recommended Input Fuse 50A (Not Supplied)
Recommended Output Fuse 50A (Not Supplied)

VSR Mode - Default (Ignition Overide Not Connected)

12V DC - Turn On: 13.4-16.5VDC | Turn Off: 12.8VDC

24V DC - Turn On: 26.8-32.0VDC | Turn Off: 25.6VDC

Low Voltage Mode - Default (Ignition Overide Cable Connected to Ignition Switch)

12V DC - Turn On: 12.2-16.5VDC | Turn Off: 11.9VDC

24V DC - Turn On: 24.4-32.0VDC | Turn Off: 23.8VDC



SKU 9315219004796
Barcode # IDC25X
Brand Projecta
Shipping Weight 1.6000kg
Shipping Width 0.280m
Shipping Height 0.100m
Shipping Length 0.180m
Shipping Cubic 0.005040000m3
