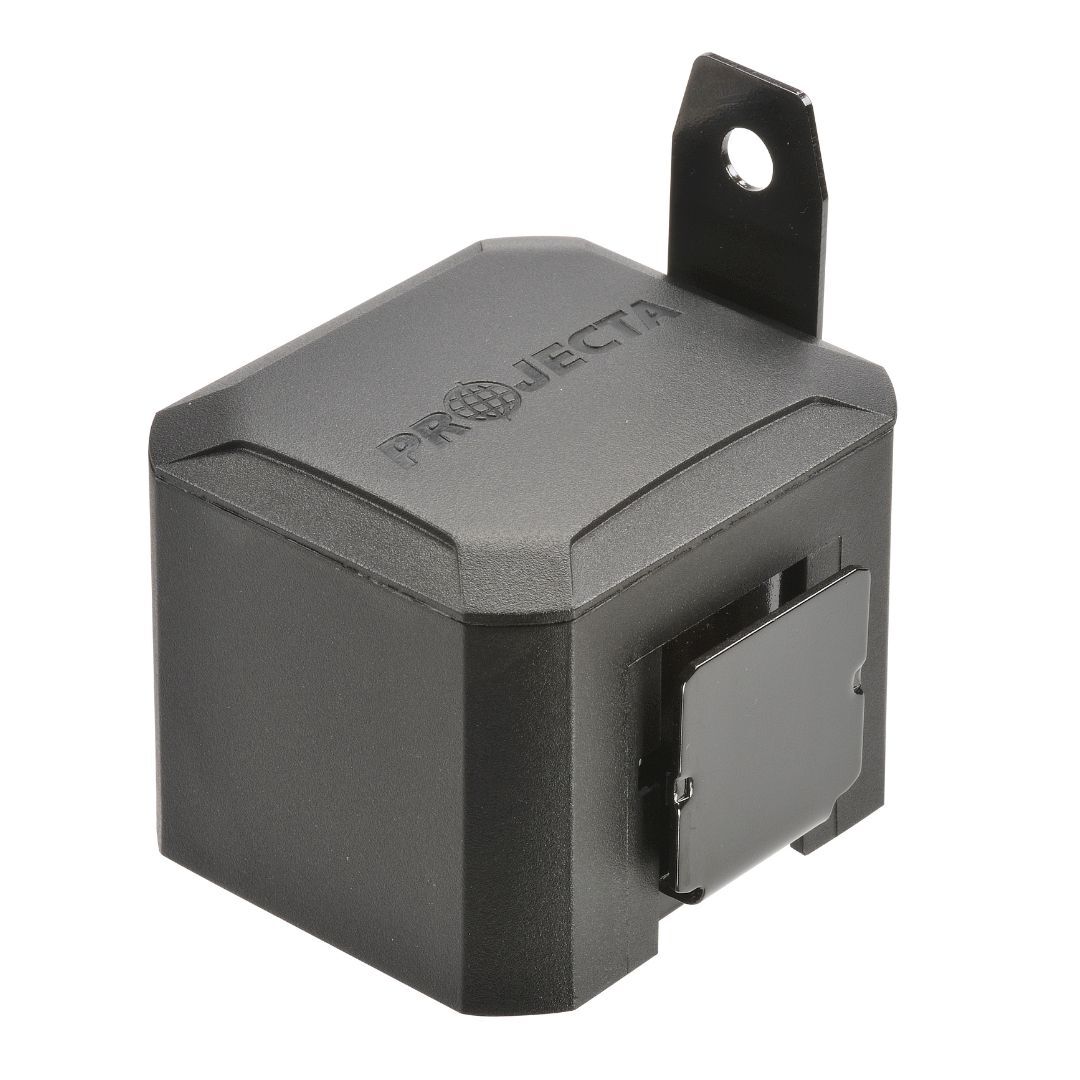

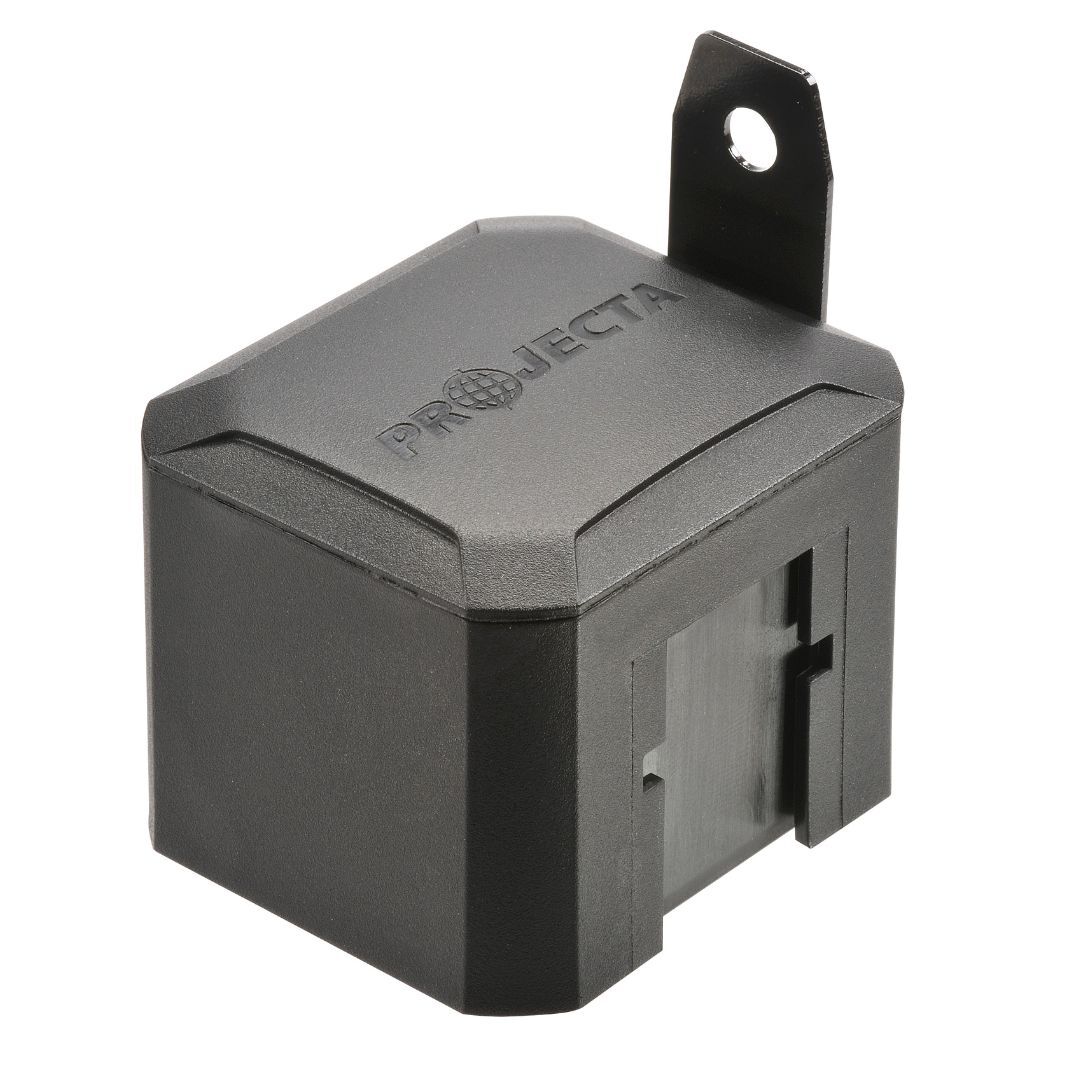

A fully programmable relay that turns any device in the DC system into a smart device. The relays can also monitor both current and voltage, allowing activation at user-defined levels. Suitable for use with starter or auxiliary batteries. Compatible with smart functionality when paired with a 2" Smart Display (p/no IQD2).

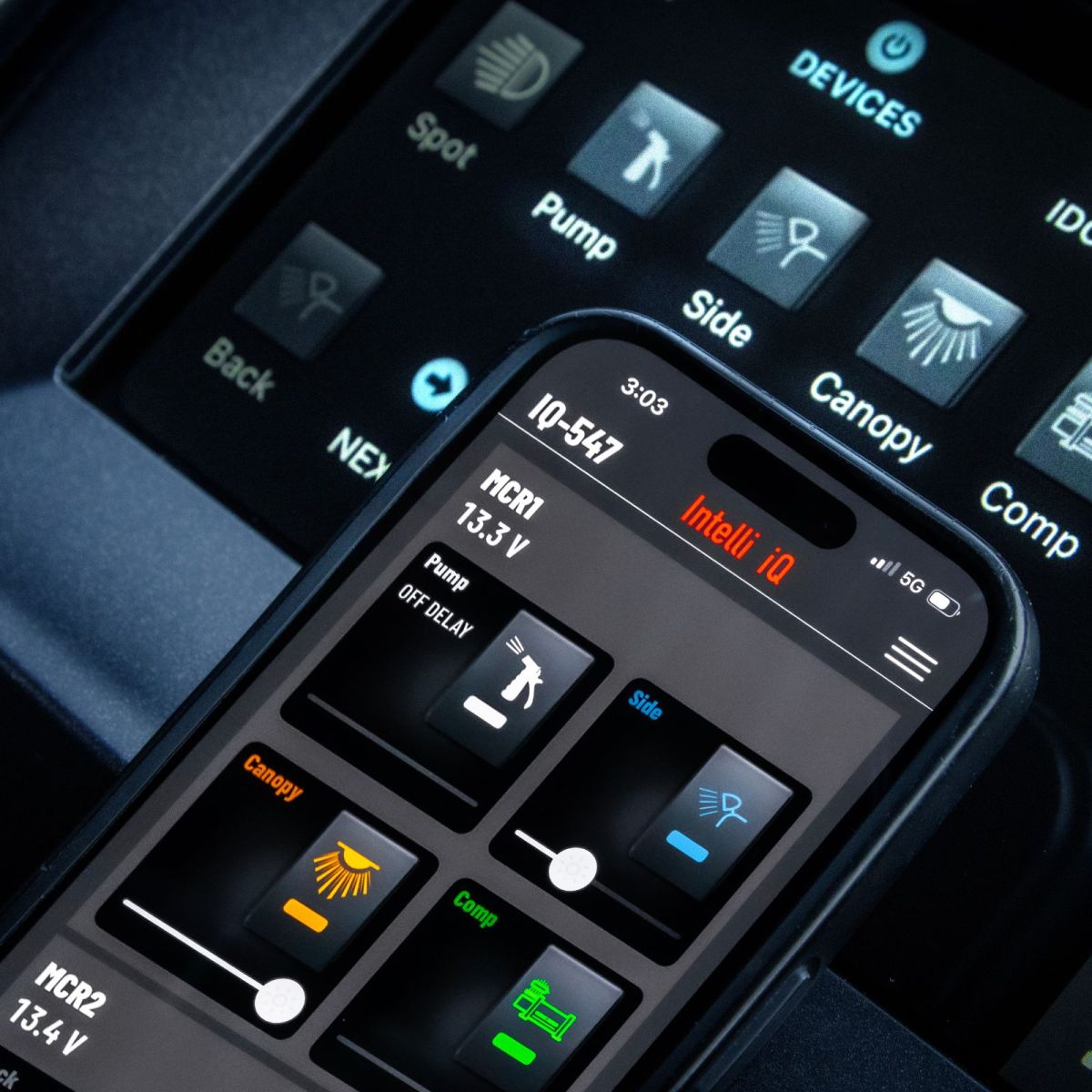

Total Control:

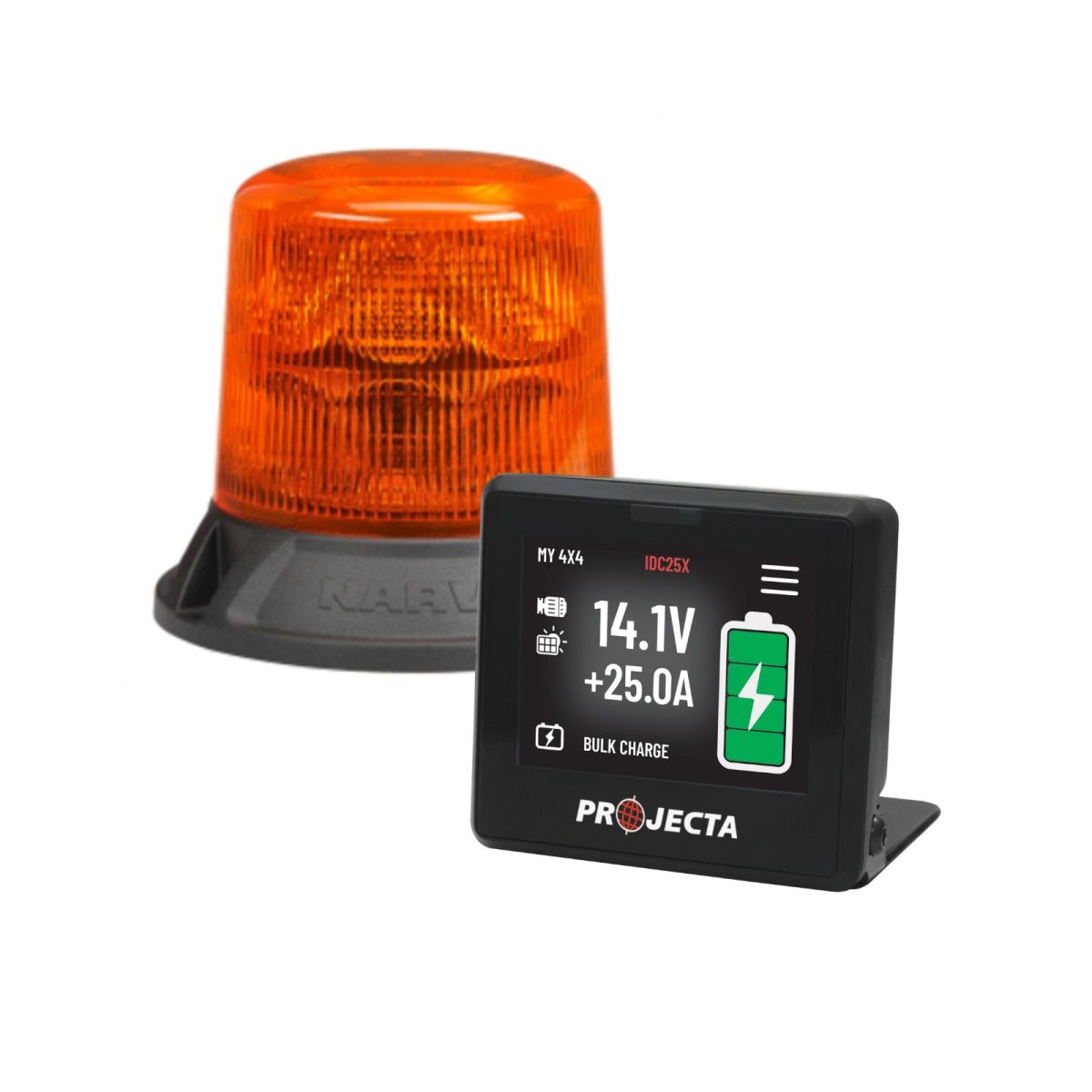

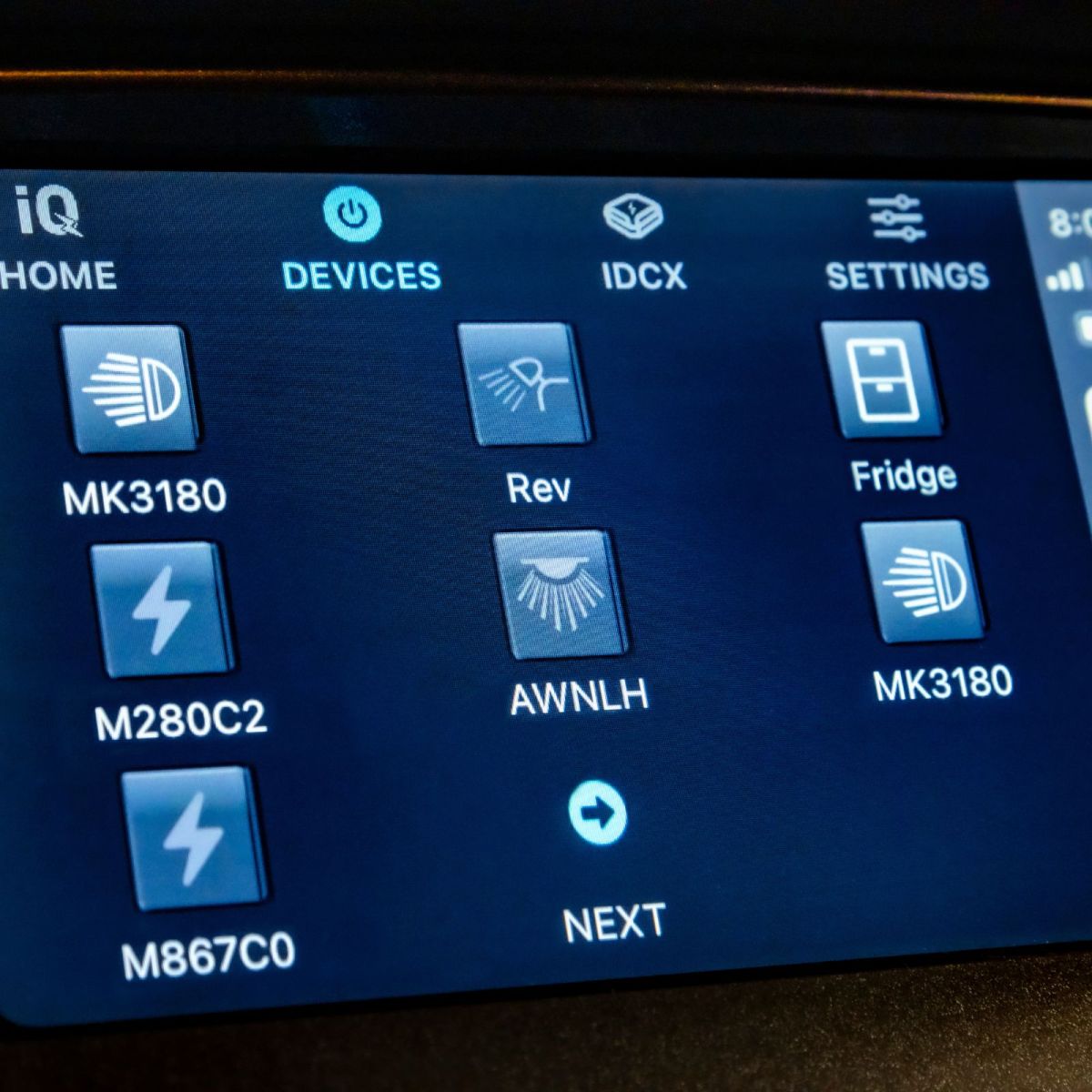

Take total control when partnered with 2" Smart Display, enabling all aspect of the 12V/24V system to be programmed.

Fully Programmable:

Functions as Timer Relay, Voltage Sensitive Relay, Digital Circuit Breaker, Low Voltage Disconnect, Flasher.

Fully Sealed Design:

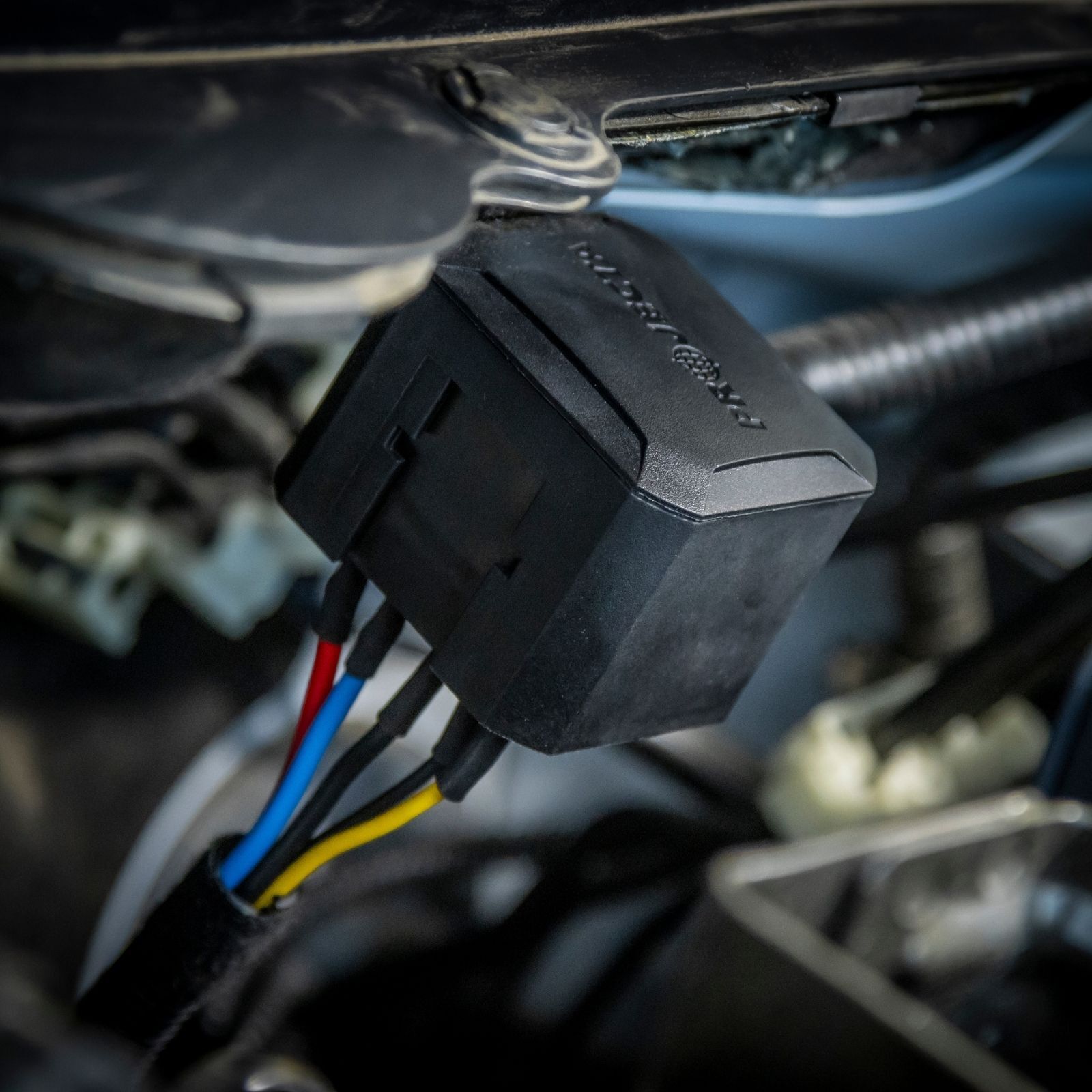

Fully potted design and IP68 & IP69K rating ensures the Smart Relay can be mounted anywhere, including in the engine bay.

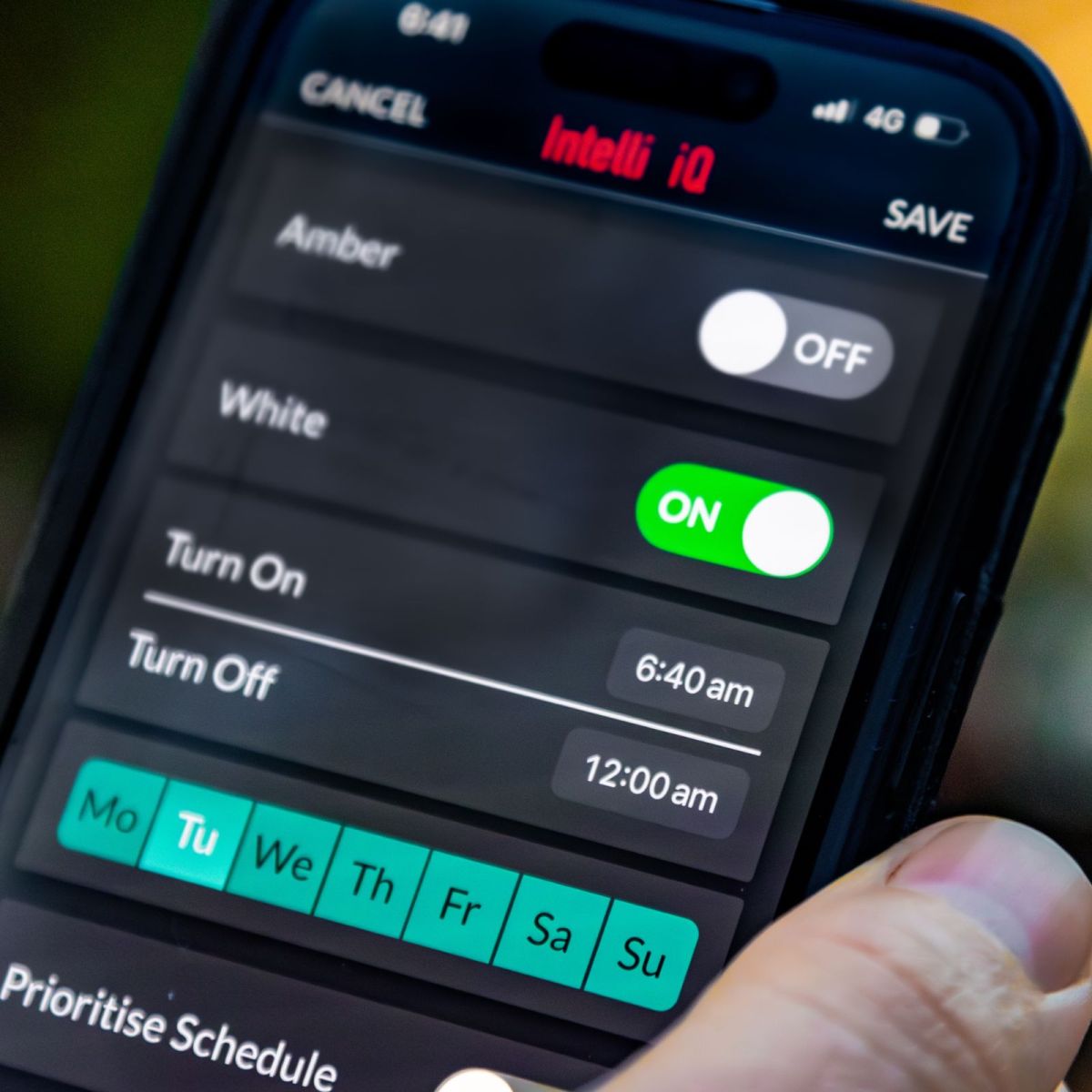

Daily Tasks:

Turn any device on or off on a schedule set by the user. Also includes delayed off time

Required to operate:

This smart relay requires an IQD2 Intelli-IQ Display to operate smart relay functions. If you already own an IQD2, you do not need to purchase another one.

PART NO. IQR040 IQMR4
INPUT VOLTAGE RANGE 9-32V 9-16V
INPUT UNDER VOLTAGE PROTECTION 9.0V
INPUT OVER VOLTAGE PROTECTION >33V >16V
INPUT CONSUMPTION CURRENT <10mA
MAX OUTPUT CURRENT 40A @12V, 15A@24V 10A max per channel,
30A max for total output
COMMUNICATIONS
LIN BUS SUPPORT 2.1
LIN DEVICE TYPE Slave/Peripheral
PHYSICAL CHARACTERISTICS
OPERATING TEMPERATURE -10 ~ 85°C
OPERATING HUMIDITY 0~90%RH
STORAGE TEMPERATURE (short term) -10~105°C
STORAGE HUMIDITY <60%RH
IP RATING IP68&IP69K IP20
PRODUCT SIZE 59 x 52 x 46.5mm 102 x 56 x 23.3mm
PRODUCT WEIGHT 150g 90g
SAFETY
Thermal Protection Shutdown, Overvoltage Protection, Undervoltage Protection, Short Circuit Protection
IQMR4: Has Built-in 15A Fuse Holders per channel for Overcurrent Protection





































SKU 9315219005267
Barcode # IQR040
Brand Projecta
Shipping Weight 0.3200kg
Shipping Width 0.150m
Shipping Height 0.085m
Shipping Length 0.150m
Shipping Cubic 0.001912500m3
