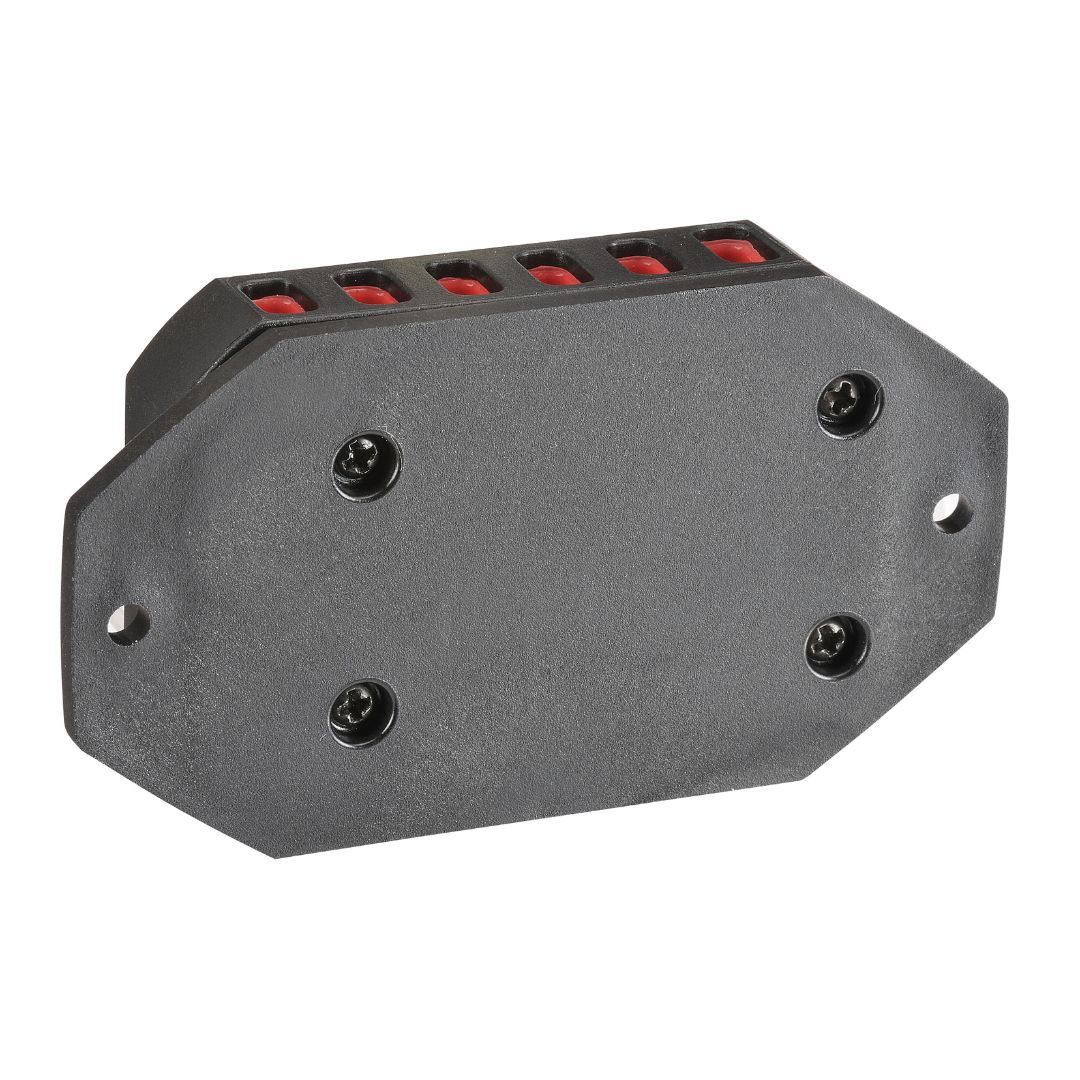

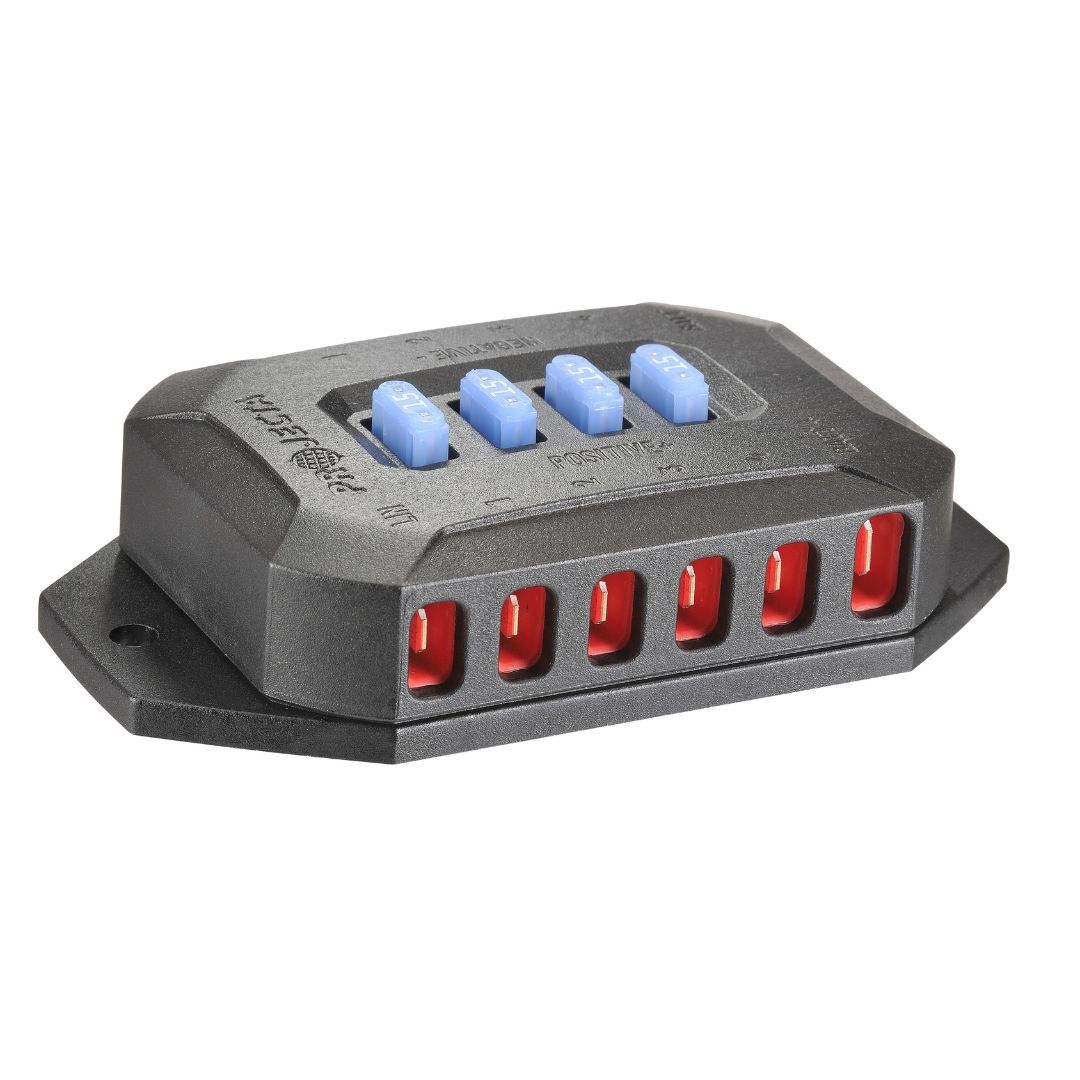

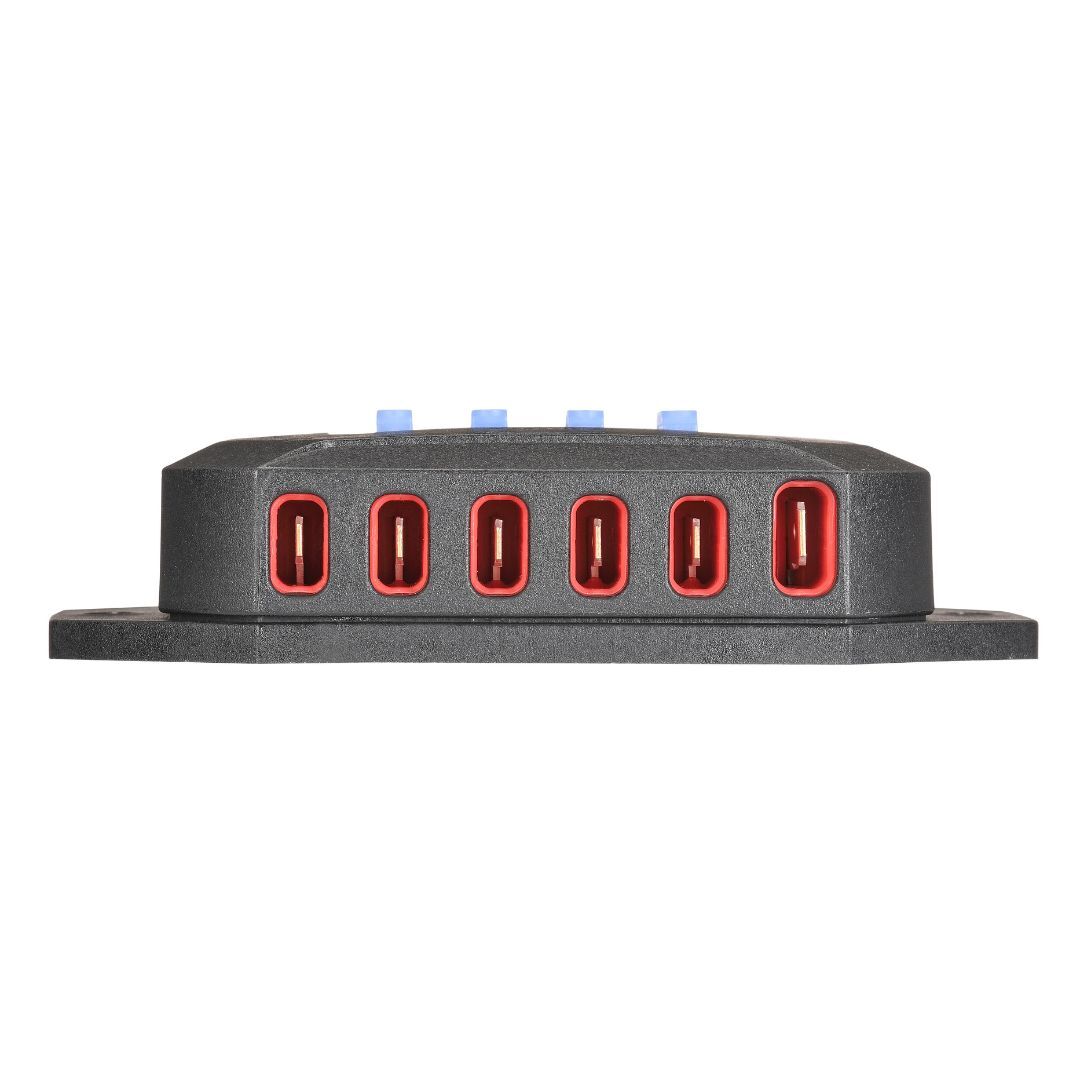

Projecta IQMR4 Smart Relay - Multi Channel
Projecta IQMR4 Smart Relay - Multi Channel
The ideal solution for scaling a DC system to control up to four low-current devices. Once connected, the user has total control over a wide range of situations. Designed primarily for lighting, it is also ideal for activating other low-amperage devices. Suitable for use with starter or auxiliary batteries. Compatible with smart functionality when paired with a 2" Smart Display (p/no IQD2).
Total Control:
Take total control when partnered with 2" Smart Display, enabling all aspect of the 12V/24V system to be programmed.
Fully Programmable:
Functions as Timer Relay, Voltage Sensitive Relay, Digital Circuit Breaker, Low Voltage Disconnect, Flasher.
Advanced Lighting Control:
Allows simple operation of lights including dimming, dual colour lighting control, SOS flash function and flash pattern control.
Easy Installation:

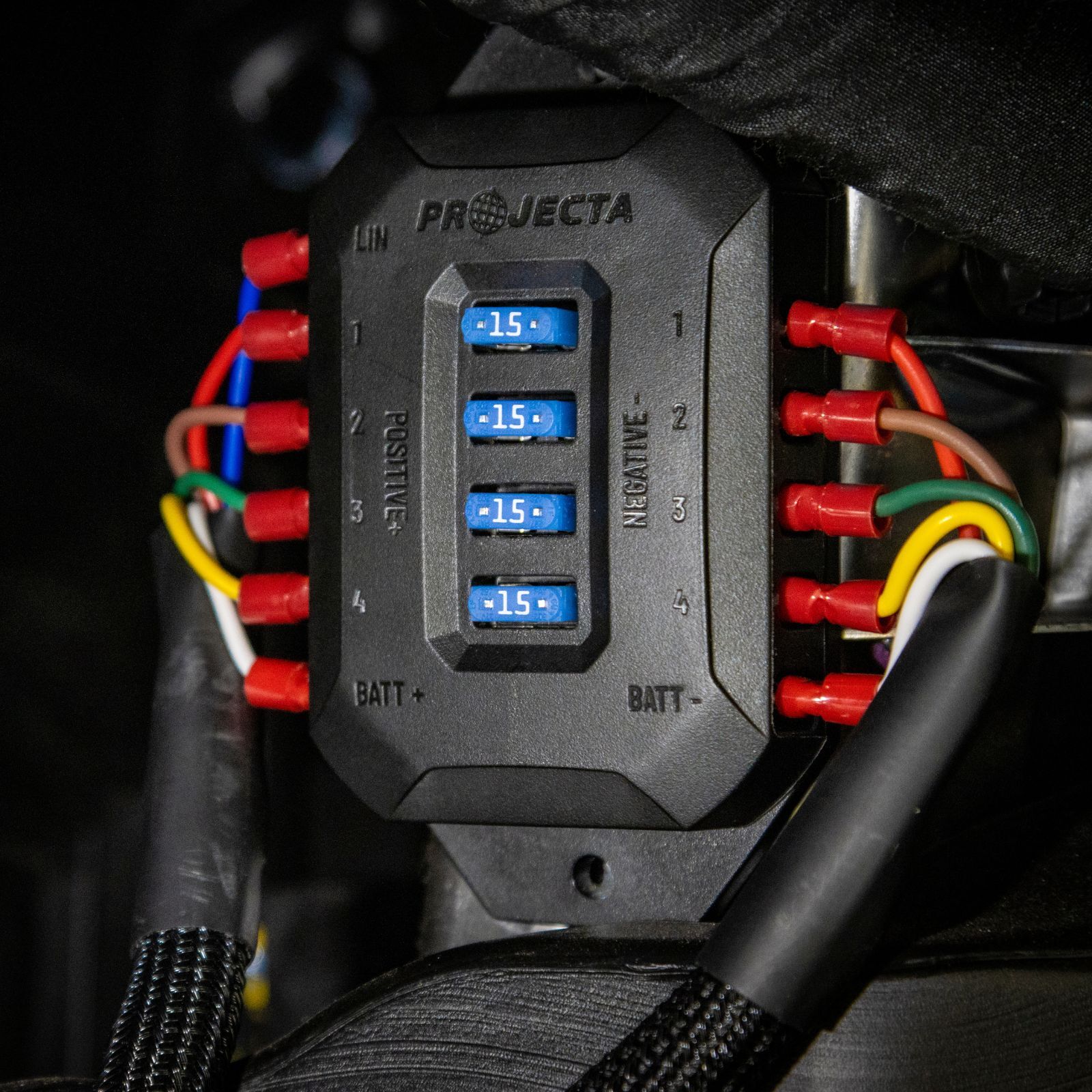

Acting as three products in one (Switch Panel, Bus Bar, Fuse Box) means less wiring running whilst not losing power or connectivity
Required to operate:
This smart relay requires an IQD2 Intelli-IQ Display to operate smart relay functions. If you already own an IQD2, you do not need to purchase another one.
| PART NO. | IQR040 | IQMR4 |
|---|---|---|
| INPUT VOLTAGE RANGE | 9-32V | 9-16V |
| INPUT UNDER VOLTAGE PROTECTION | 9.0V | |
| INPUT OVER VOLTAGE PROTECTION | >33V | >16V |
| INPUT CONSUMPTION CURRENT | <10mA | |
| MAX OUTPUT CURRENT | 40A @12V, 15A@24V | 10A max per channel, 30A max for total output |
| COMMUNICATIONS | ||
| LIN BUS SUPPORT | 2.1 | |
| LIN DEVICE TYPE | Slave/Peripheral | |
| PHYSICAL CHARACTERISTICS | ||
| OPERATING TEMPERATURE | -10 ~ 85°C | |
| OPERATING HUMIDITY | 0~90%RH | |
| STORAGE TEMPERATURE (short term) | -10~105°C | |
| STORAGE HUMIDITY | <60%RH | |
| IP RATING | IP68&IP69K | IP20 |
| PRODUCT SIZE | 59 x 52 x 46.5mm | 102 x 56 x 23.3mm |
| PRODUCT WEIGHT | 150g | 90g |
| SAFETY | ||
| Thermal Protection Shutdown, Overvoltage Protection, Undervoltage Protection, Short Circuit Protection | ||

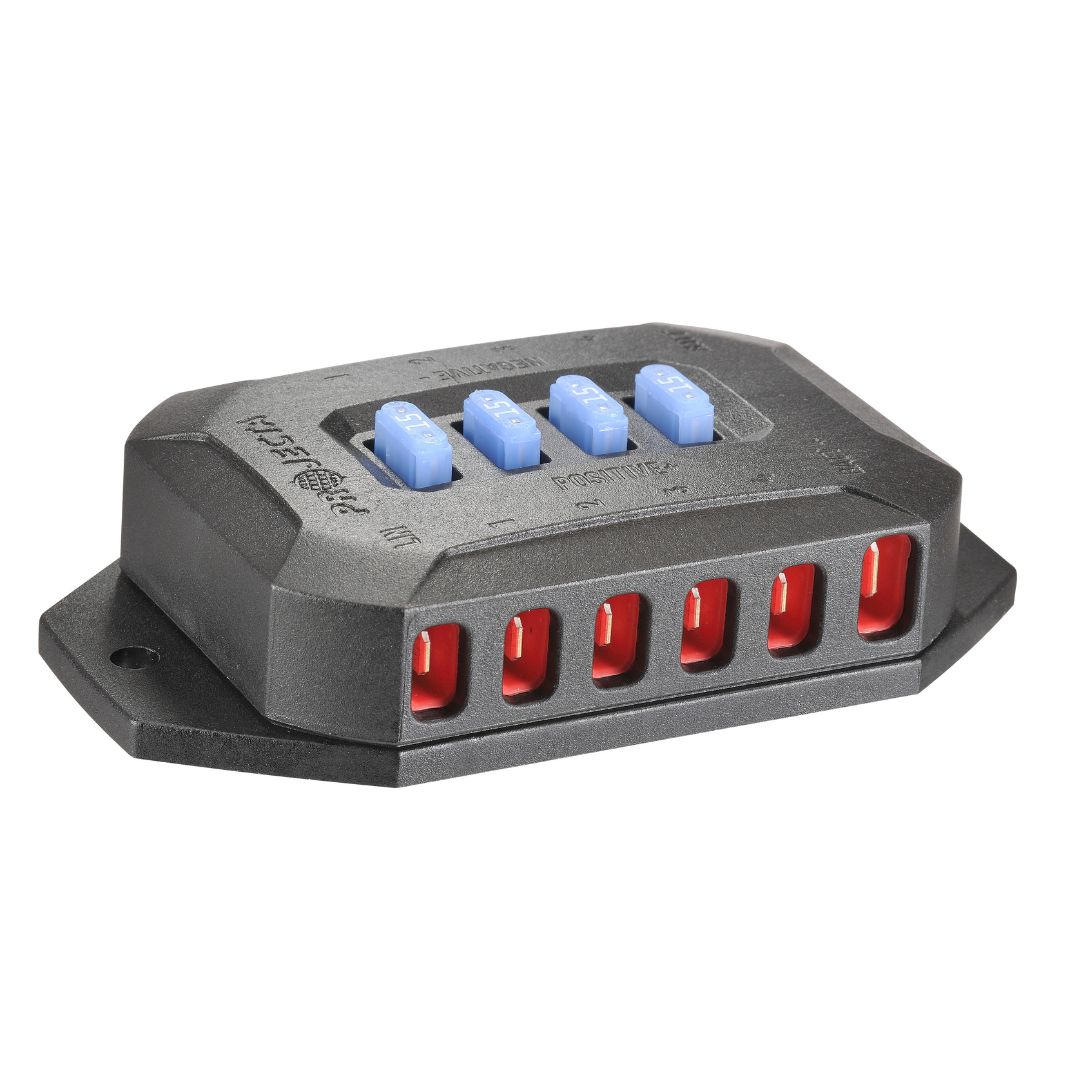

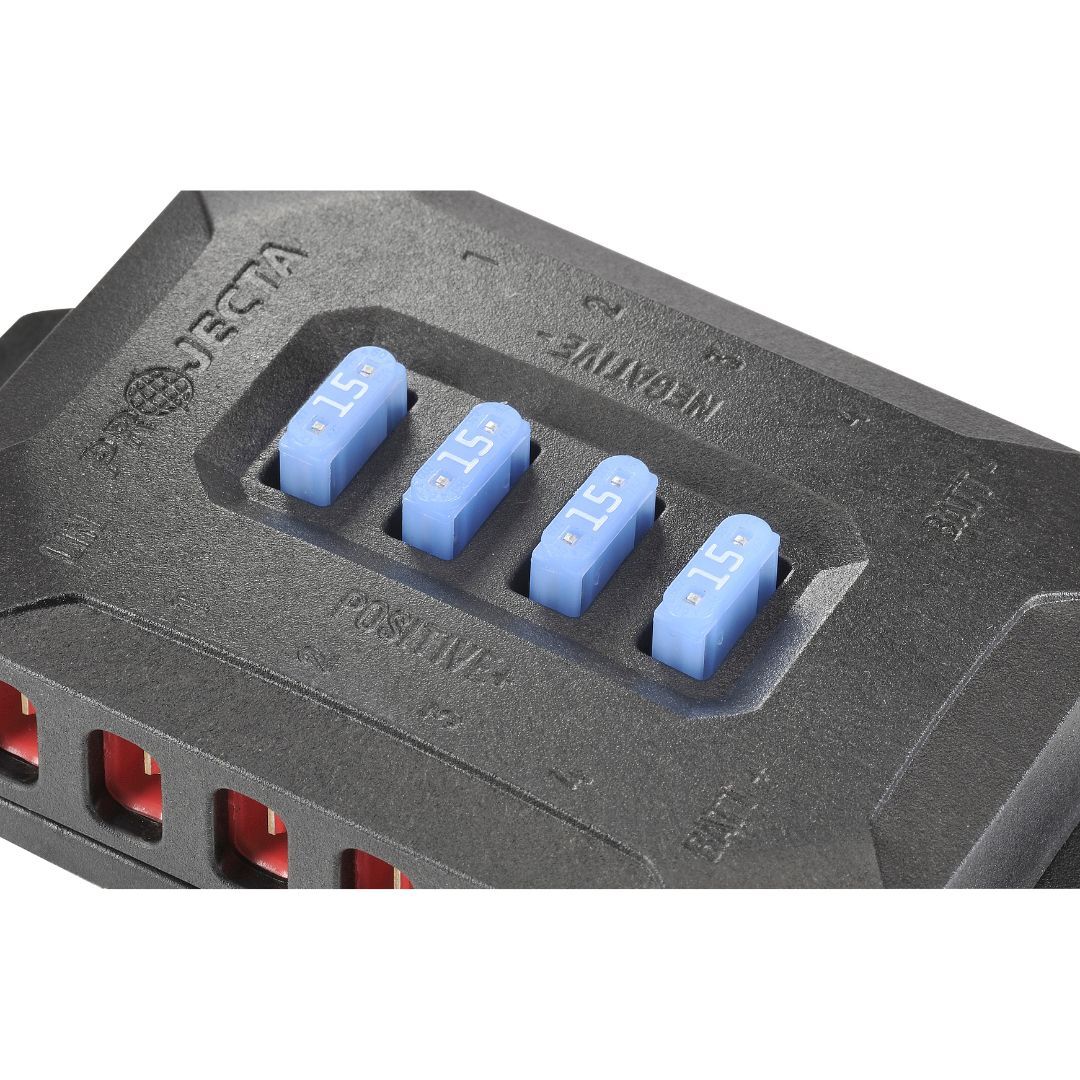

| IQMR4: Has Built-in 15A Fuse Holders per channel for Overcurrent Protection | ||
| SKU | 9315219004130 |
| Brand | Projecta |
| Shipping Weight | 0.3200kg |
| Shipping Width | 0.150m |
| Shipping Height | 0.085m |
| Shipping Length | 0.150m |
| Shipping Cubic | 0.001912500m3 |
