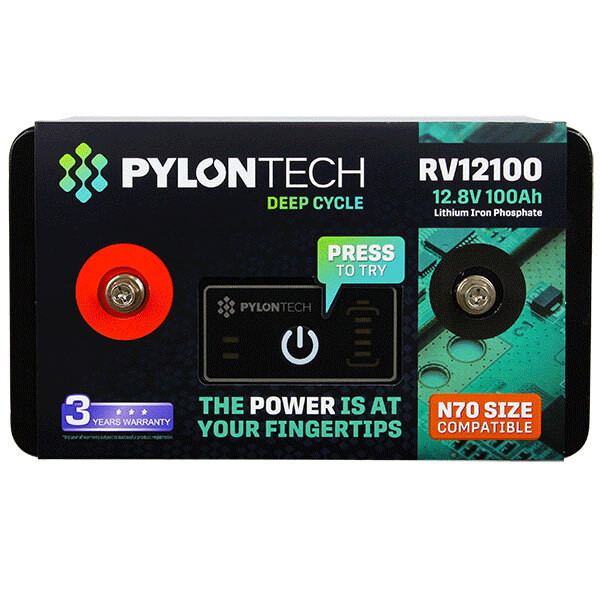

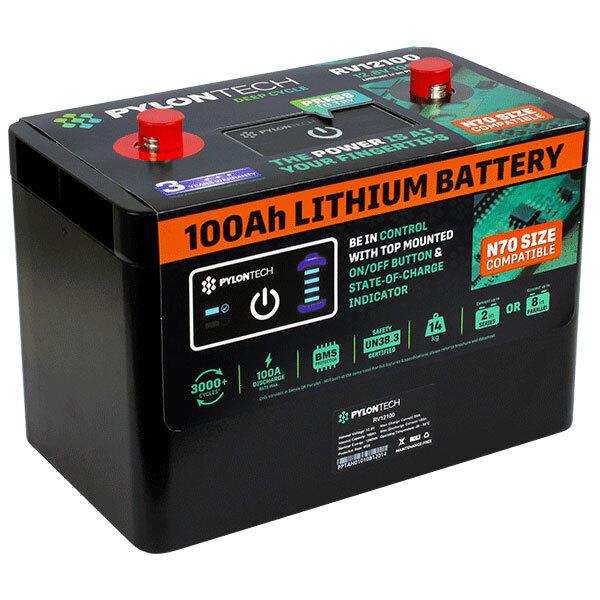

12V 100Ah Lithium Iron Phosphate battery with push button State-of-Charge indicator. Ideal for sealed lead battery replacement.

The Pylontech RV12V Series are the newly developed all-purpose lithium iron phosphate battery modules, designed for energy storage applications. With the cutting edge LFP (Lithium Iron Phosphate) cells, embedded BMS (Battery Management System) and mechanical design, Pylontech RV12V Series product provides inherent safety, extremly high reliability and zero maintenance.

Compared to the same capacity lead-acid based batteries, it has more than twice of the usable capacity, more than 3 times of the life cycle, but only about 40% of the weight. It is a perfect replacement for lead acid batteries used in Deep Cycle applications such as marine, RV, golf carts and solar storage.

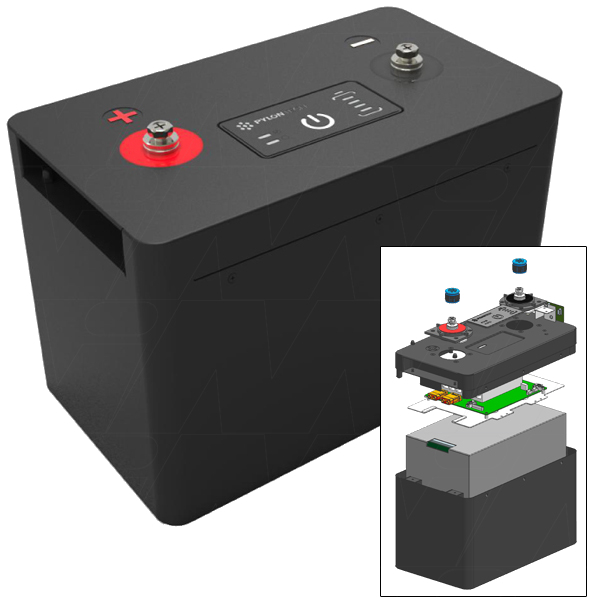

The RV12100 is made from 4S4P combination of LiFePO4 Pouch type cells and can be used in any orientation unlike other batteries which may only be used with terminals facing upwards.

A unique feature with this battery is that it is "Array-Aware". That means it knows other batteries are on the bus and only turns on when it senses another battery in parallel or a charger.

Pylontech RV12100 Advantages:

  • Twice the usable capacity (compared to the same capacity of FLA/AGM/GEL)
  • Deep Cycle (Auto cut-off at 10V)
  • Calendar life of 10+ years, cycle life of 3000 times
  • High charging current
  • Embedded BMS
  • Dual lug terminals
  • Zero maintenance
  • Working Temperature -20 to -60°C
  • Rugged mechanical design
Model RV12100
Nominal Voltage 12.8v
Nominal Capacity 100Ah (1280Wh)
Cycle Life (DOD - 80% under controlled conditions) >3000 cycles (90% DoD) @ 25°C
Maximum Charge Voltage 14.2V - 14.6V (14.4V recommended)
Maximum Cont. Charge Current 50A
Maximum Cont. Discharge Current 100A
Discharge Cut-Off Voltage 10v
Operating Discharge temperature -15 to -50°C
Operating Charge temperature -0 to -50°C
Storage temperature -20 to -60°C
State of Charge Display Yes
Short Circuit Protection Yes
IP Rating
IP20 Rating
Series* Connection Allowed Up to 2S
Parallel* Connection Allowed Up to 8P (Max. continuous discharge current 0.5C when in Parallel)
Case Structure Rugged mechanical design
Safety UN38.3 Approved
Size Perfect fit in N70 size battery box
Dimensions (L x W x H) 300 x 173 x 220mm
Weight Approx. 15KG
Warranty 3 Years



Barcode # RV12100
Brand Pylontech
Shipping Weight 16.0000kg
Shipping Width 0.380m
Shipping Height 0.290m
Shipping Length 0.270m
Shipping Cubic 0.029754000m3
