Command Center: Total Control Over Your Off-Grid Power.

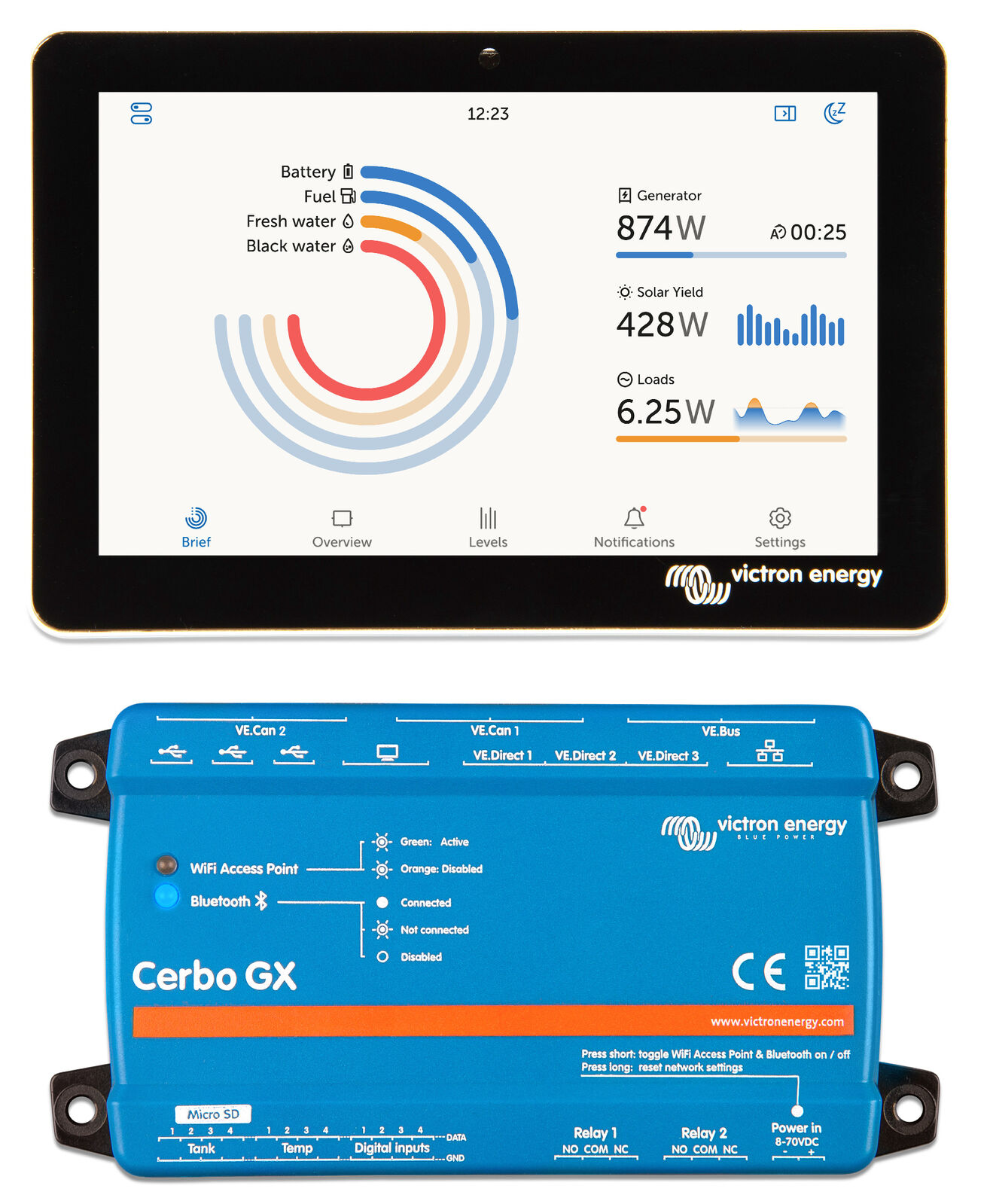

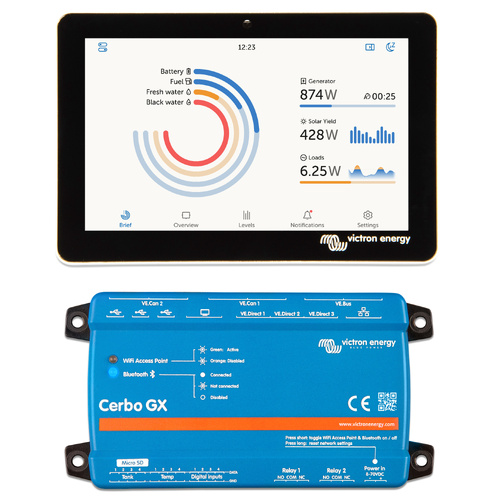

System monitoring combo package: CERBO GX MK2 + GX Touch 70 7" Display

Purchase the CERBO GX MK2 communication centre together with the GX Touch 70 (7 inch graphical user interface) for a better price than buying them separately.

Overview: The Cerbo GX Mark 2 retains the familiar enclosure of its predecessor but introduces notable enhancements in its electronics. This revised model is particularly valuable for specific applications, such as the RV market in the US, where dual VE.Can interfaces are essential.

Key Upgrades:

• Dual VE.Can Ports: The Mark 2 features two fully functional CAN bus ports, named VE.Can 1 and VE.Can 2. This is a significant upgrade from the previous model, which had one VE.Can and one BMS-Can port.

Isolated VE.Can 1 Port: The Mark 2 includes an isolated VE.Can 1 port, a new addition compared to previous models.

• Repositioned RJ-45 Sockets: The RJ-45 sockets have been rotated 180 degrees for easier cable management.

• Enhanced USB Functionality: All three USB ports are fully operational, unlike the previous model where one was dedicated to power supply only.

• Advanced Digital Inputs: The Mark 2 can perform pulse counting, adding more versatility to its input options.

Application Specificity: This revision is particularly advantageous for users in the US RV market who require both a Lynx Smart BMS (VE.Can connection) and an RV-C port.

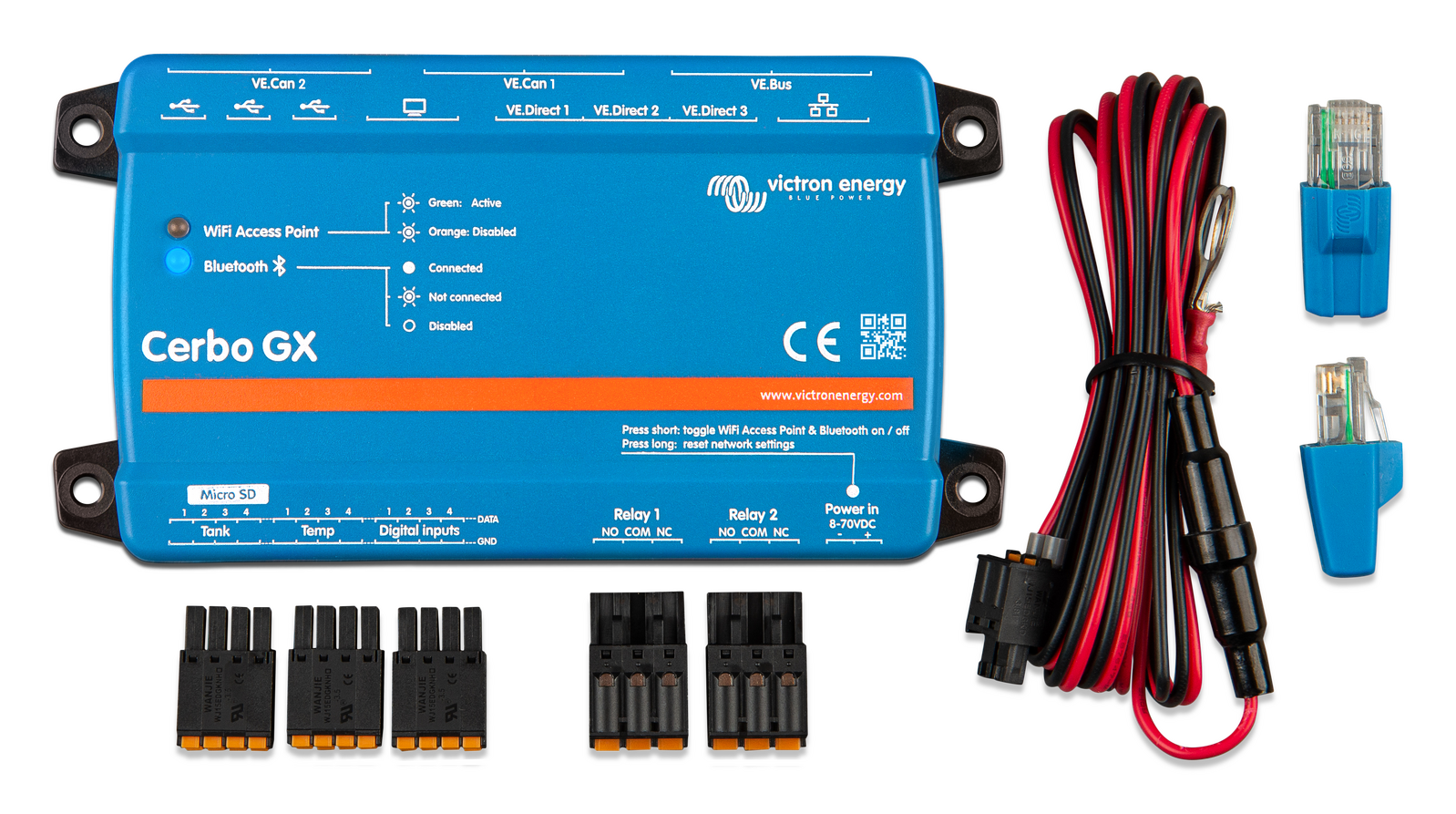

Cerbo GX: communication-centre
This communication-centre allows you to always have perfect control over your system from wherever you are and to
maximise its performance. Simply access your system via our Victron Remote Management (VRM) portal, or access it directly, using the optional GX Touch screen, a Multi-Functional Display (MFD) or our VictronConnect app thanks to its Bluetooth capability.

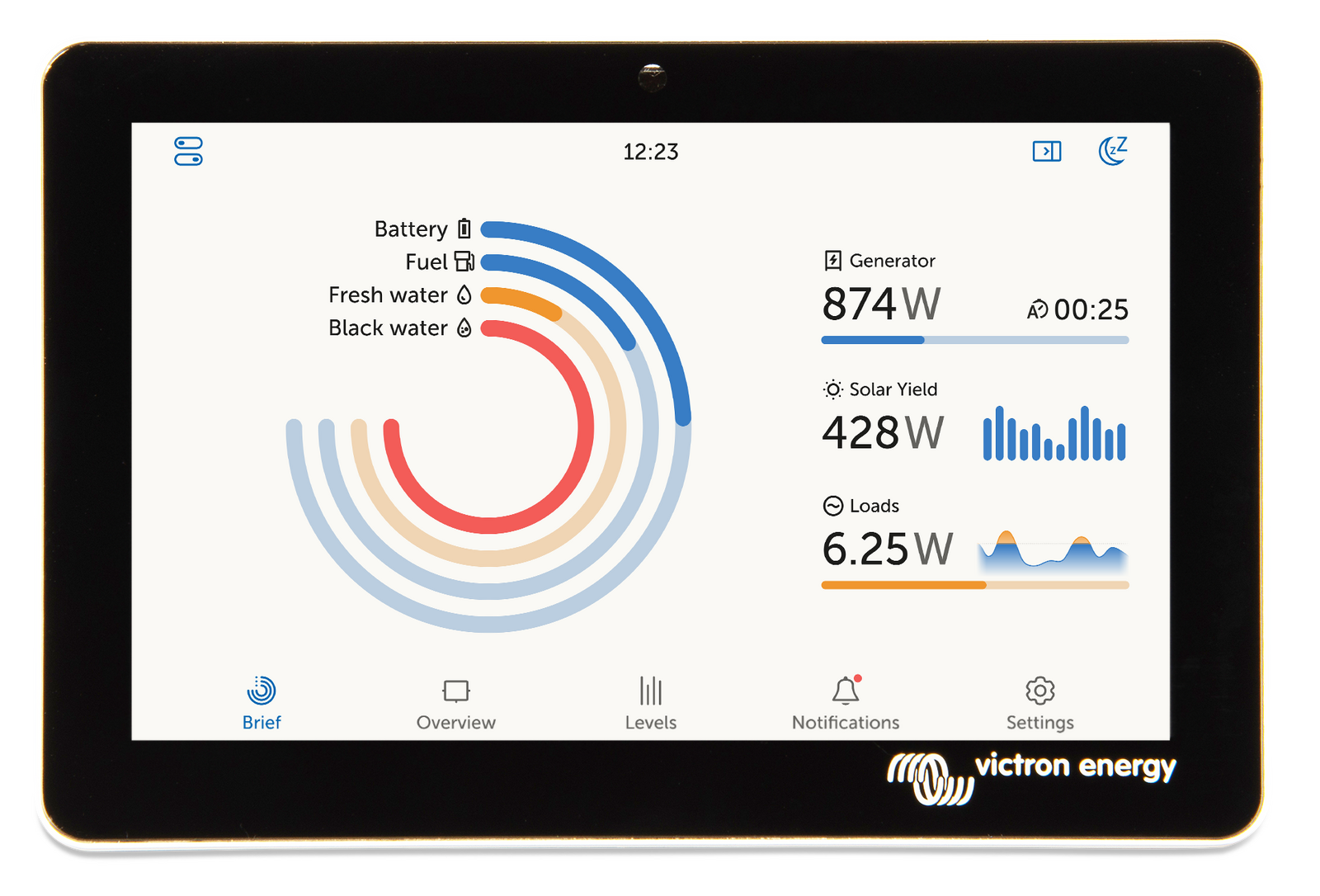

GX Touch: display accessory
The GX Touch 50 and GX Touch 70 are display accessories for the Cerbo GX. The five inch and seven inch touch screen displays give an instant overview of your system and allows you to adjust settings. Simply connect the display to the Cerbo GX with just one cable. Both GX Touch displays have a waterproof design, a top-mountable setup and are simple to install. The supplied (from serial number HQ2242) protection cover prevents damage from UV light during prolonged exposure to the sun.

Remote Console on VRM
Monitor, control and configure the Cerbo GX remotely, over the internet. Just like if you were standing in front of the
device, using Remote Console. The same functionality is also available on the local network LAN, or using the WiFi
Access Point of the Cerbo GX.

Perfect monitoring & control
Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or
check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop
generator(s) or change any setting to optimise the system. Follow up on alerts, perform diagnostic checks and resolve complications remotely.

Simple mounting and configuration
The Cerbo GX is easily mountable and can also be mounted on a DIN-Rail using the DIN35 adapter small, (not
included). Its separate touchscreen can be bolted on a dashboard, eliminating the need to create perfect cut-outs
(like with the Color Control GX). Connection is easy via just one cable, taking away the hassle of having to bring many wires to the dashboard. The Bluetooth feature enables a quick connection and configuration via our VictronConnect app

Supply voltage	8 – 70 VDC
Power draw without GX Touch	2.8 W @ 12 V
Power draw with GX Touch	Backlight off: 3.8 W @ 12 V | Backlight at max: 4.8 W @ 12 V
Mounting (2)	Wall or DIN rail (35 mm)
VE.Direct ports (always isolated) (3)	3 (max. possible VE.Direct devices: 15)
VE.Bus (always isolated)	2 paralleled RJ45 sockets
VE.Can	Yes VE.Can 1 isolated | VE.Can 2 non-isolated
BMS-Can port	Yes – see VE.Can
Bluetooth (4)	Yes
Ethernet (7)	10/100 RJ45 socket - isolated except shield
WiFi	Built-in
USB	3 USB Host ports
Resistive tank level inputs	4
Temperature sense inputs	4
Digital Inputs (6)	4
Relays (5)	2 x NO/NC | DC up to 30 VDC: 6 A DC up to 70 VDC: 1 A | AC: 6 A, 125 VAC
Outer dimensions (h x w x d)	78 x 154 x 48 mm
Operating temperature range	-20 to +50 °C
IP Rating	IP20
Safety	IEC 62368-1
EMC	EN 301489-1, EN 301489-17
Automotive	ECE R10-6
Mounting	GX Touch 50/70: Top/wall mount with included mounting accessories GX Touch 50/70 Flush: Flush mount or embossed (totally flush)
Display Resolution	GX Touch 50: 800 x 480 GX Touch 70: 1024 x 600
IP Rating	GX Touch 50/70: Included with every GX Touch from serial number HQ2242 Can also be purchased individually: Part # BPP900462050: GX Touch 50 protection cover Part # BPP900462070: GX Touch 70 protection cover GX Touch 50/70 Flush: No
IP Rating	GX Touch 50/70:IP54 (without connectors) GX Touch 50/70 Flush: IP65 (when installed with the included rubber gasket)
Outer dimensions (h x w x d)	GX Touch 50: 87 x 128 x 12.4 mm | GX Touch 70: 94 x 136 x 12 mm GX Touch Flush 50: 94 x 136 x 12 mm | GX Touch Flush 70: 120 x 184 x 13 mm
Cable length	2 meter
