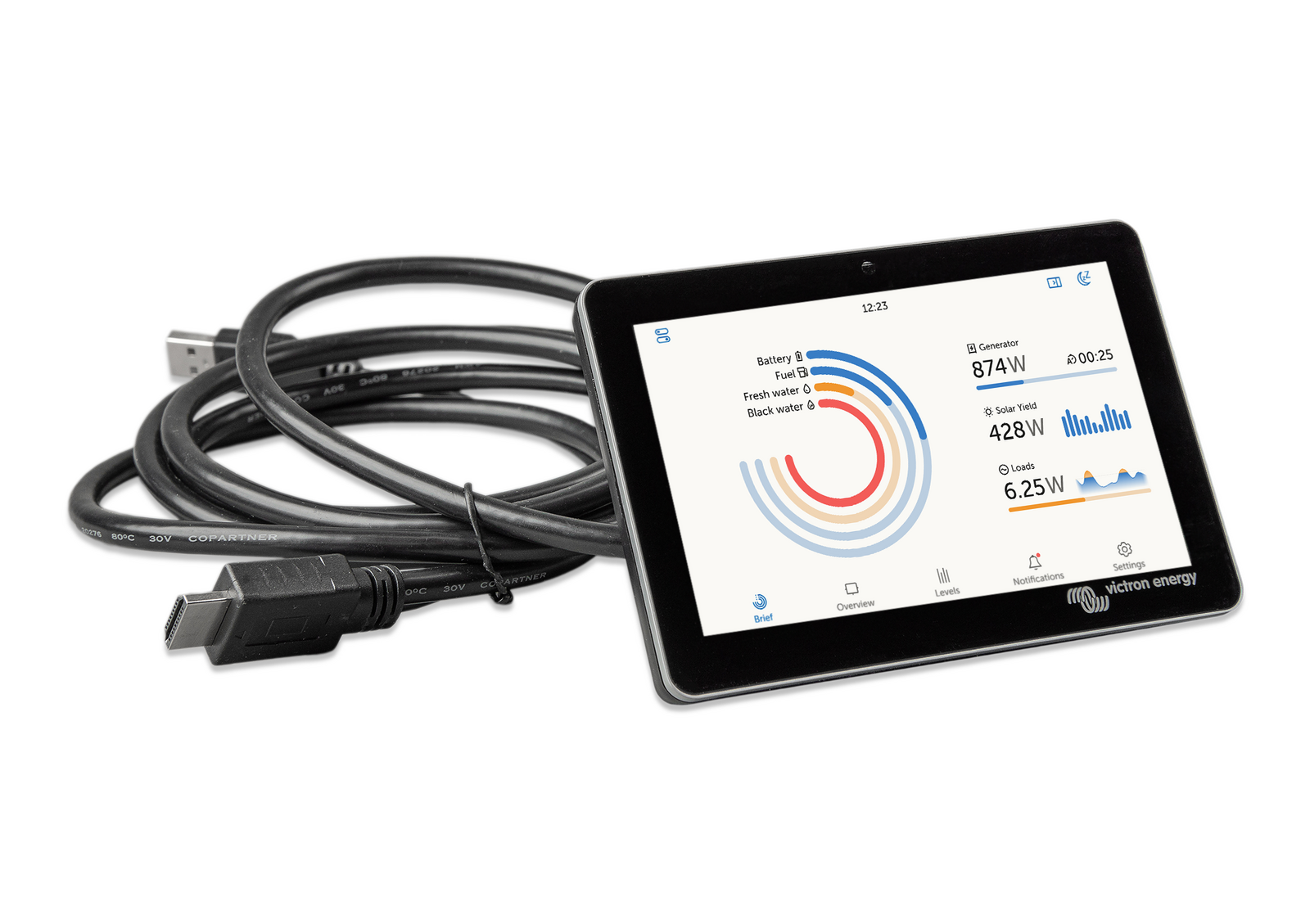

GX Touch 70

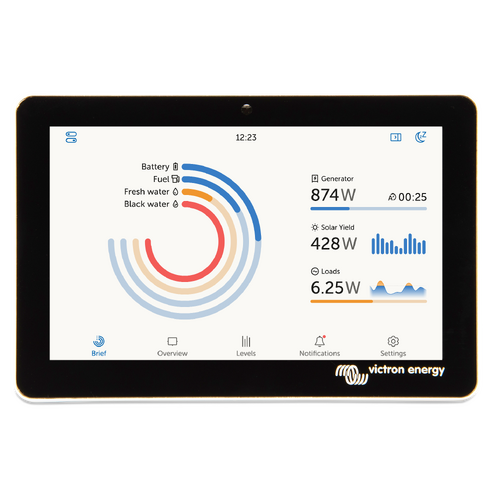

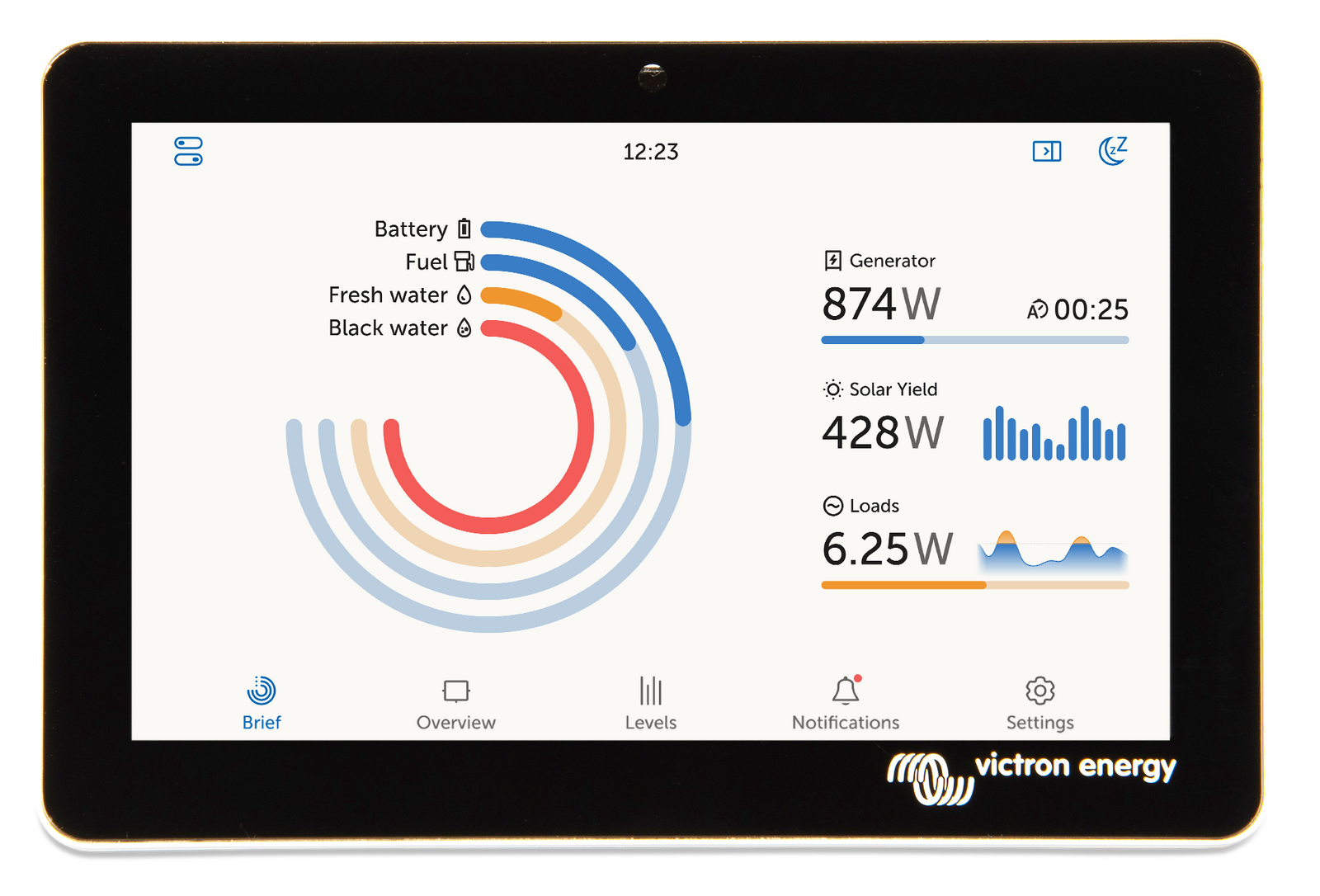

The GX Touch 70 is the display accessory for the Cerbo GX. The seven inch a touch screen display gives an instant overview of your system and allows to adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, its super slim waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

Watch the new video below that explains all there is to know about installing the new Cerbo GX & GX Touch 50 (same proces for the GX Touch 70).

Simply mounted

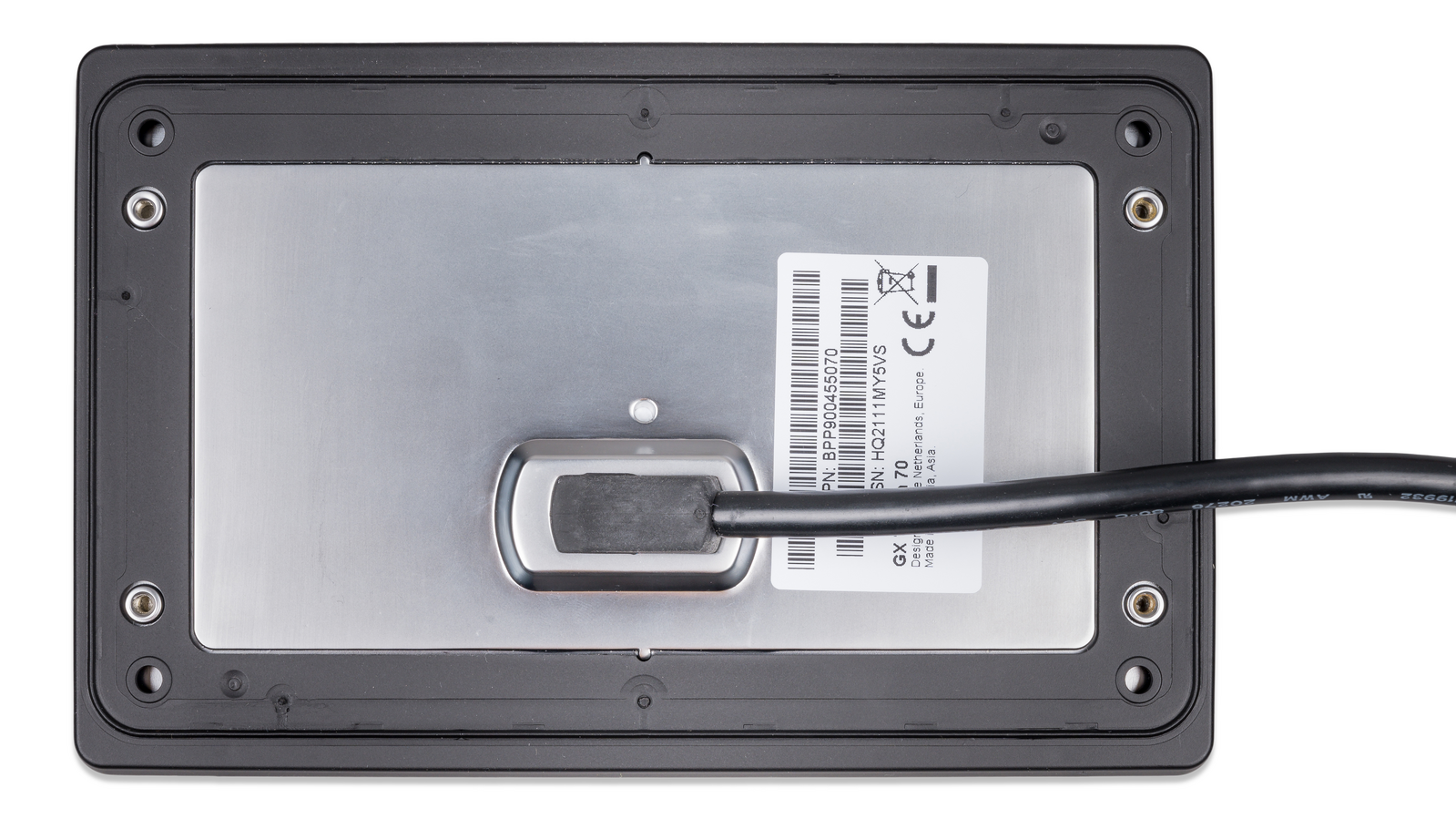

The GX Touch is optimised to more than meet the standards of installer professionals. The screen is simply bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the ColorControl GX ) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard.

The GX Touch 70 is a companion to the Cerbo GX, the all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the GX Touch 70, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.

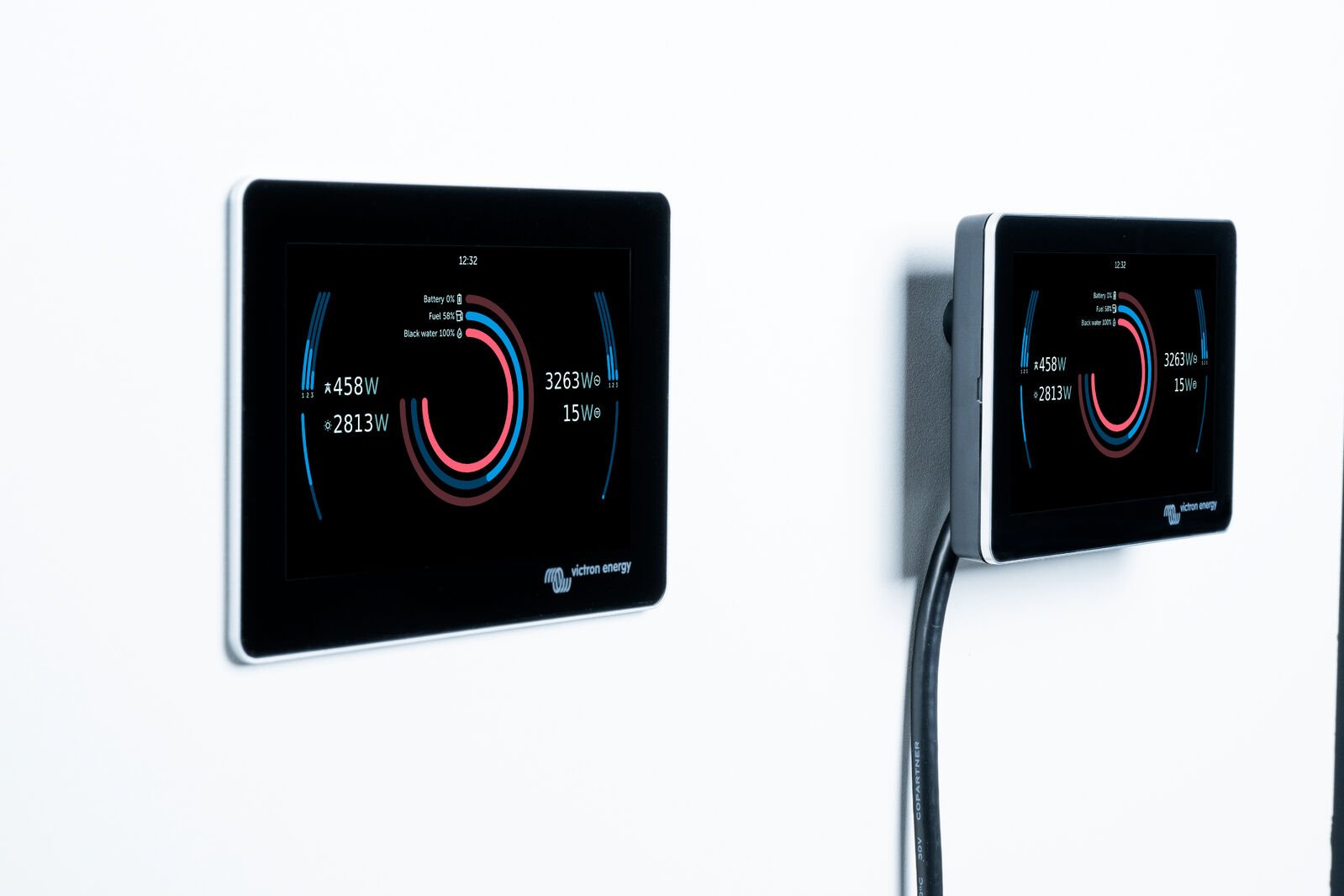

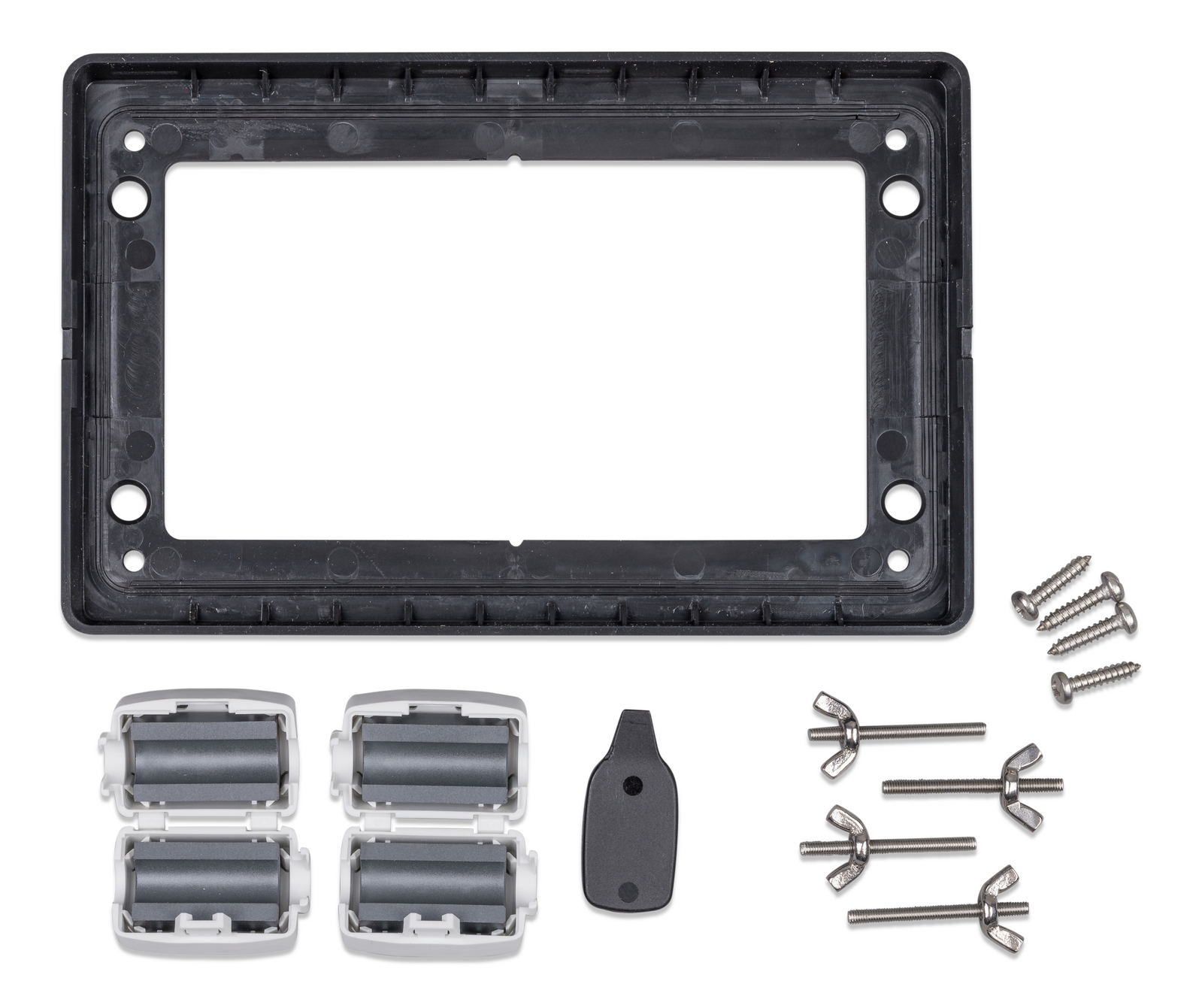

Mounting GX Touch 50/70: Top/wall mount with included mounting accessories
GX Touch 50/70 Flush: Flush mount or embossed (totally flush)
Display Resolution GX Touch 50: 800 x 480
GX Touch 70: 1024 x 600
IP Rating GX Touch 50/70: Included with every GX Touch from serial number HQ2242
Can also be purchased individually:

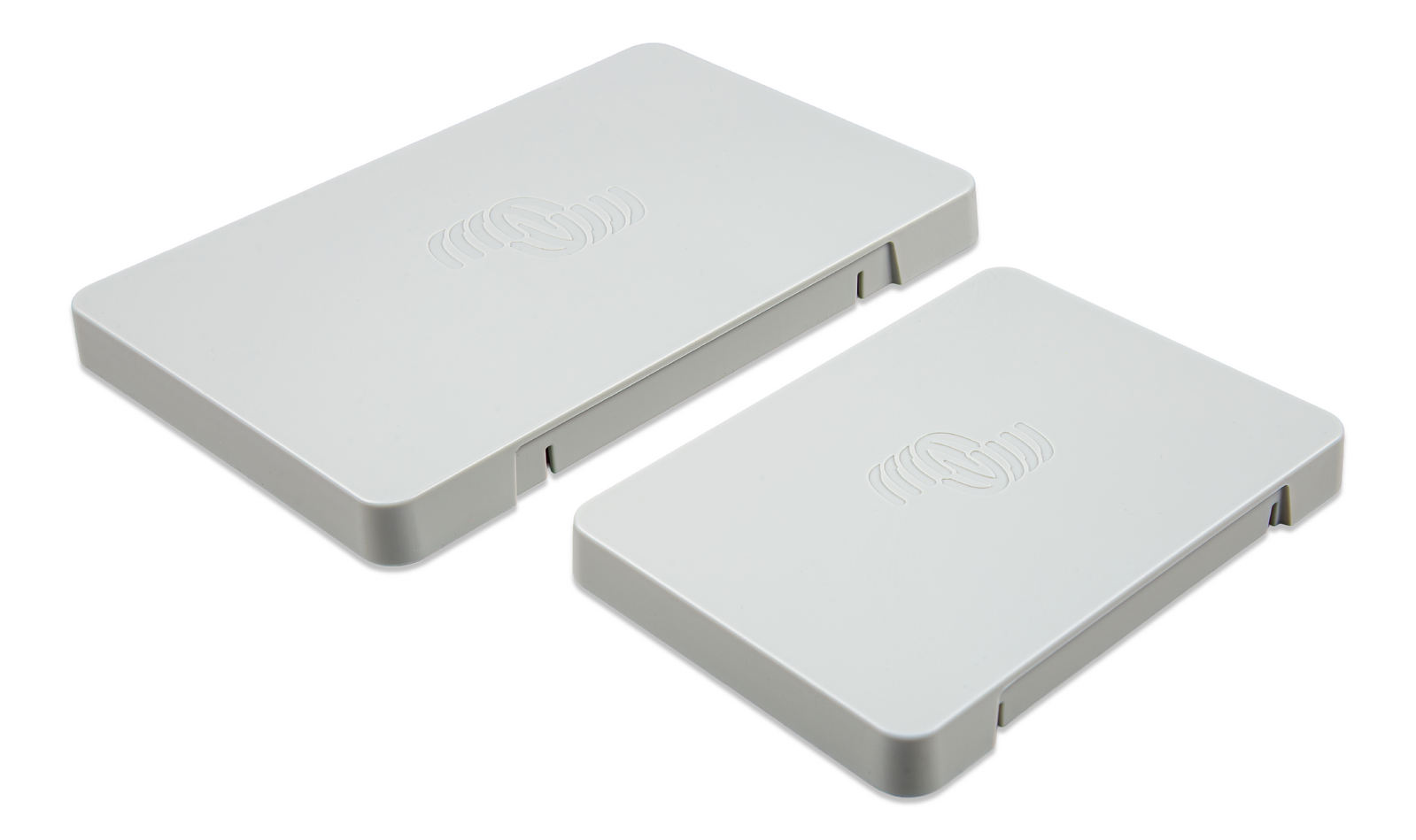

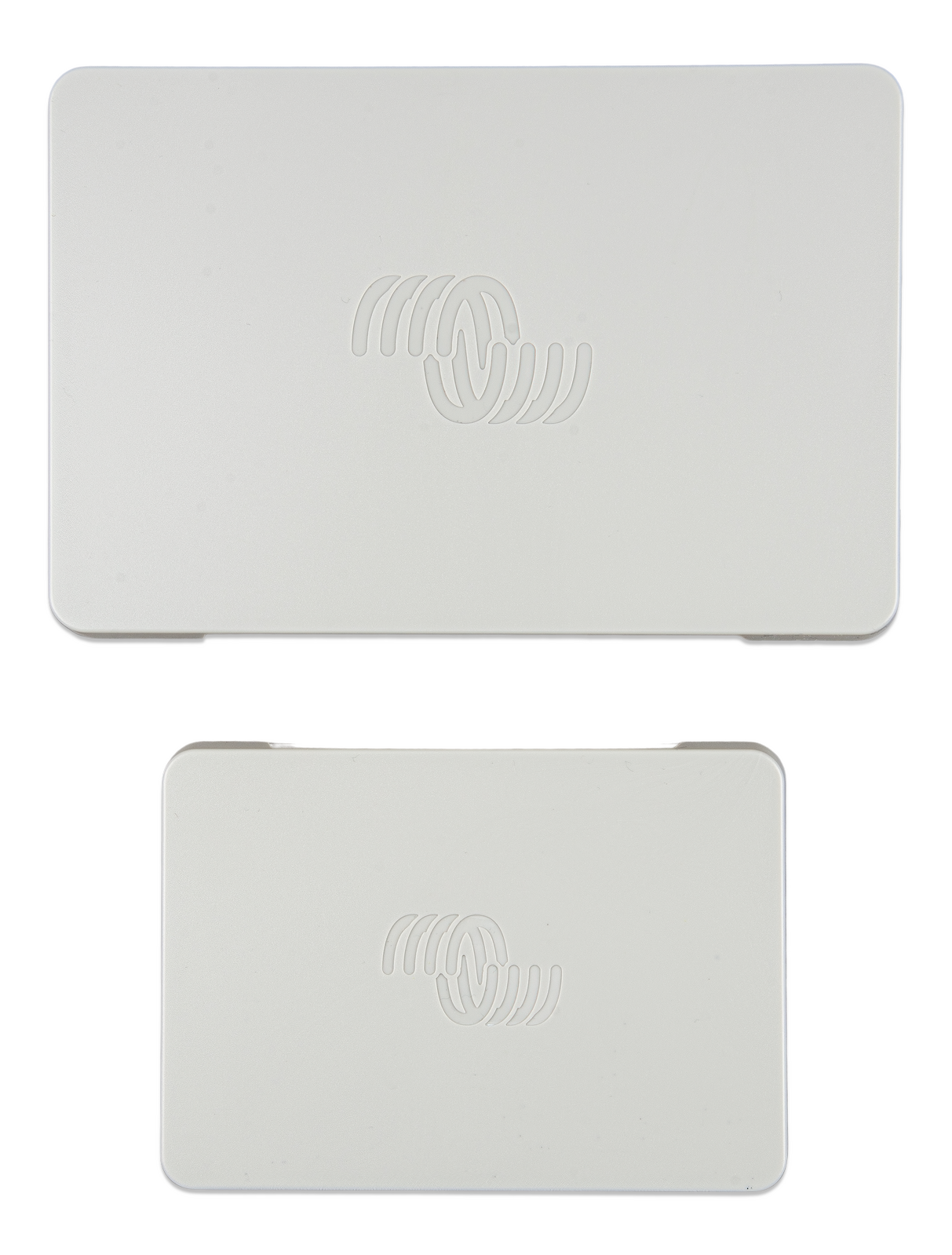

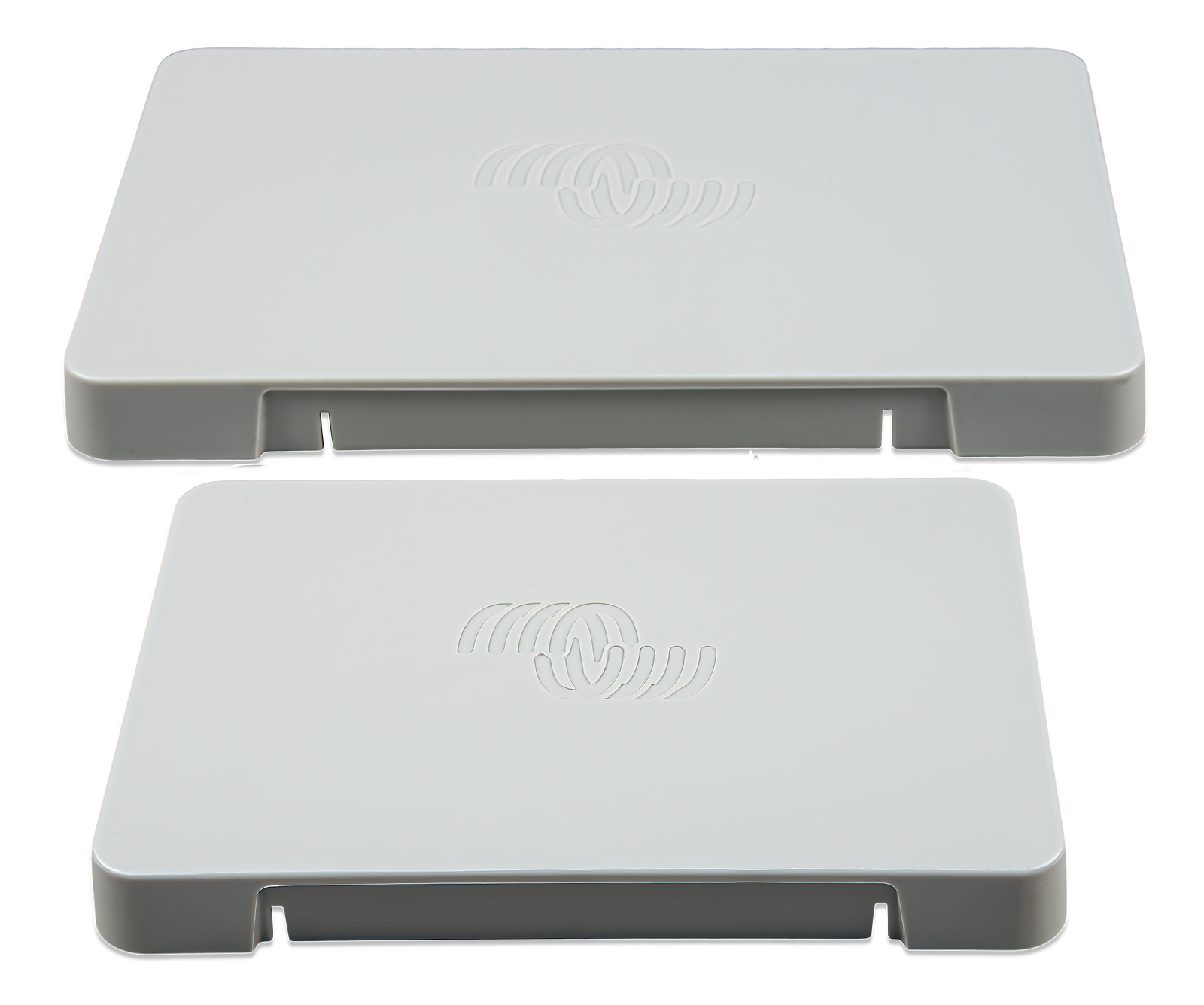

Part # BPP900462050: GX Touch 50 protection cover
Part # BPP900462070: GX Touch 70 protection cover
GX Touch 50/70 Flush: No
IP Rating GX Touch 50/70:IP54 (without connectors)
GX Touch 50/70 Flush: IP65 (when installed with the included rubber gasket)
Outer dimensions (h x w x d) GX Touch 50: 87 x 128 x 12.4 mm
GX Touch 70: 113 x 176 x 13.5 mm
Cable length 2 meter

Notes
1. For more detailed information about the Cerbo GX and the GX Touch, please visit the Victron GX product range page at Victron live:
www.victronenergy.com/live/venus-os:start
2. DIN rail mounting requires an additional accessory - DIN35 adapter small.
3. The listed maximum in above table is the total connected VE.Direct devices such as MPPT Solar Charge controllers. Total means all directly connected devices plus the devices connected over USB. The limit is mostly bound by CPU processing power. Note that there is also a limit to the other type of devices of which often multiple are connected: PV Inverters. Up to three or four three phase inverters can typically be monitored on a CCGX. Higher power CPU devices can monitor more.
4. Bluetooth functionality is intended to be used to assist with initial connection and networking configuration. You cannot use Bluetooth to connect to other Victron products (e.g. SmartSolar charge controllers).
5. In Cerbo GX hardware there are two relays. Currently, Relay 1 can be used for programming as an alarm relay, generator start/stop, tank pump, temperature-controlled relay or manual operation. Relay 2 is available for programming as a temperature-controlled relay or manual operation in the Relay menu of the GX (requires firmware 2.80 or higher).
6. The digital inputs on the Cerbo GX PN BPP900450100 and Cerbo-S GX are not able to do pulse counting.
7. On Cerbo GX PN BPP900450110 and BPP900451100, the RJ45 sockets are rotated 180 degrees to make it easier to remove the cable

SKU 8719076054344
Barcode # BPP900455070
Brand Victron
Shipping Weight 0.6500kg
Shipping Width 0.215m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.001548000m3
