Enerdrive Rear Entry Fuse Block 1 In 6 Out with LEDs EA-FB-01
Enerdrive Rear Entry Fuse Block 1 In 6 Out EA-FB-01
The Single Input 6 Output Rear Entry Panel Mount Fuse Block from Enerdrive is ideal for canopy installs to protect the wire in the electrical circuit.
Fuse Block Panel Mount 1 In 6 Out with LEDs
- Panel Mount 1 in – 6 out fuse block with rear connections.
- Suits ATO/ATC Blade Fuses
- 32V 50Amp Max – 20Amp Max per circuit
- Fuse blown LED’s for easy fault finding.

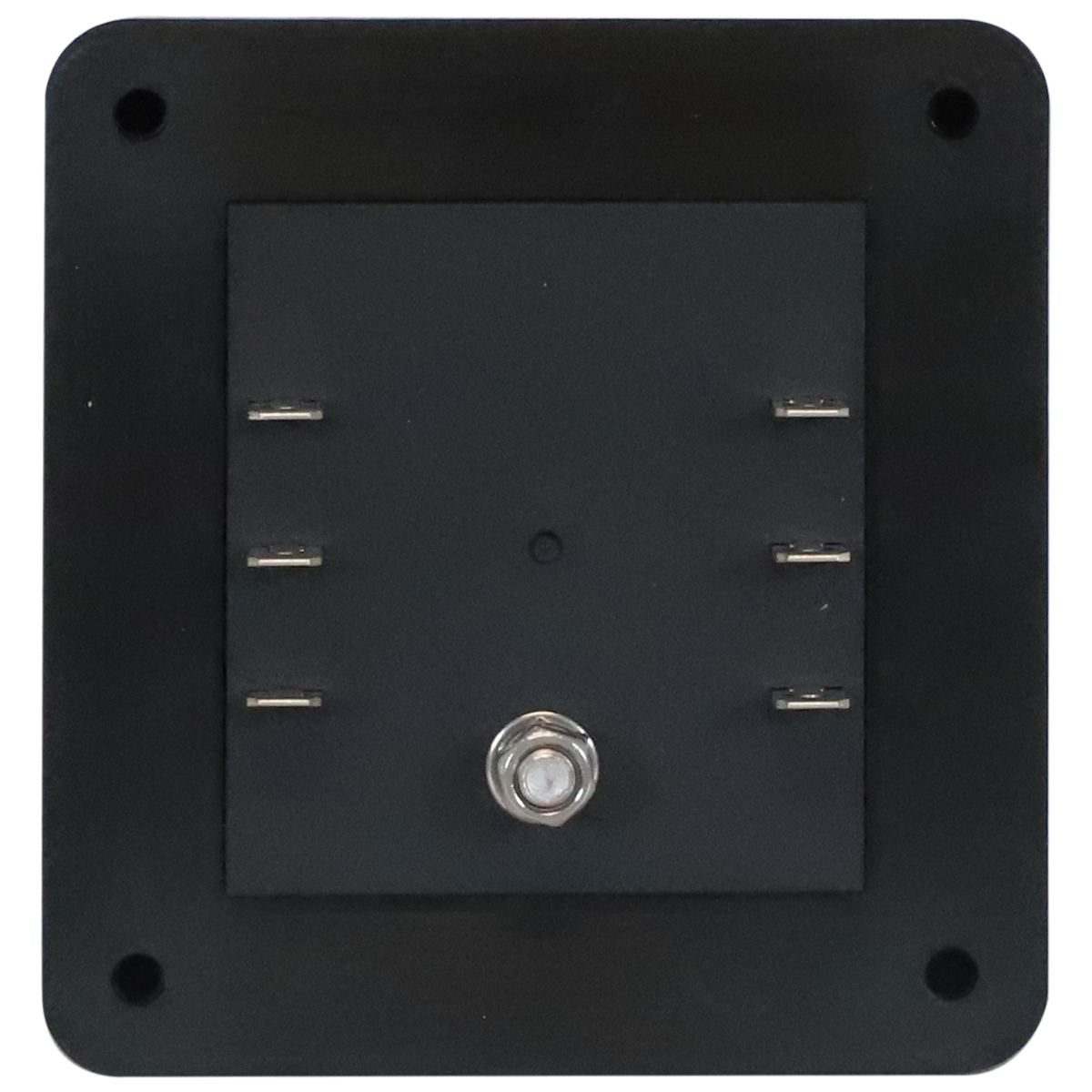

- Panel mount with rear connections and cover make this fuse block ideal for canopy installs.

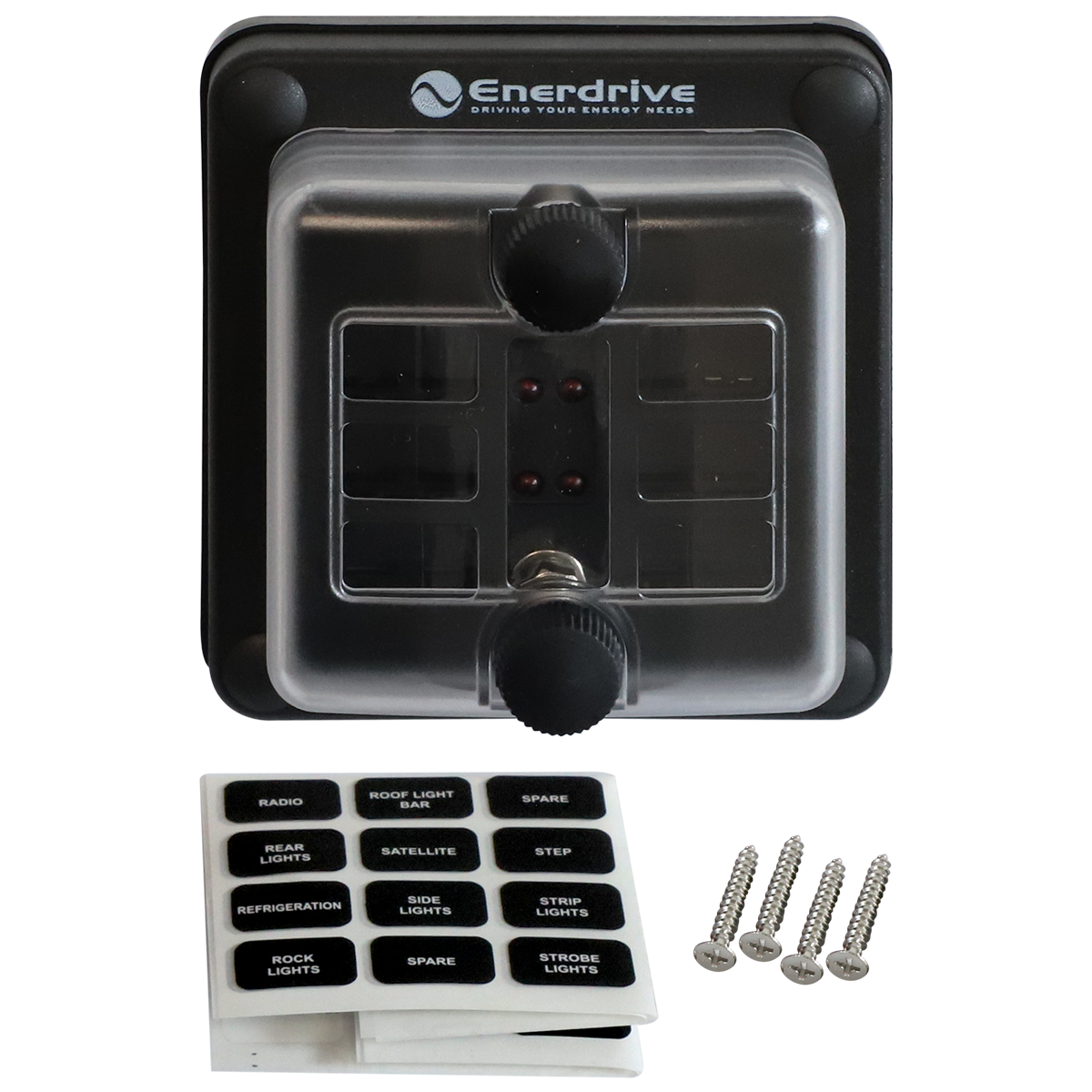

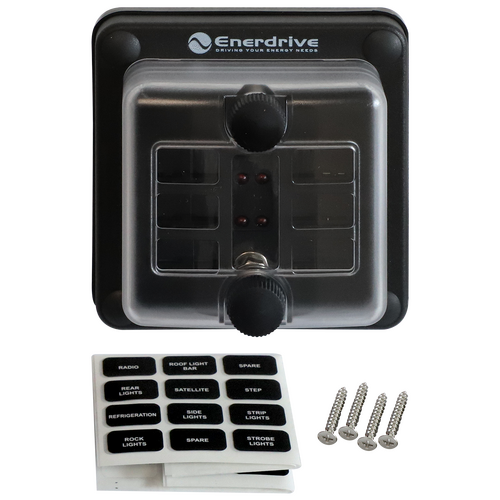

- Includes two label sets.
- Retail Packaging
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
|Maximum Amperage||100A per block / 20A per circuit|
|Maximum Voltage||32V DC|
|Mounting||#8 Screw (M4)|
|Positive Bus Input||#8-32 with Flat/Spring Washers|
|Positive Bus Output||Spade Terminals, Rear|
|Recommended Torque||24 in-lb (2.71 N.m)|
|Screw Terminal Torque||18 in-lb (2.03 Nm)|
|Screw Terminal Type||#8-32 Screws with captive star lock washer|
