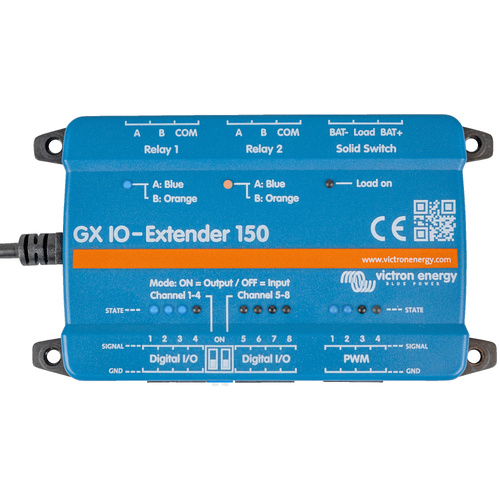

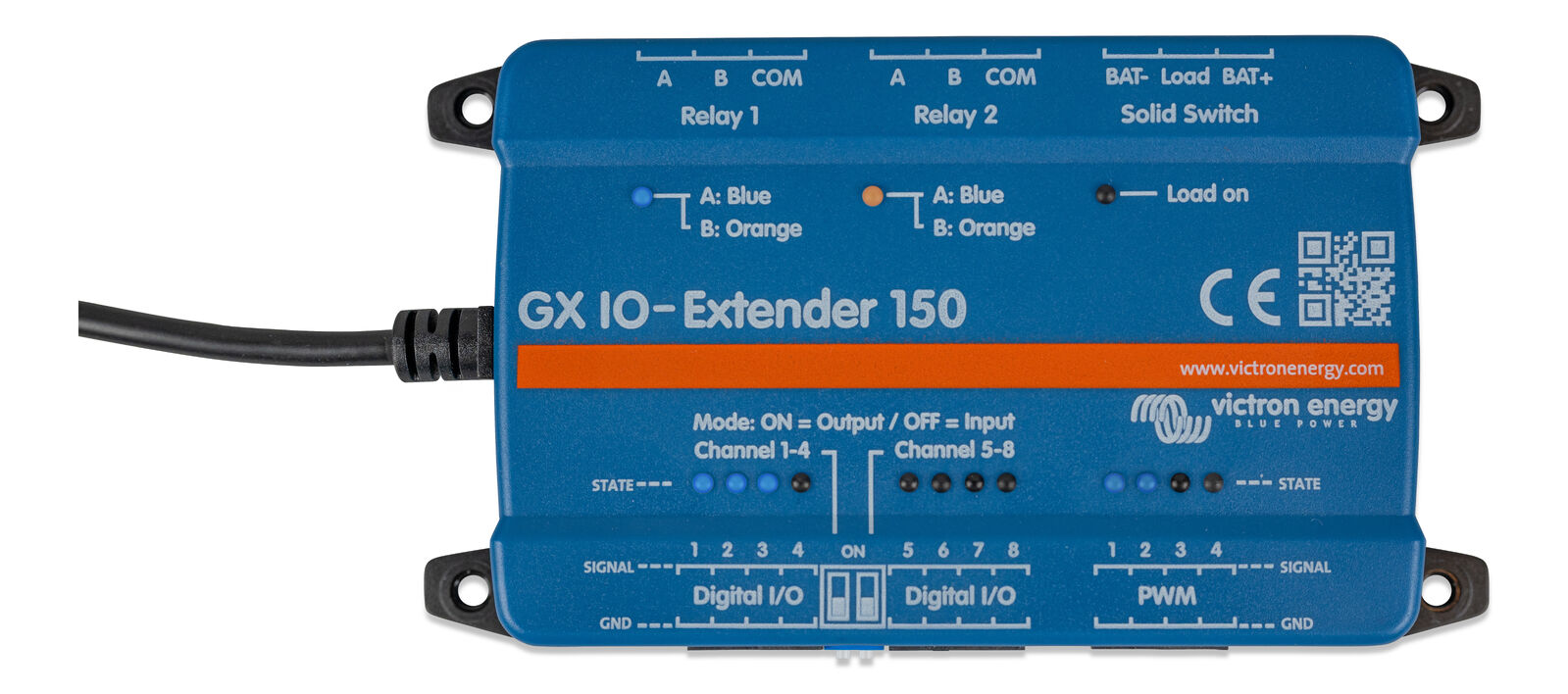

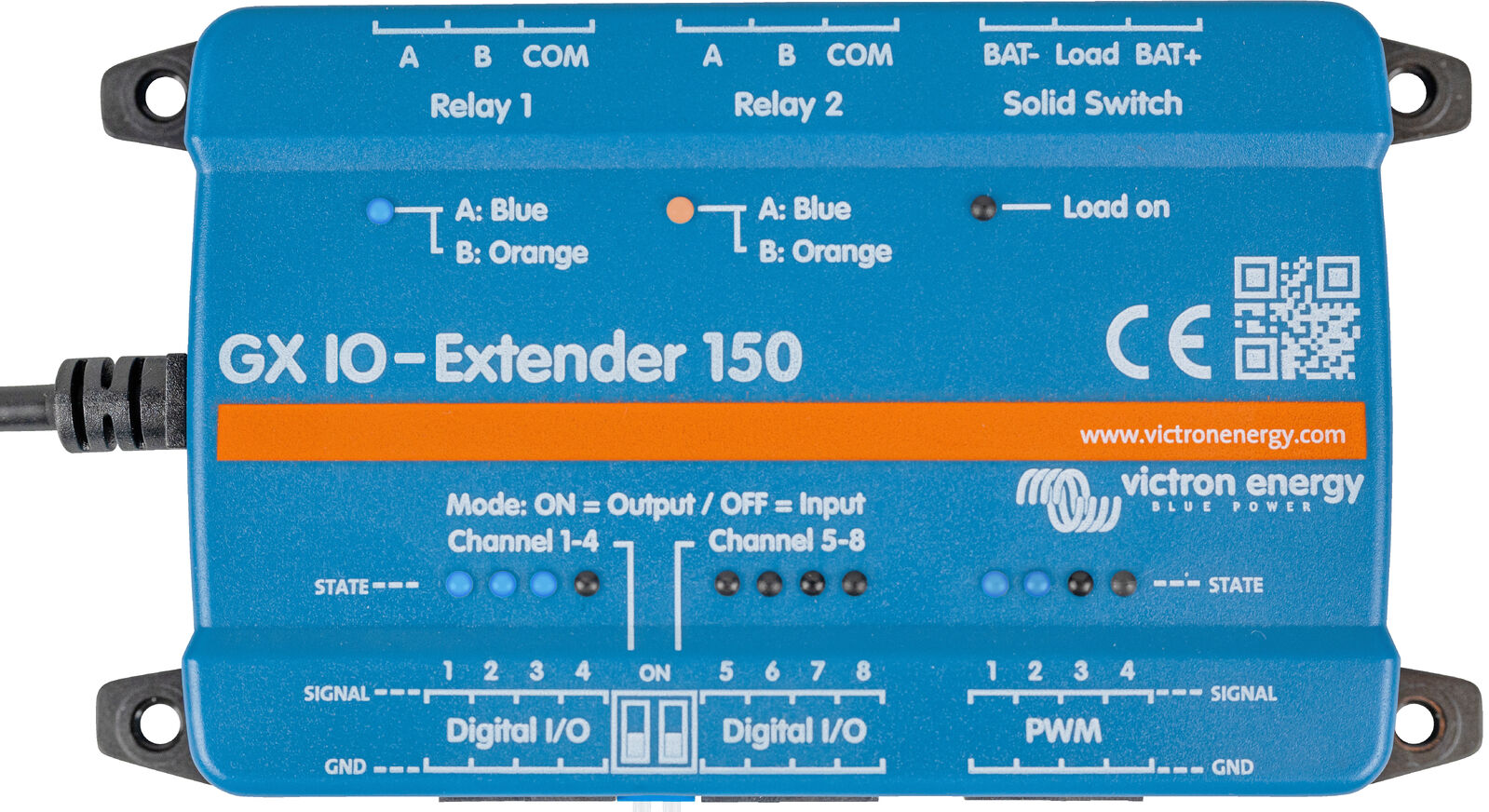

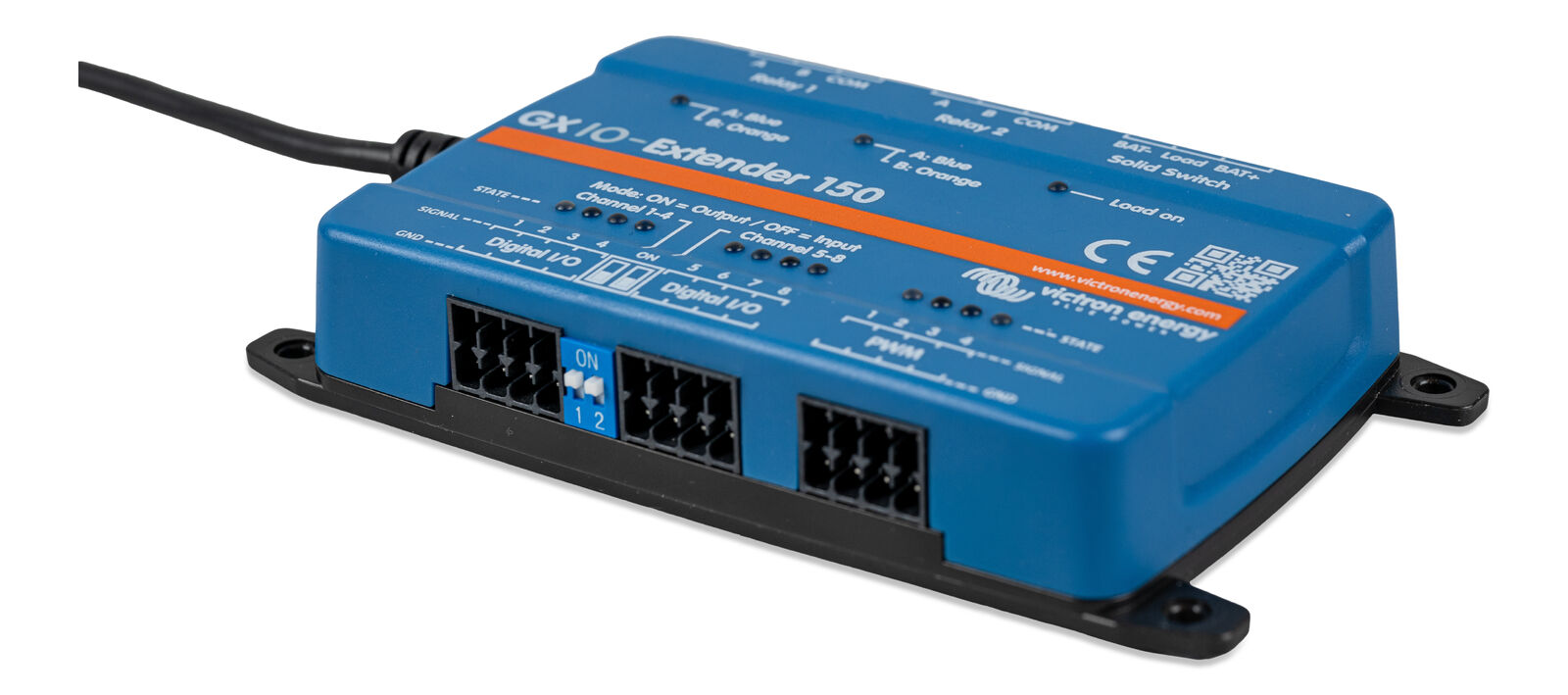

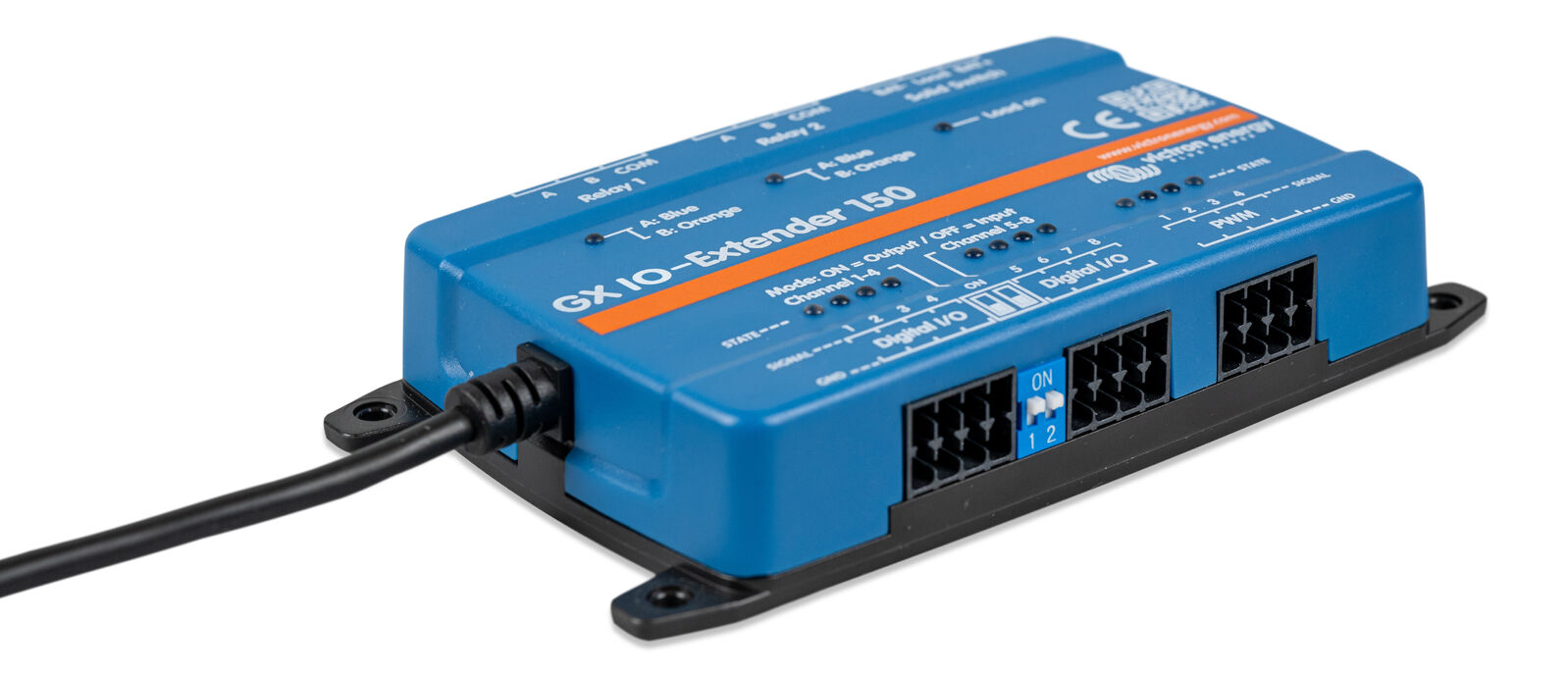

GX IO-Extender 150
Victron GX IO-Extender 150
The GX IO-Extender 150 enhances the input and output (I/O) capabilities of a GX device, enabling seamless integration with additional sensors, controls, and external devices. It connects via USB, which also serves as its power source, providing a simple and efficient expansion solution. The device can be controlled using Node-RED on the GX device as well as the Switch pane in the user interface
Features:

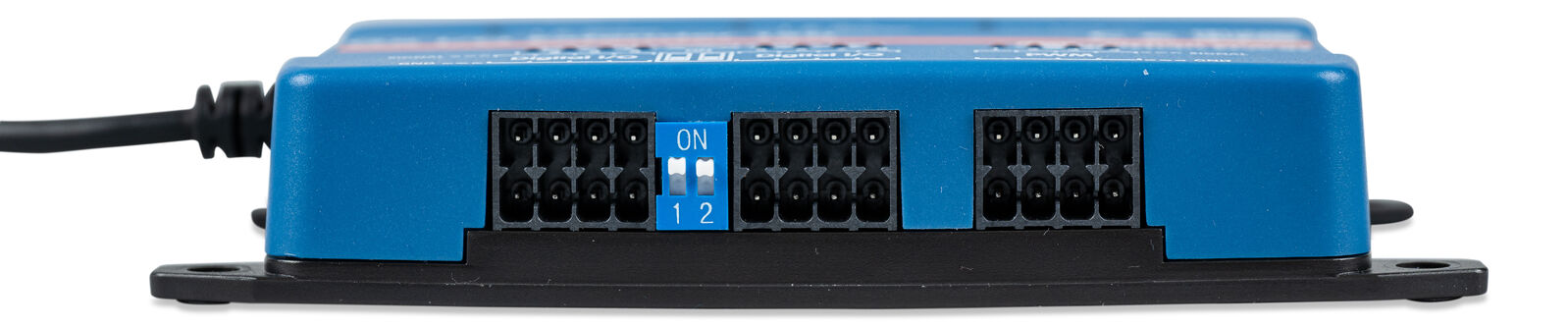

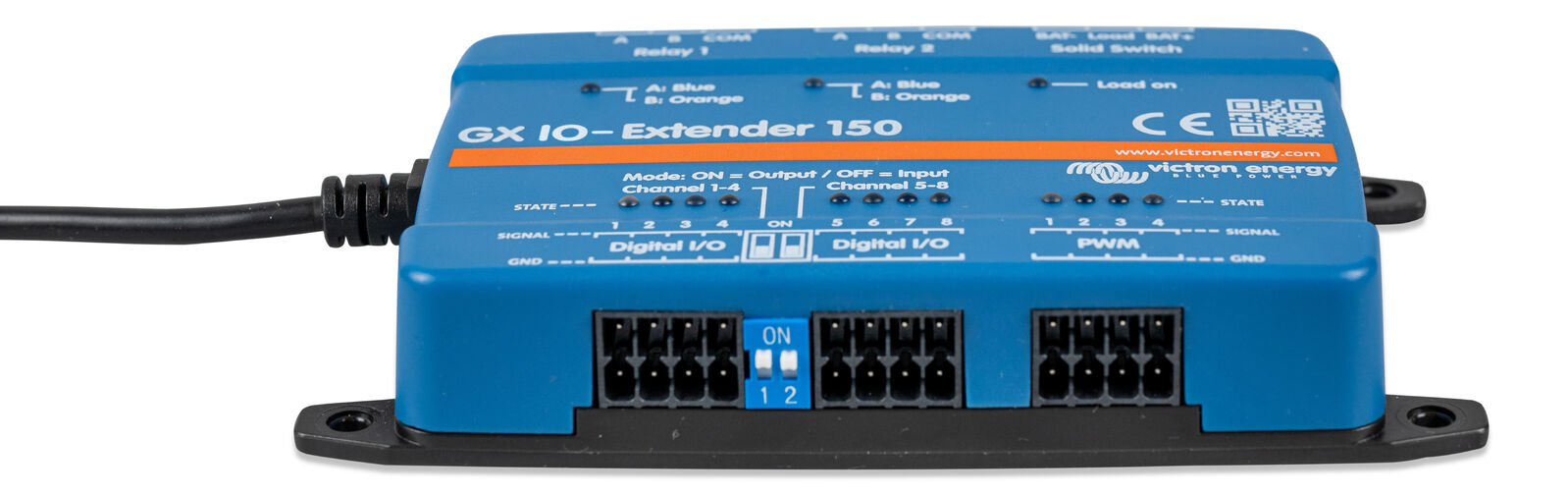

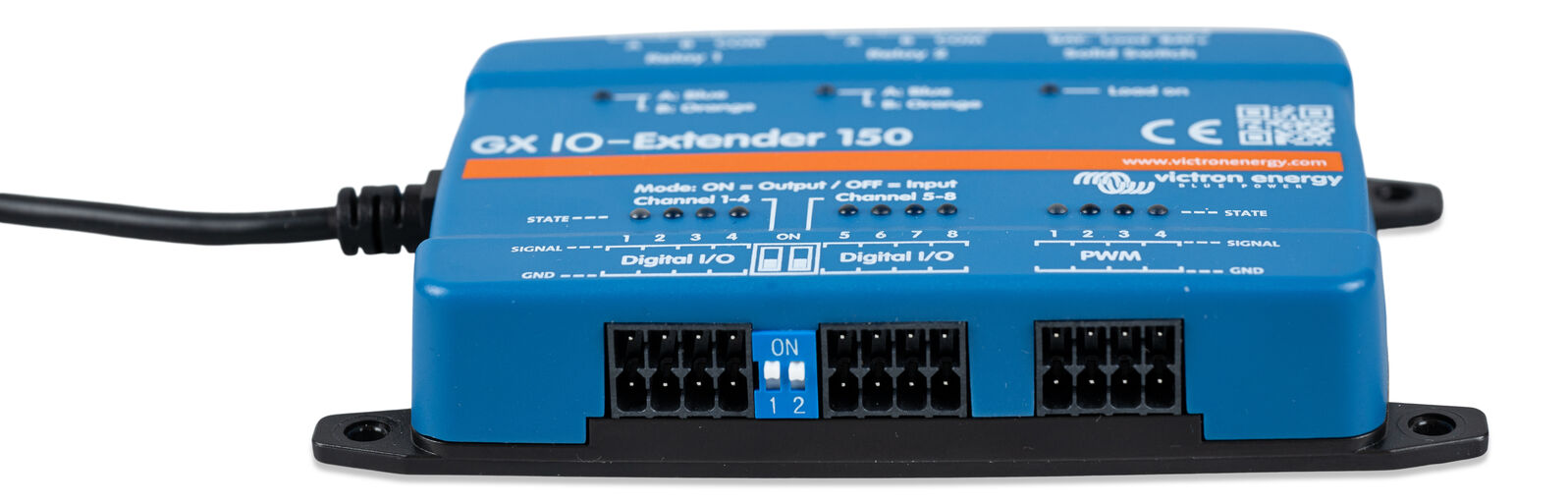

- 8 digital IOs, configurable as in two sets of four as inputs or outputs (via DIP switch)
- 4 PWM ports, 0 to 5V with 0,05 V steps for device regulation
- 2 latching relays that maintain their state even if the power is lost
- 1 solid switch with bat-, load, and bat+ connections for switching requirements
The plug-and-play USB connectivity makes installation effortless. The GX IO-Extender 150 is simply plugged into an available USB port on the GX device and the inputs/outputs, PWMs and relays immediately become available to the system.
Whether you're managing a complex off-grid solar installation, a marine electrical system, or an industrial backup power solution, the GX IO-Extender 150 expands your ability to deliver on specific requirements:
- Monitor additional sensors and equipment
- Control external devices with precision
- Automate complex system responses
- Implement sophisticated control logic
The GX IO-Extender is not intended to be used for general load switching, but rather for signalling. The relays and solid switch have low current ratings that vary based on the voltage being used. Compatible products like those from Energy Solutions (UK), Garmin (USA) and Safiery, and others will be better suited for general switching applications.
| Supply voltage | Powered by USB | |
|---|---|---|
| Power consumption | < 100 mW when idle, max, 1 W (< 200 mA @ 5 V) | |
| Mounting | Wall or DIN-rail (by using adapter accessory) | |
| Digital I/Os (isolated from USB) |
8 I/Os with LEDs indicating state, configurable as 8 inputs, 8 outputs or 4 inputs + 4 outputs |
|
|
Inputs: 3,8 – 5,5 V, Outputs: 5 V, 4 mA max The digital I/Os are capable to handle voltages up to 5,5 V. Any overvoltage can cause permanent damage |
||
| PWM output (isolated from USB) |
4 channels with LEDs indicating the state Voltage level: 5 V, Precision: 8 bits @ 1,5625 kHz |
|

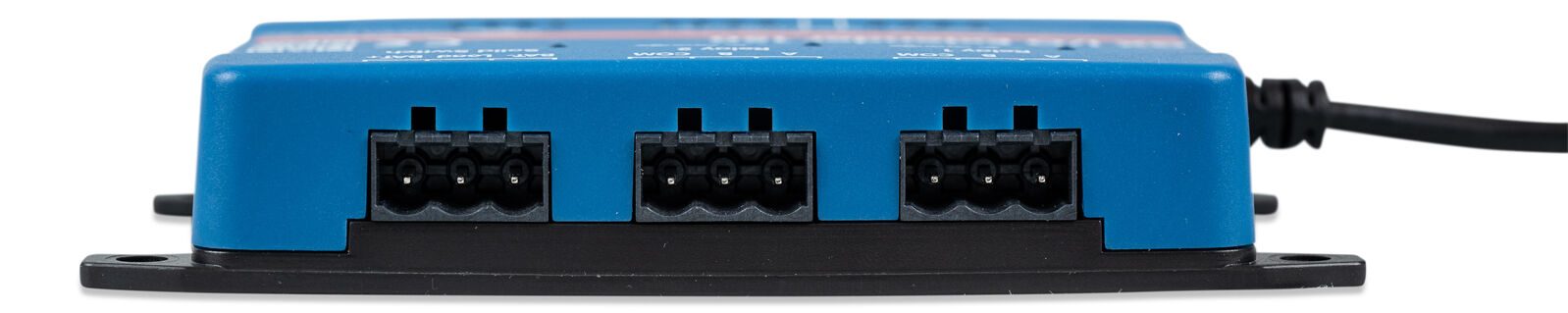

| Latching relays (potential free) | 2x latching relays (bi-stable) with LEDs indicating the state | |
|
Contact rating (resistive load): DC: 3 A @ 30 V, 1 A @ 60 V, 0,3 A @ 220 V (90 W max) AC: 2 A @ 60 V, 1 A @ 125 V, 0,5 A @ 250 V (125VA max) |
||
| Solid switch (isolated from USB) | Max battery Voltage: | 70 VDC |
| Max load Current | 4 A | |
| Max capacitive Load: |
Vbat up to 15 V: 1000 µF 15 V < Vbat < 30 V: 400 µF 30 V < Vbat < 70 V: 50 µF |
|
| Max inductive Load |
Up to 1 A: 1000 mH 1 A < | < 2 A: 100 mH More than 2 A: 10 mH |
|
| Operating temperature range | -20 °C to +50 °C | |
| Outer dimensions (h x w x d) | 123 x 67 x 23 mm | |
| Weight | 0.17 kg | |
| SKU | 8719076062882 |
| Barcode # | 8719076062882 |
| Brand | Victron |
| Shipping Weight | 0.2500kg |
| Shipping Width | 0.145m |
| Shipping Height | 0.055m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000877250m3 |
