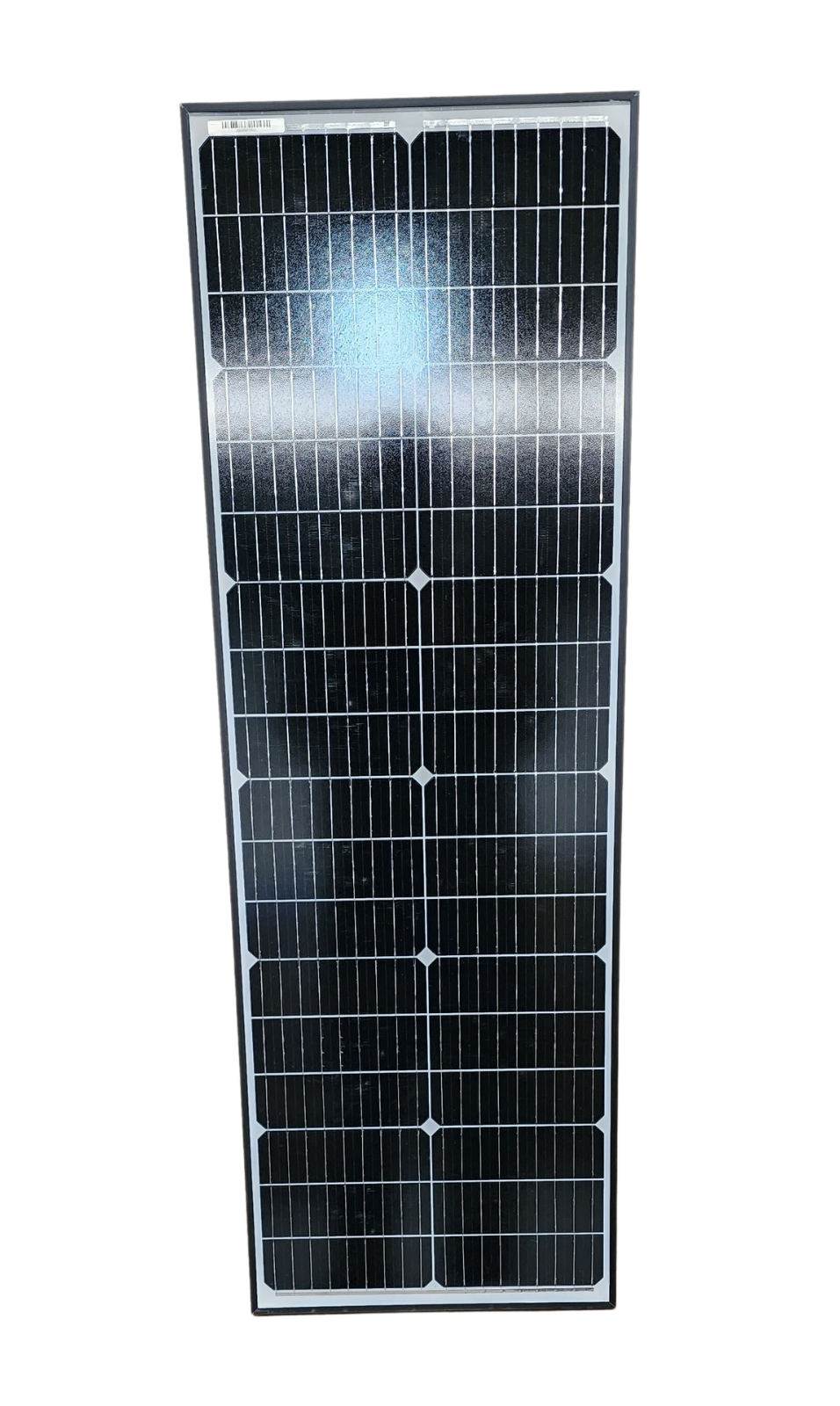

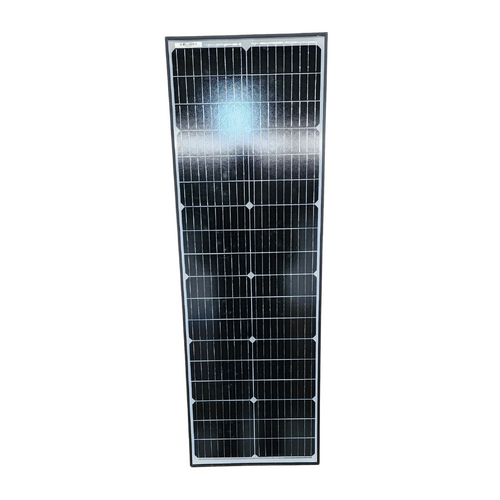

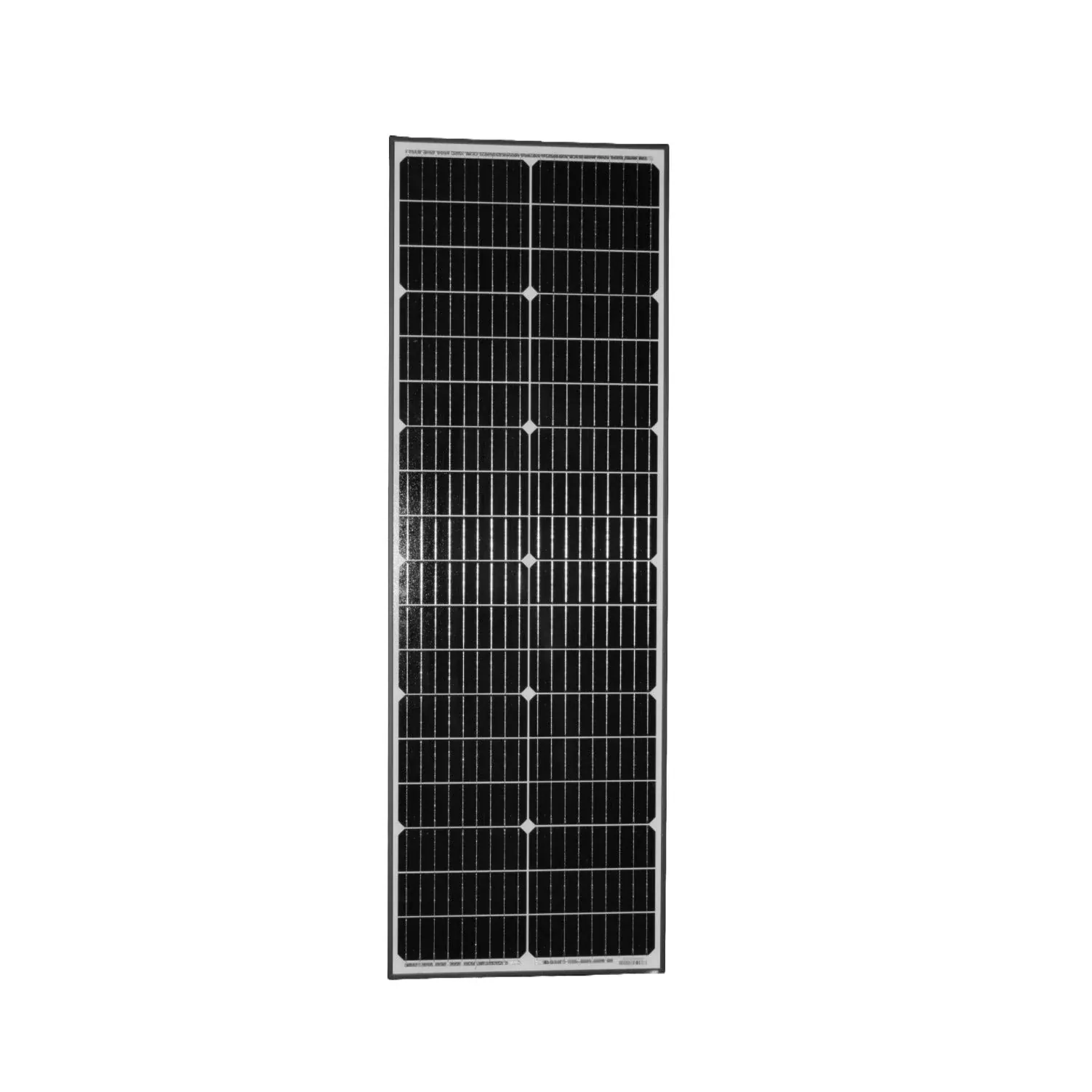

Exotronic 12v 70w Solar Panel (Narrow)
Exotronic 12v 70w Solar Panel 1070 x 360 x 25mm - 4.6KG
Solar Panel Exotronic - 70 Watt (Narrow) - 1070 x 360 x 25mm - 4.6KG
The Exotronic range of panels has been meticulously designed to harmonize voltages across all sizes, enabling all modules to be wired in parallel. This harmonization facilitates optimal compatibility and ease of installation.
- Maximize Solar Efficiency with M6 Mono-PERC Solar Panels - Leverage the power of advanced solar technology with M6 Mono-PERC solar panels, offering an efficiency rate of 23% and equipped with square cut cells. Incorporating a modern 9-wire bus-bar low-loss design, these panels deliver high efficiency and a positive power tolerance, demonstrating a competitive edge over traditional counterparts.

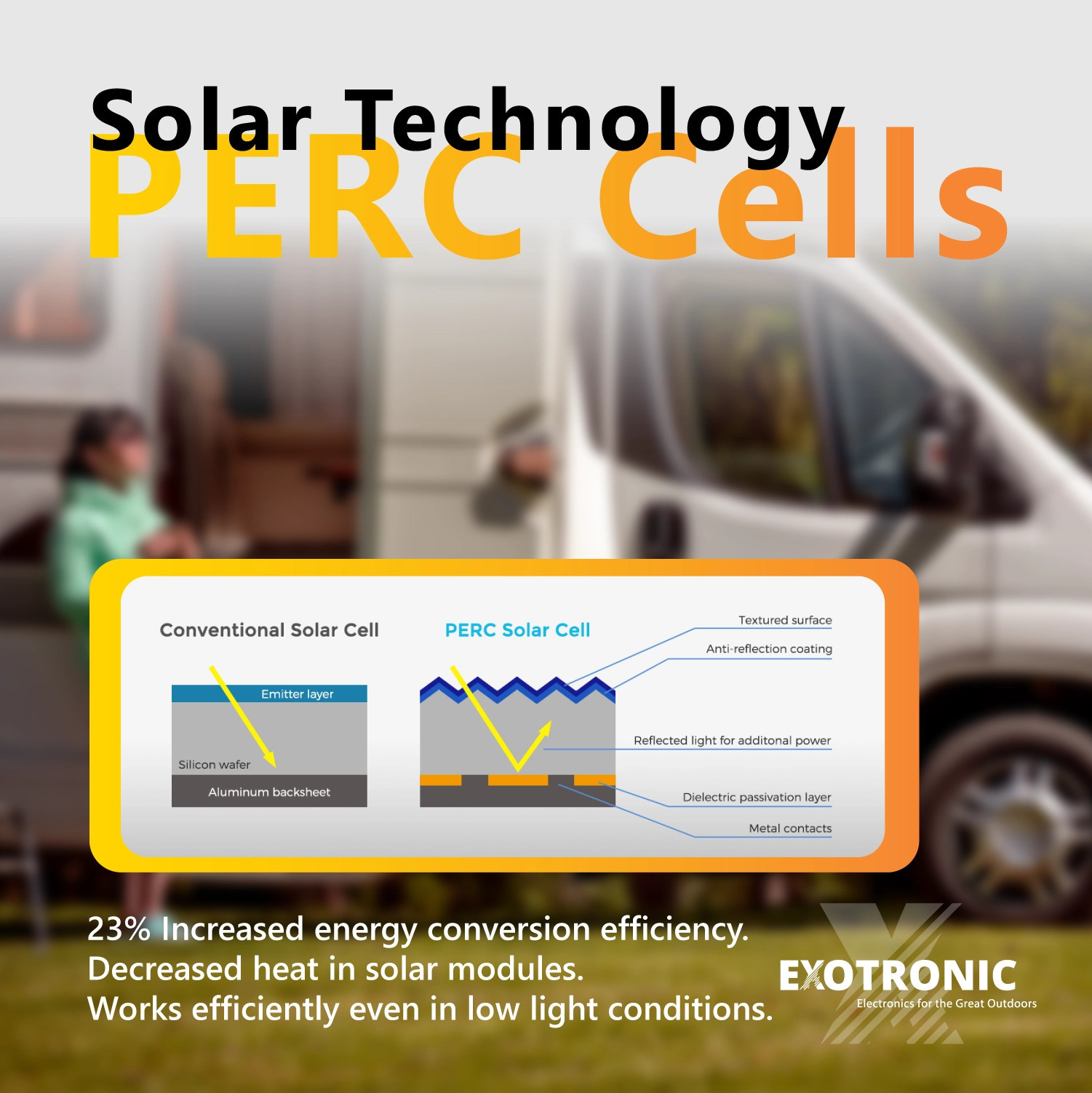

- PERC Cells: Power and Efficiency Redefined - The inclusion of Passivated Emitter and Rear Cells (PERC) technology enhances the overall performance of these panels. In contrast to standard monocrystalline silicone designs, PERC cells exhibit improved low light performance by effectively utilizing the light that would otherwise pass through the cell, converting it back into electricity.
- Optimized Power Output with 9-Wire Busbar Design - The cutting-edge 9-wire busbar design is pivotal in enhancing the performance of our solar panels. It effectively mitigates the resistance of the module and evenly distributes current across the entire surface of the cells. This sophisticated design significantly minimizes power losses within the module and curtails uneven cell heating and hot spots.
Robust Construction Paired with Sophisticated Aesthetics - The panels feature a durable anodised aluminium frame, fortified by a black protective coating and a streamlined 25mm profile. This refined design reduces the module's weight without compromising its structural integrity, effectively protecting the module from vibrational and torsional stresses. The use of tempered, high transmissivity, low-iron glass ensures superior low light performance and high resistance to impact.
|OPEN CIRCUIT (VOC):||23.8V|
|SHORT CIRCUIT CURRENT (ISC):||3.77A|
|PEAK POWER VOLTAGE (VMP):||19.4V|
|PEAK POWER CURRENT (IMP):||3.61A|

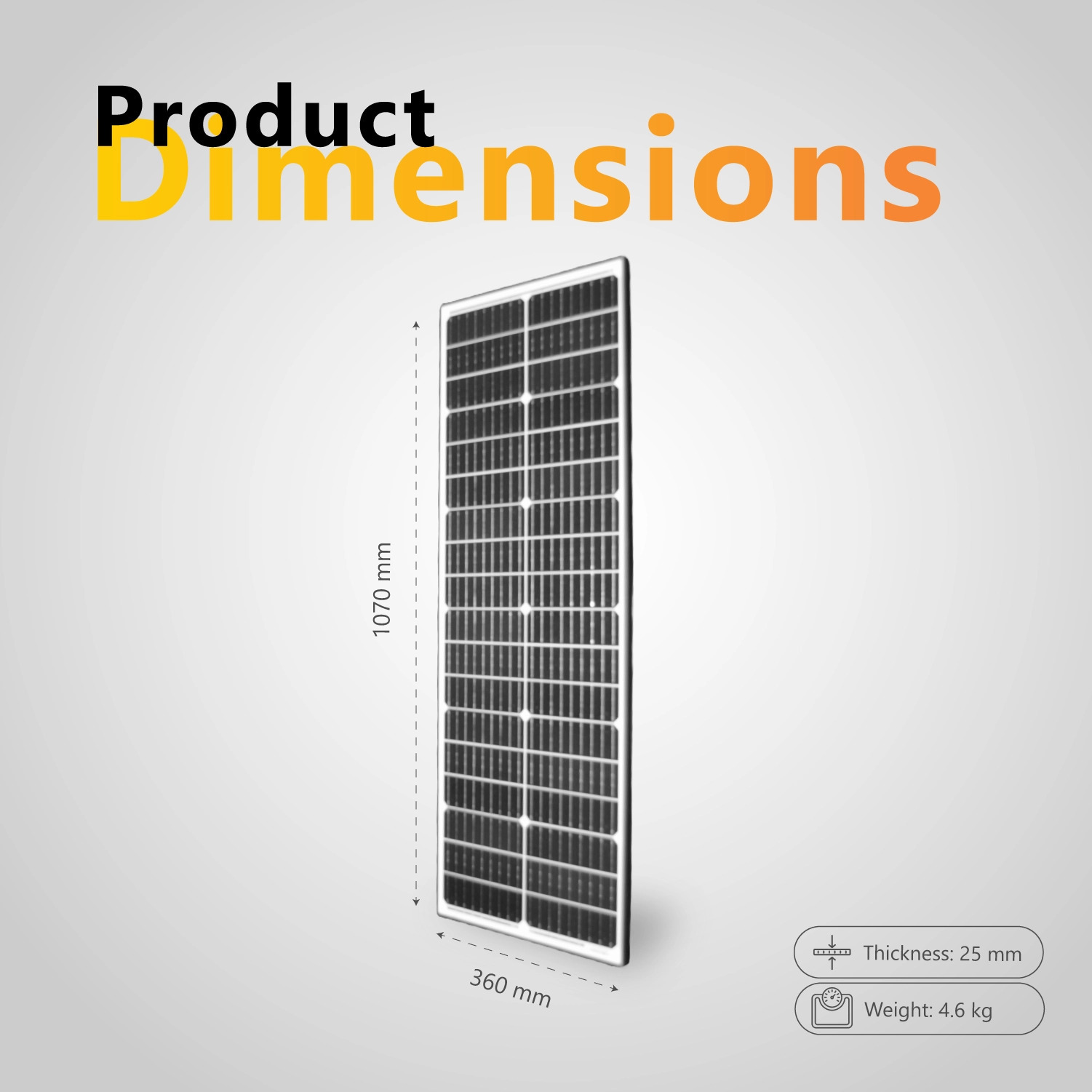

|PANEL DIMENSIONS (MM):||1070 x 360 x 25mm|
|GROSS WEIGHT (KG):||4.6KG|
